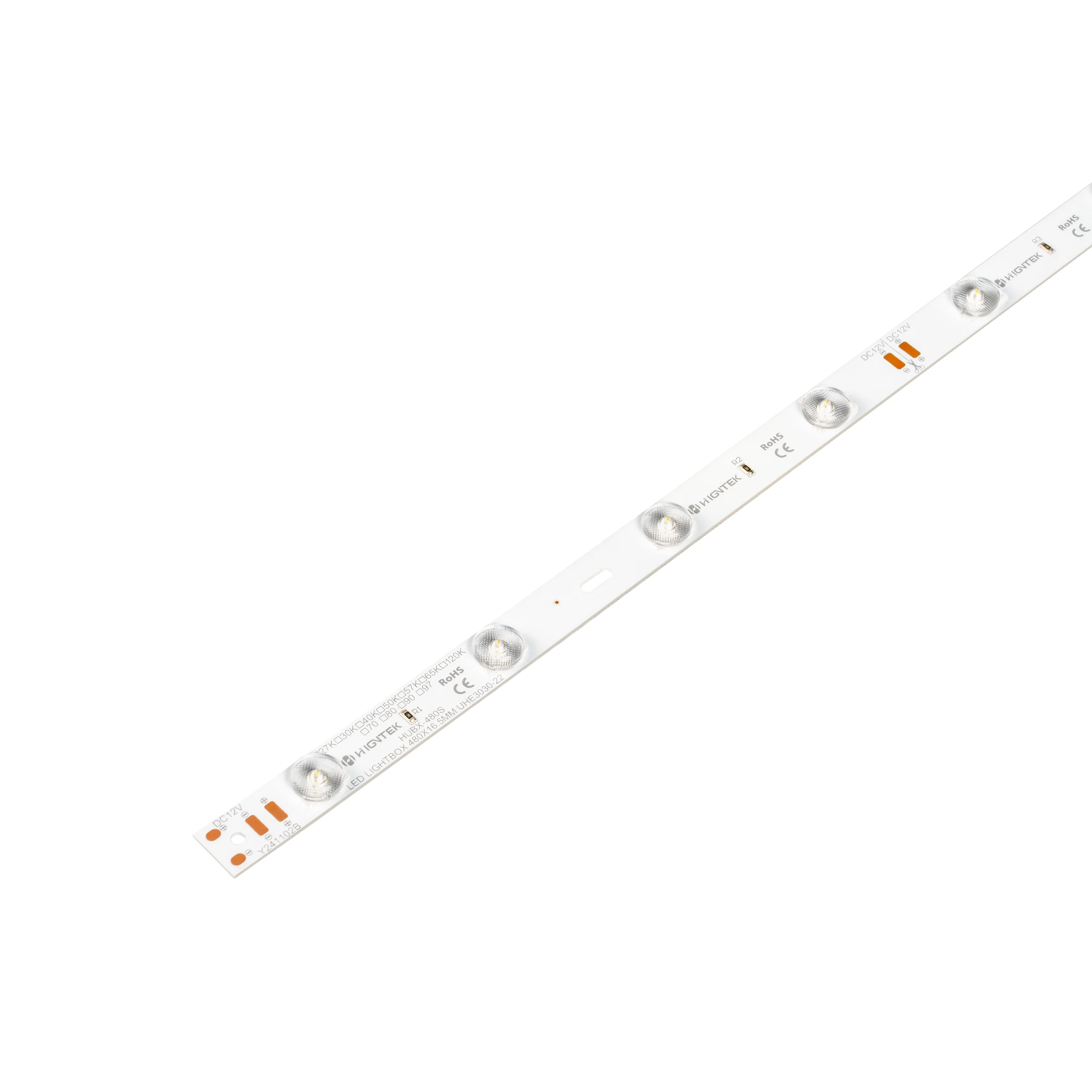

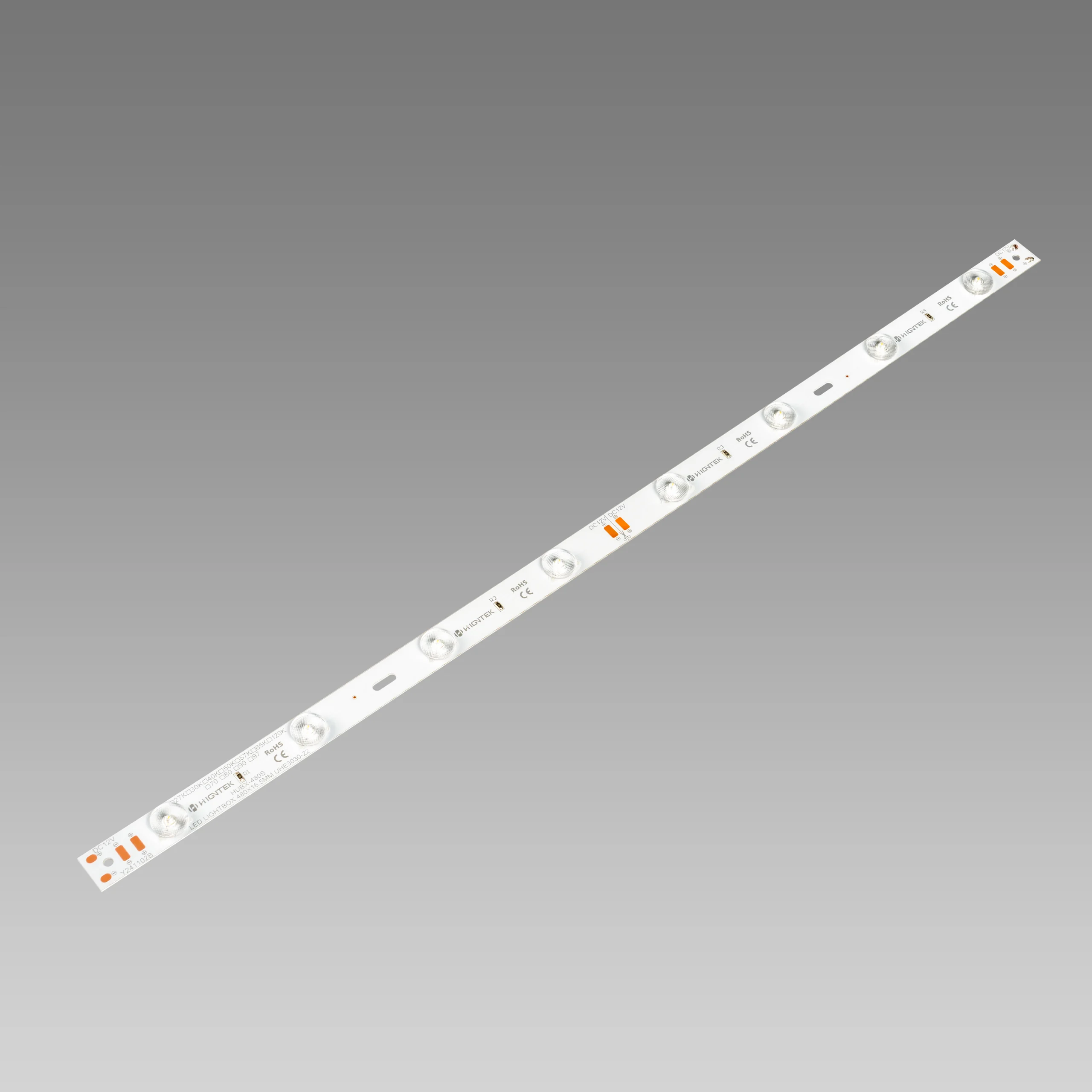

HIGNTEK HUB-480SA-012008



is a lighting-optimized LED strip module specially designed for light boxes. With a compact size of 480 mm × 16.5 mm, it features 8 high-efficacy UHE-3030 LED chips, delivering ultra-high brightness and luminous efficiency for uniform, brilliant illumination.



Features And Benefits



  • Input Voltage: DC12V                                       Typical Applications:
  • Powe: 4W                                                           Light box
  • Luminous Flux: Up to 784 lm                            Soft membrane smallpox
  • Luminous Efficacy: Up to 196 lm/W
  • CCK: 2700K–6500K
  • Color Rendering Index: 70–80
  • Beam Angle: 170°
  • IP Grade: IP20
  • CE, ROHS, ERP compliance
  • 5-year limited guarantee

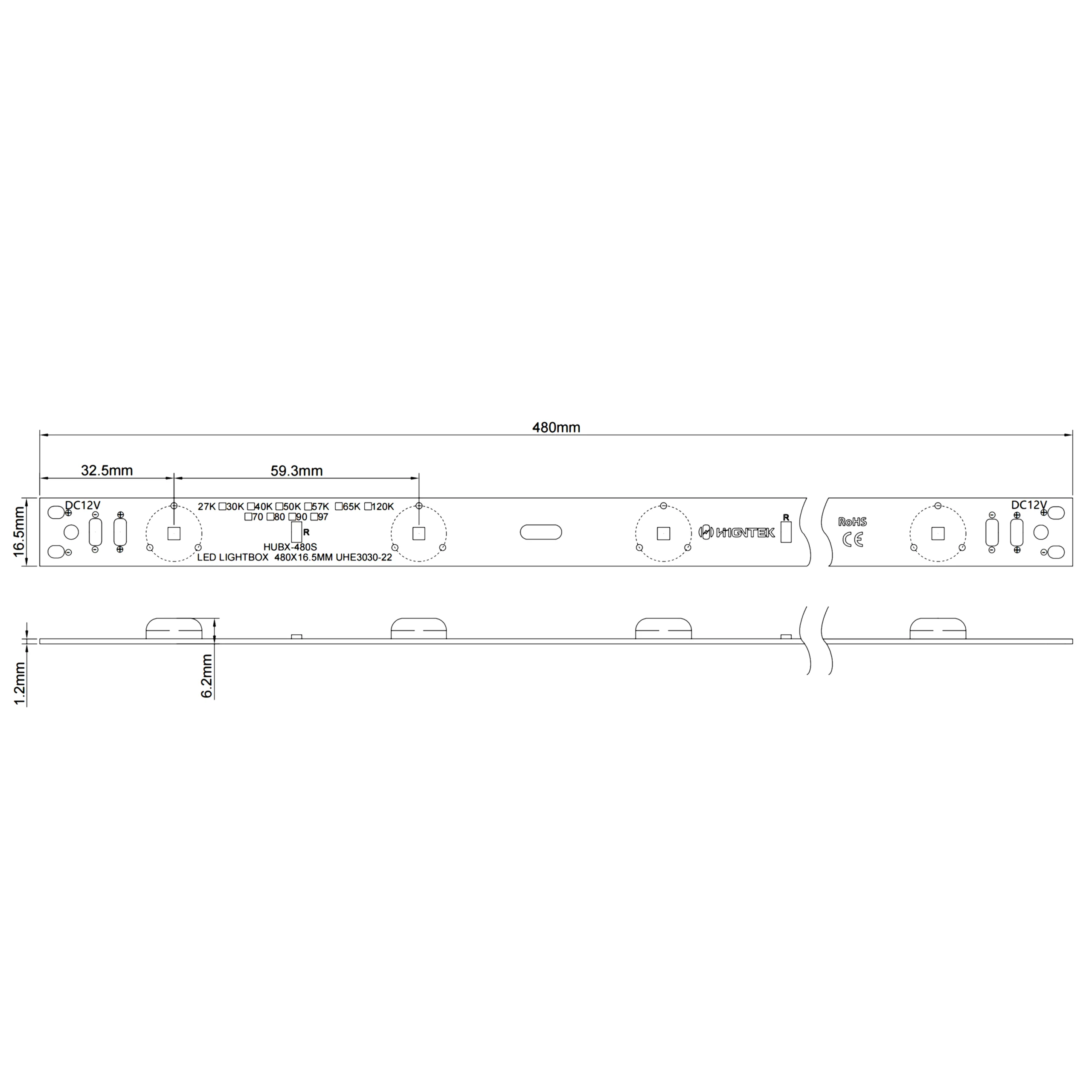

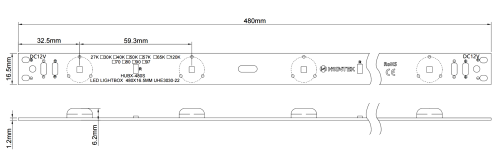

Dimensions (All Dimensions In Mm).











Product Performance



The performance of HIGNTEK HUB-480SA-012008 is measured under the specified test current at Tj = 25 °C.

Type CCT（K） CRI (Ra) Current（mA） Luminous Flux（lm） Luminous Flux（LM/W）
HUB-480SA-012008 2700K–6500K 70 167 721–784 180–196
HUB-480SA-012008 2700K–6500K 80 167 671–729 168–182
  1. Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
  2. Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.





Parameter Rating
MAX Power 8 W
MAX Forward Current 300 mA
Operating Temperature -40 to 65℃
