HIGNTEK HUO-121SA-024016

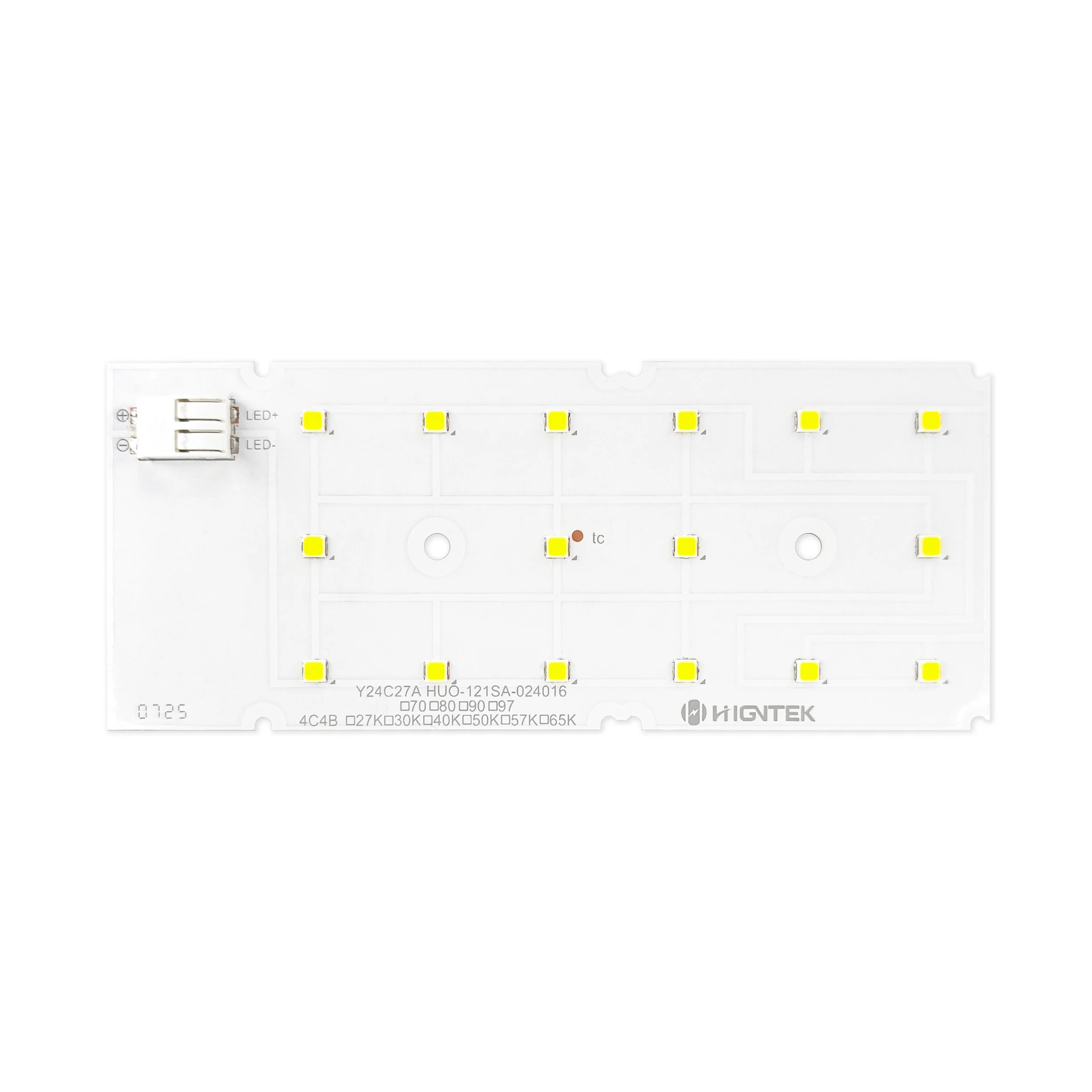

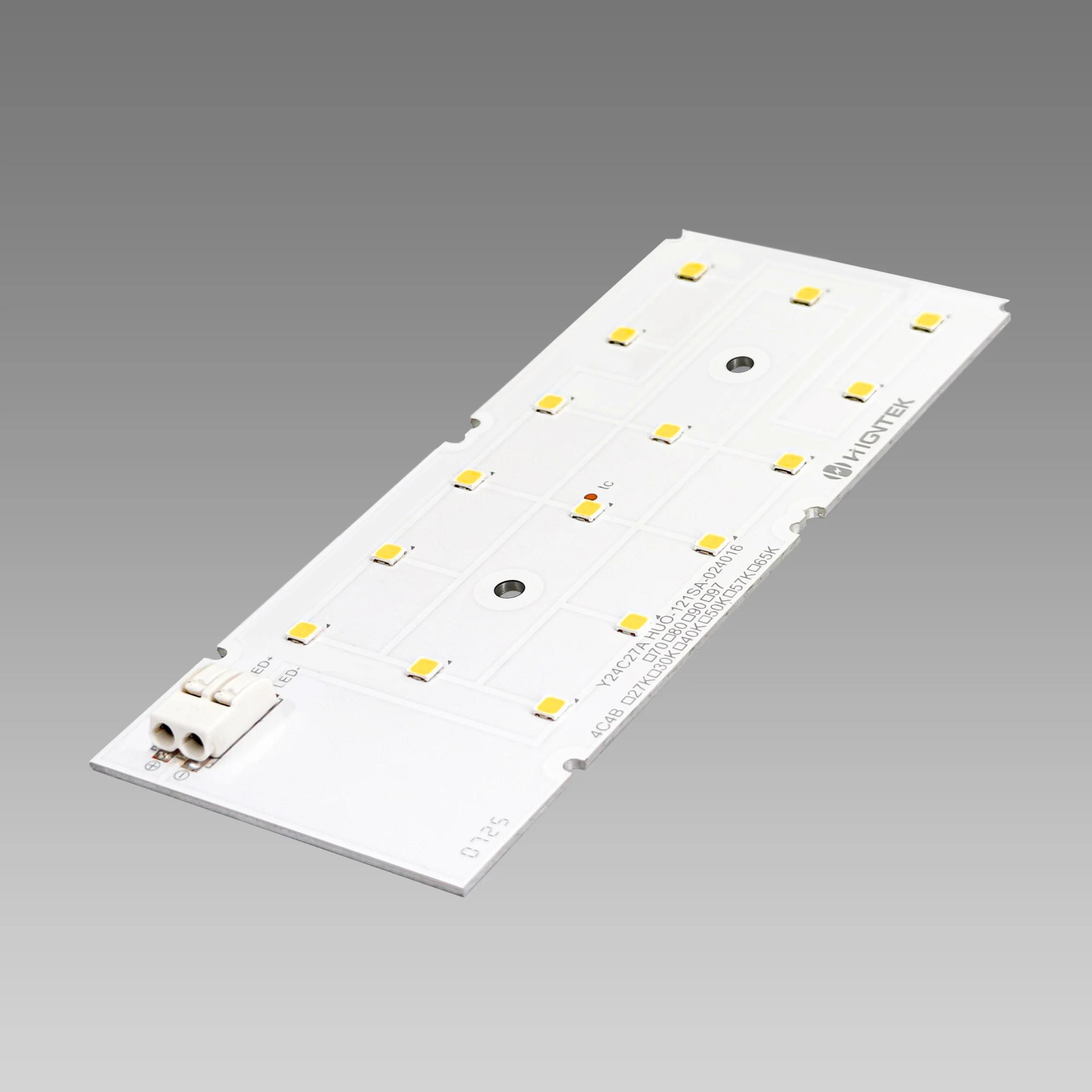

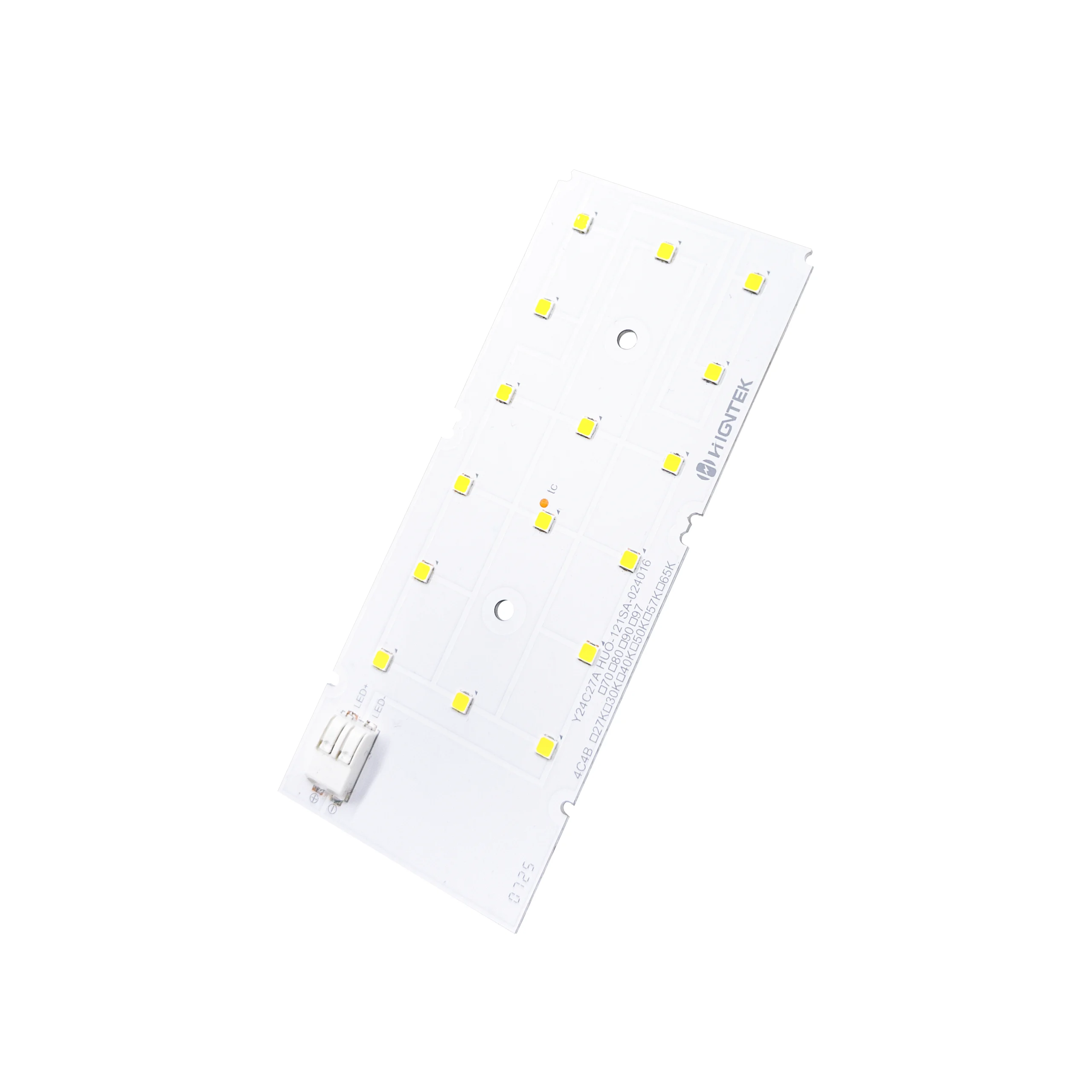

The module measures 49.5 × 121.4 mm and features 16 high-efficacy 3030 LEDs, delivering excellent brightness while maintaining cost efficiency. The evenly arranged LEDs ensure uniform light distribution and consistent color quality. At the rated current and Tp = 25 °C, the module achieves a luminous flux of approximately 2430 lm. It is a high-performance LED module engineered for demanding outdoor illumination, including street lights, tunnel lighting, and industrial area applications.



Features And Benefits



  • Input Voltage: 21.6-24V                                     Typical Applications:
  • Powe: 9-24W                                                      Street light
  • Luminous Efficacy: Up to 209 lm/W                  Flood and area lighting
  • CCK: 2700K–6500K                                           Tunnel lighting
  • Color Rendering Index: 70–80
  • Beam Angle: 120°
  • IP Grade: IP20
  • Push-in connectors enabling automated wiring
  • Long life-time: >50,000 hours
  • CE, ROHS, ERP compliance
  • 5-year limited guarantee

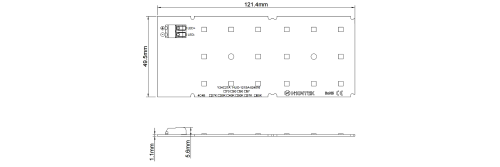

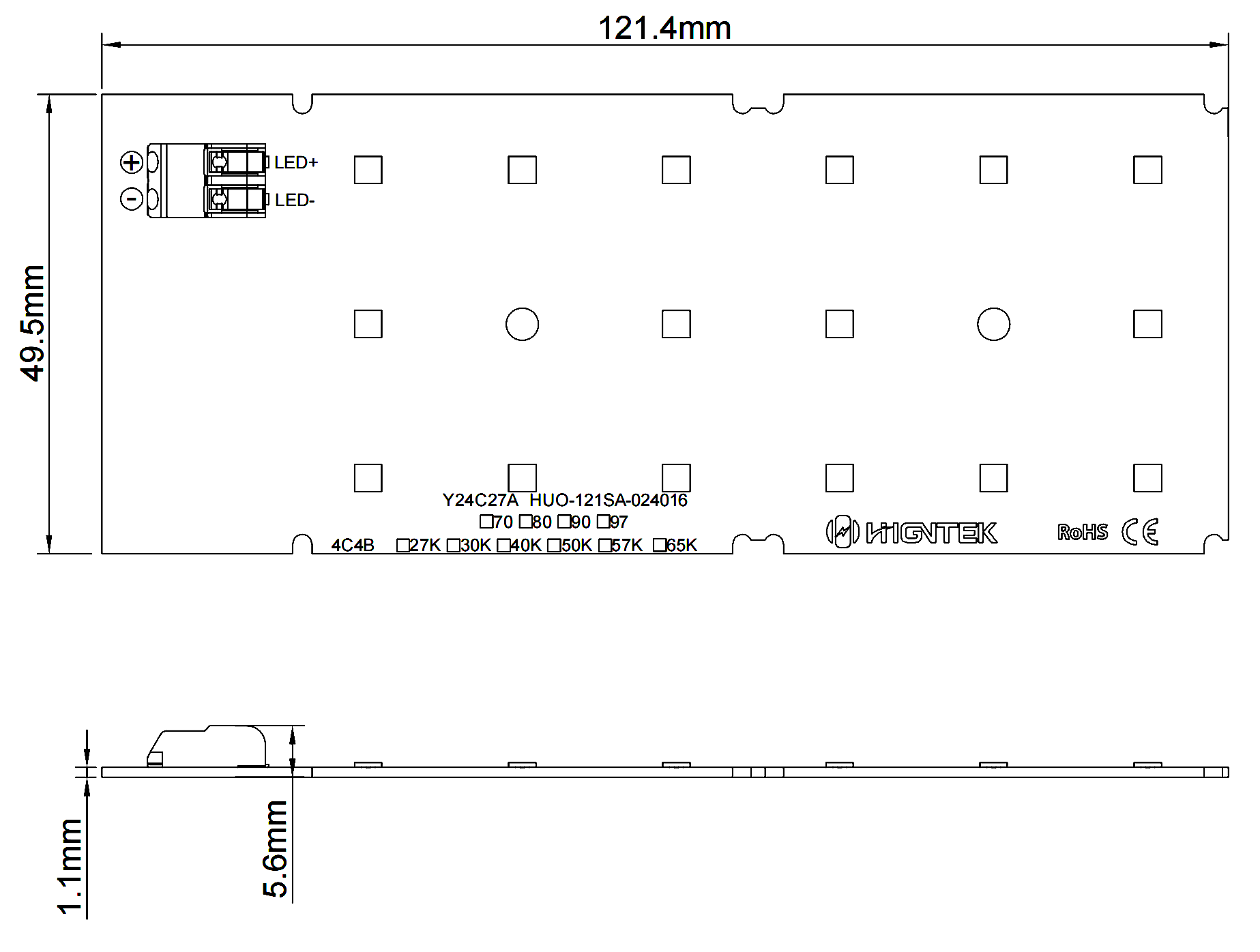

Dimensions (All Dimensions In Mm).









Product Performance



The performance of HIGNTEK HUO-121SA-024016 is measured under the specified test current at Tj = 25 °C.

Type CCT (K) CRI (Ra) Current (mA) Luminous Flux (lm) Forward Voltage (V) Power (W) Luminous Efficiency (lm/W)
HUO-121SA-024016 2700K–6500K 70 424 1827-1965 22.2 9.41 194–209
HUL-121SA-024016 2700K–6500K 70 530 2254-2424 22.5 11.93 189–203
HUL-121SA-024016 2700K–6500K 70 1050 4044–4348 23.9 24.78 163–175
HUL-121SA-024016 2700K–6500K 80 424 1699-1827 22.2 9.41 181–194
HUL-121SA-024016 2700K–6500K 80 530 2096–2254 22.5 11.93 176–189
HUL-121SA-024016 2700K–6500K 80 1050 3761–4044 23.9 24.78 152–163
  1. Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
  2. Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.





Parameter Rating
MAX Power 24 W
MAX Forward Current 1050 mA
Operating Temperature -40 to 85℃





Primary Application
