223lm/W High-Efficacy Linear Modules 20×70mm (250lm)

HIGNTEK HUL-070SA-006006

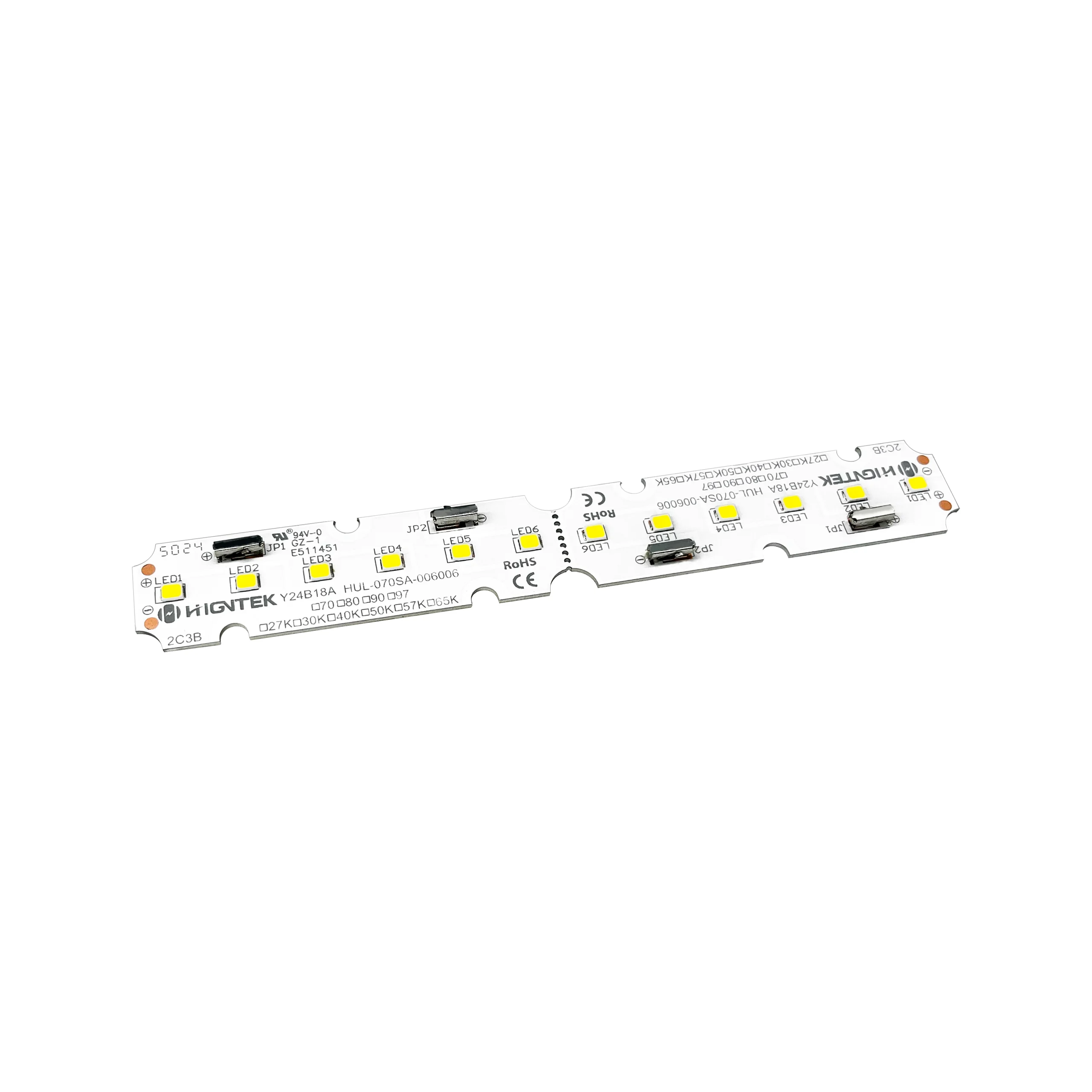

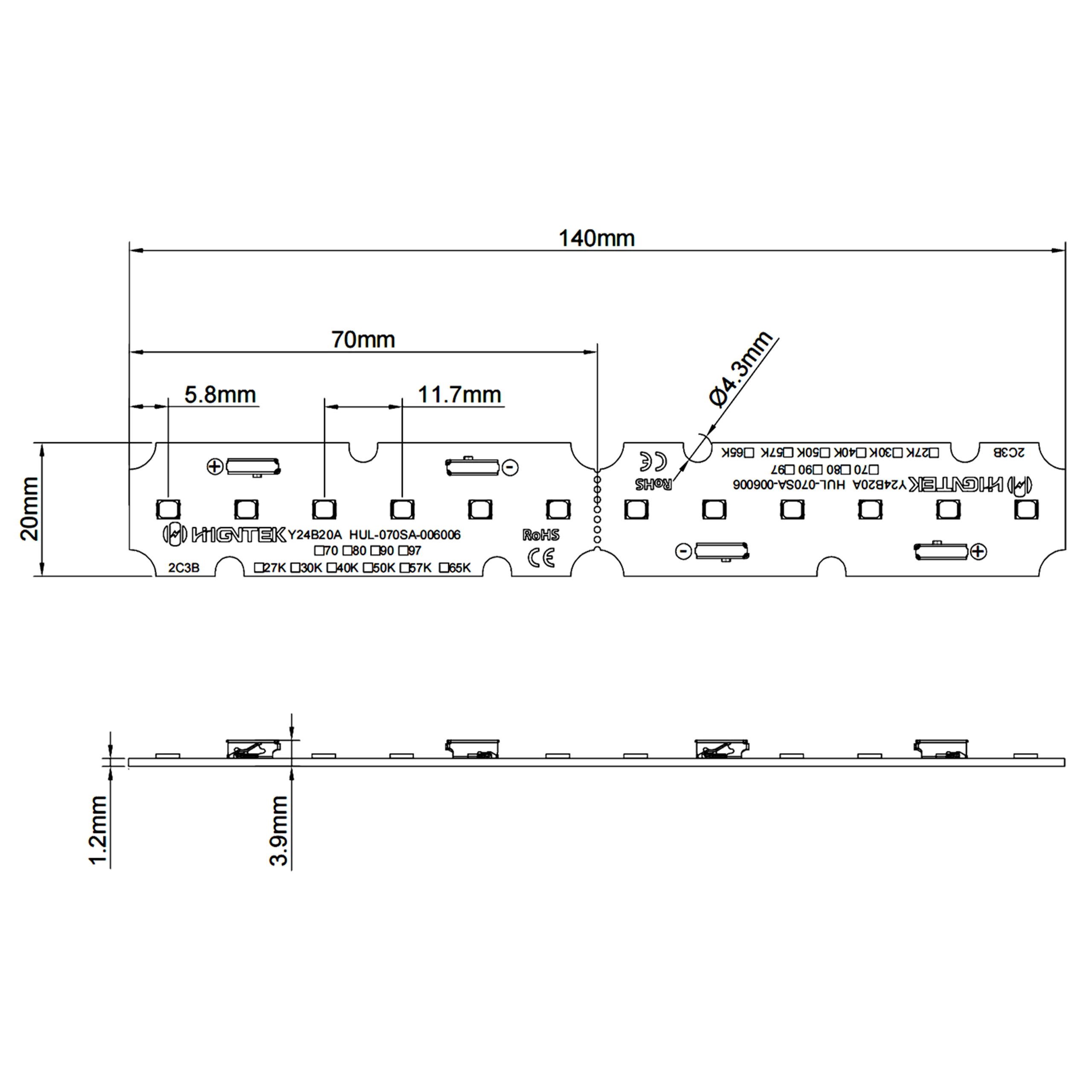

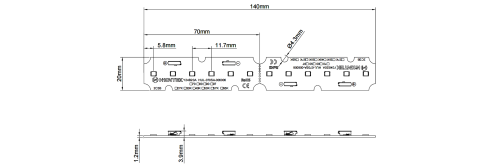

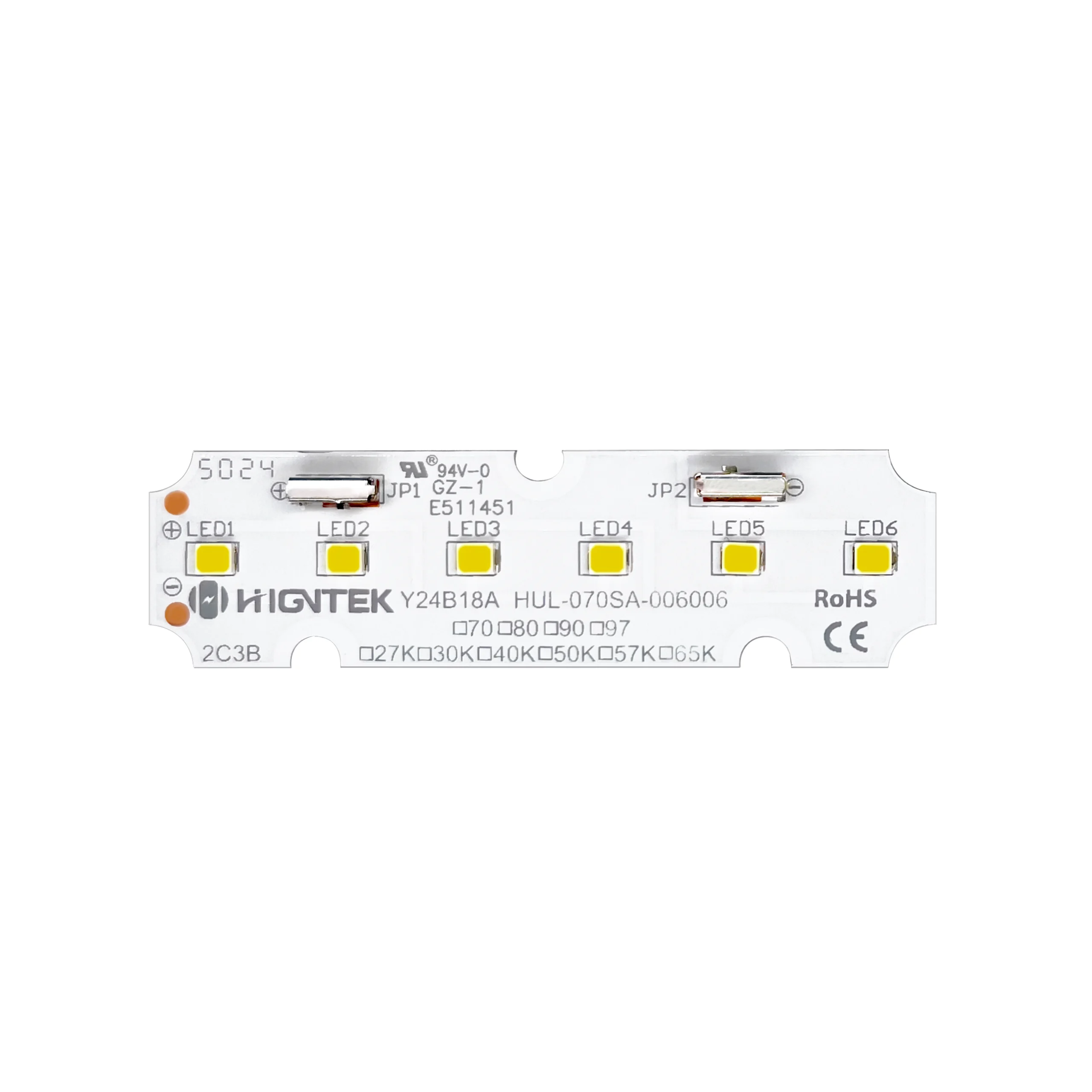

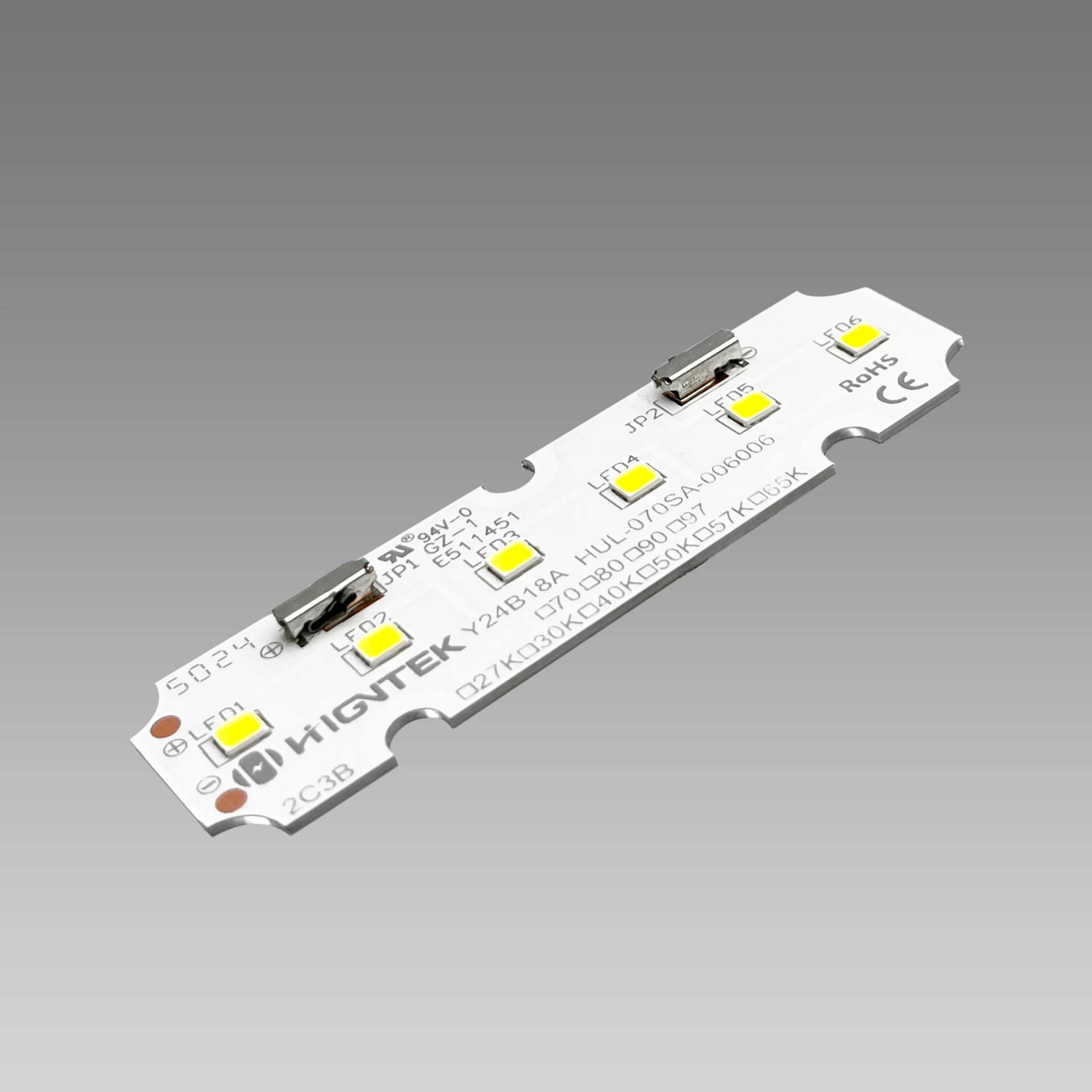

Designed for lighting applications that pursue high efficacy and low power consumption, this linear lighting module measures 70mm × 20mm and follows the Zhaga design standard, ensuring compatibility with various optical lenses and diffusers. It features 6 high-efficacy 2835 LEDs, delivering outstanding luminous performance with stable reliability and excellent color rendering. It widely used in panel lights, linear fixtures, and office lighting applications.

Features And Benefits

• Input Voltage: 5.2-6V                                       Typical Applications:
• Powe: 0.5-6W                                                    Linear light
• Luminous Efficacy: Up to 223 lm/W                 Wall lamp
• CCK: 2700K–6500K                                           Panel light
• Color Rendering Index: 80–90
• Beam Angle: 120°
• IP Grade: IP20
• Perfectly uniform light, even if several LED modules are used together in a line
• Push-in connectors enabling automated wiring
• Long life-time: >50,000 hours
• CE, ROHS, ERP compliance
• 5-year limited guarantee
