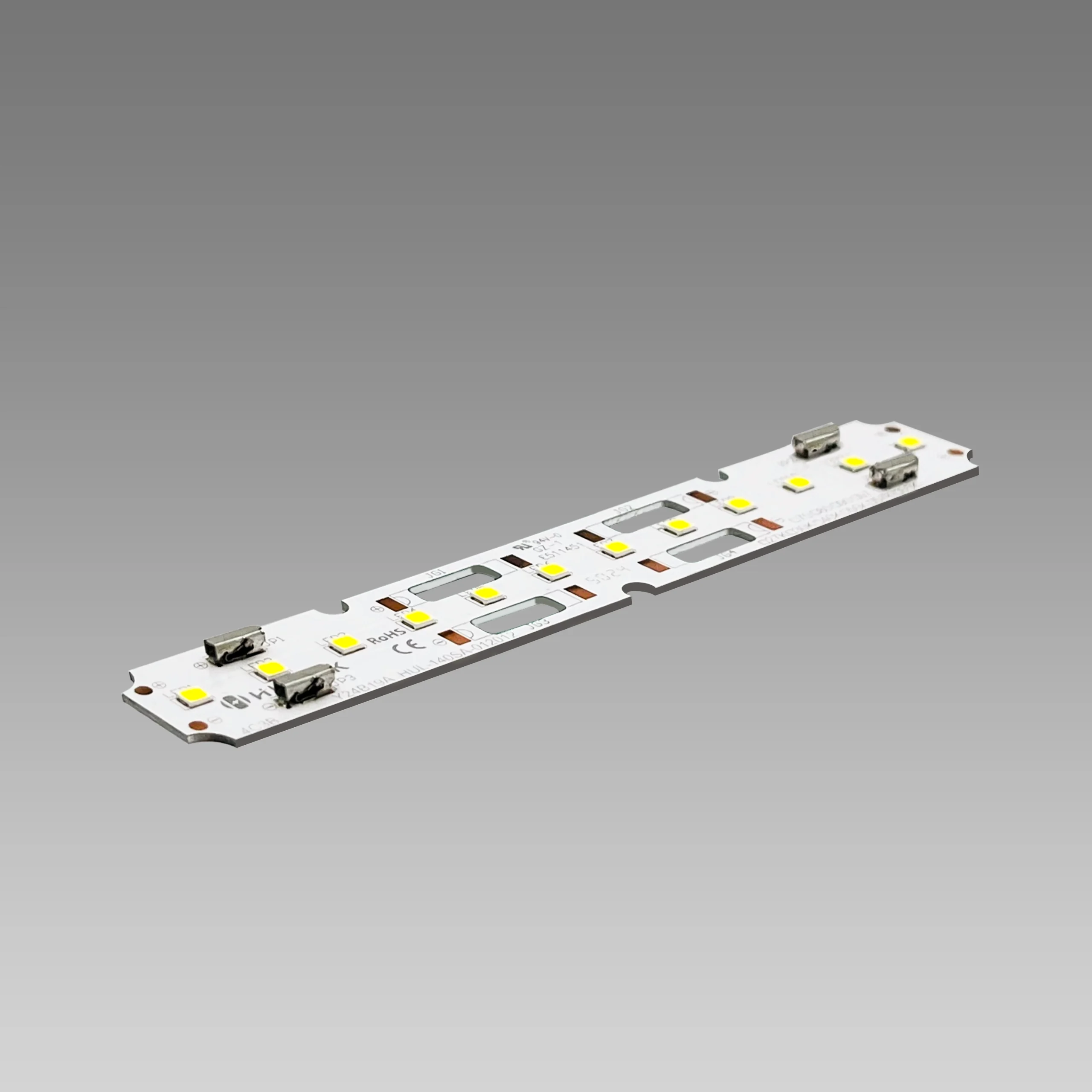

225lm/W High-Efficacy Linear Modules 20×140mm (500lm)

225lm/W High-Efficacy Linear Modules 20×140mm (500lm)

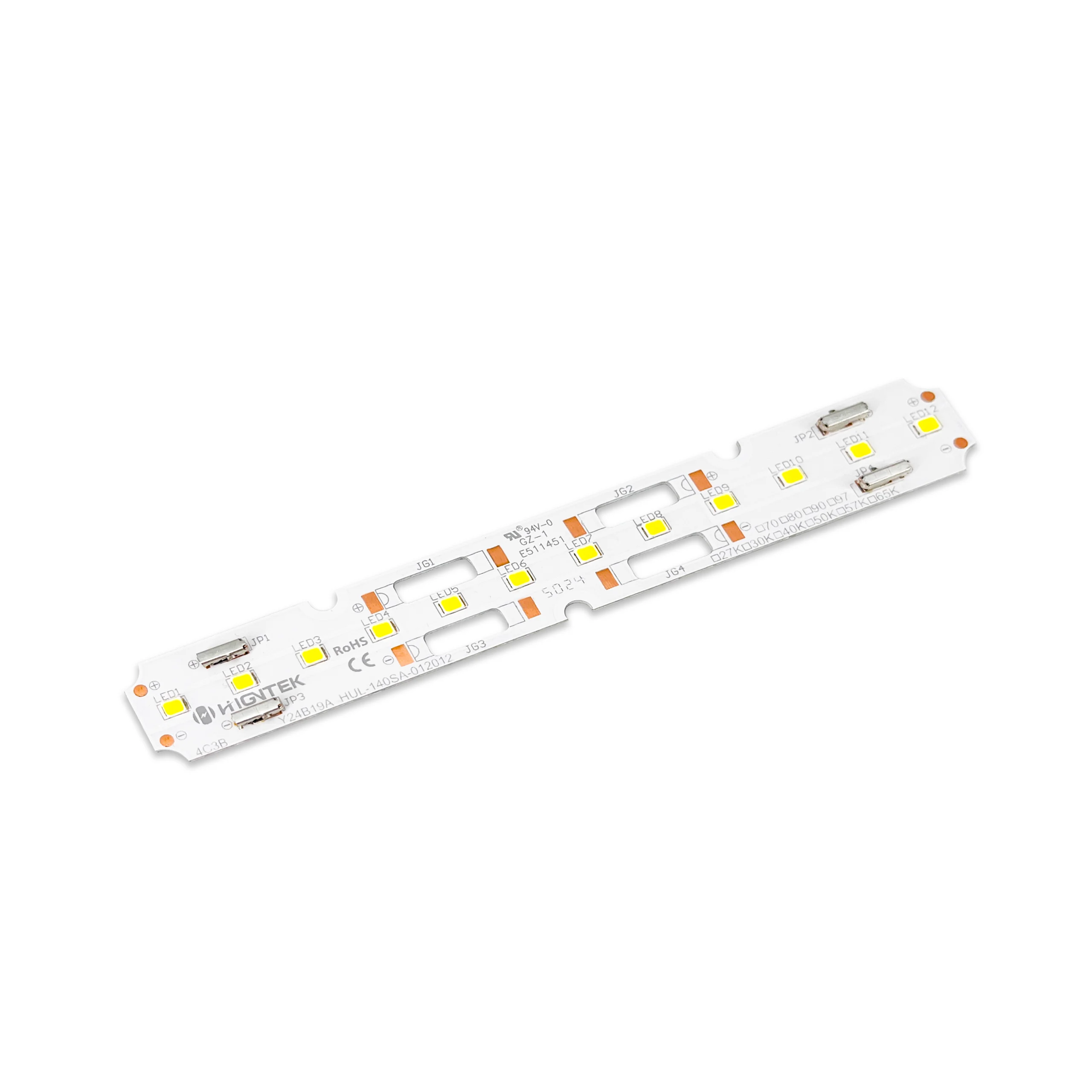

225lm/W High-Efficacy Linear Modules 20×140mm (500lm) - Image 2

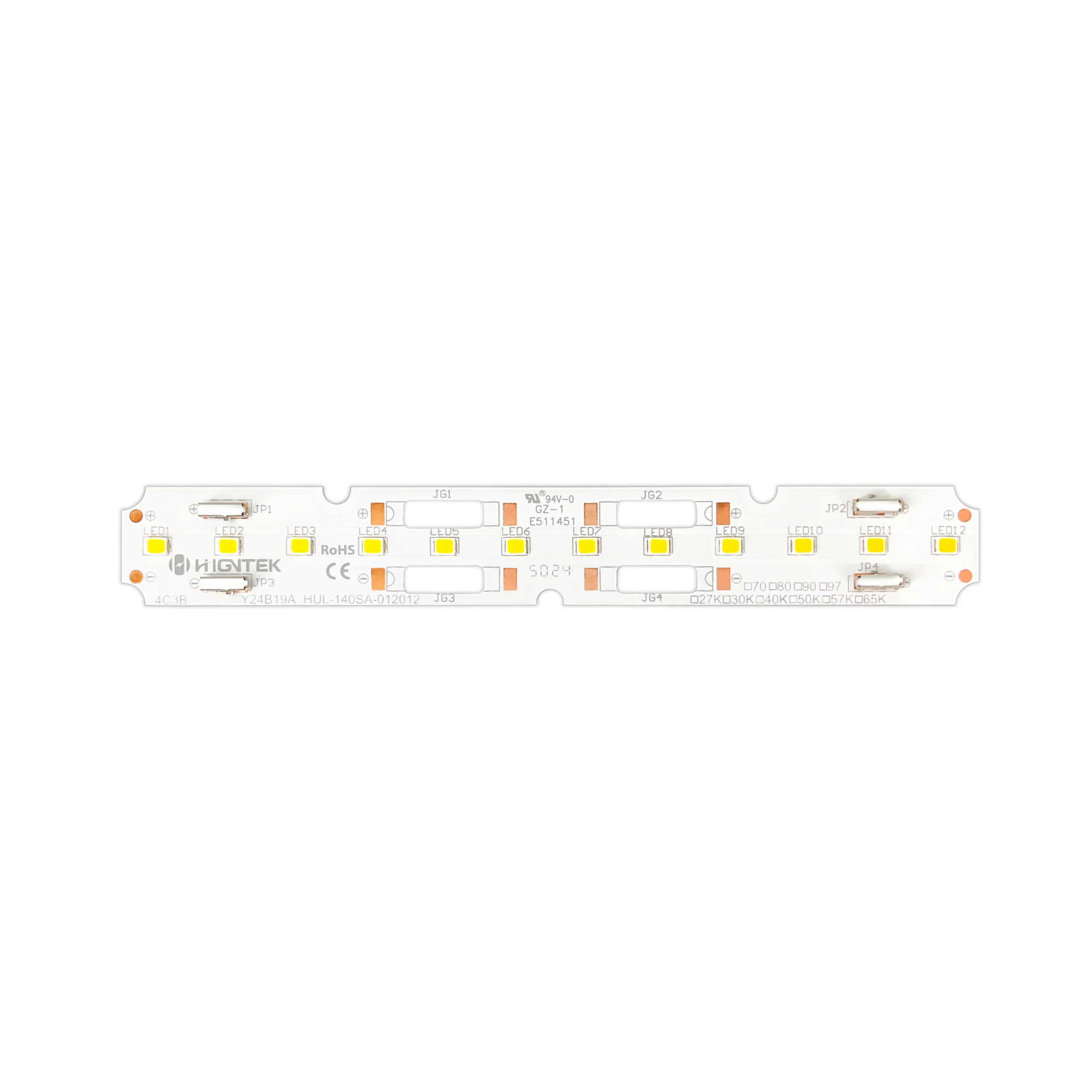

225lm/W High-Efficacy Linear Modules 20×140mm (500lm) - Image 3
225lm/W High-Efficacy Linear Modules 20×140mm (500lm) - Image 4

HIGNTEK HUL-140SA-012012



Designed for lighting applications that pursue high efficacy and low power consumption, this linear lighting module measures 140mm × 20mm and follows the Zhaga design standard, ensuring compatibility with various optical lenses and diffusers. It features 12 high-efficacy 2835 LEDs, delivering outstanding luminous performance with stable reliability and excellent color rendering. It widely used in panel lights, linear fixtures, and office lighting applications.



Features And Benefits



  • Input Voltage: 10.5-12V                                     Typical Applications:
  • Powe: 1.2-12W                                                    Linear light
  • Luminous Efficacy: Up to 225 lm/W                  Wall lamp
  • CCK: 2700K–6500K                                            Panel light
  • Color Rendering Index: 80–90
  • Beam Angle: 120°
  • IP Grade: IP20
  • Perfectly uniform light, even if several LED modules are used together in a line
  • Push-in connectors enabling automated wiring
  • Long life-time: >50,000 hours
  • CE, ROHS, ERP compliance
  • 5-year limited guarantee

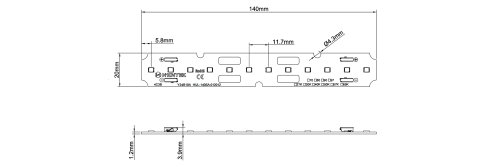

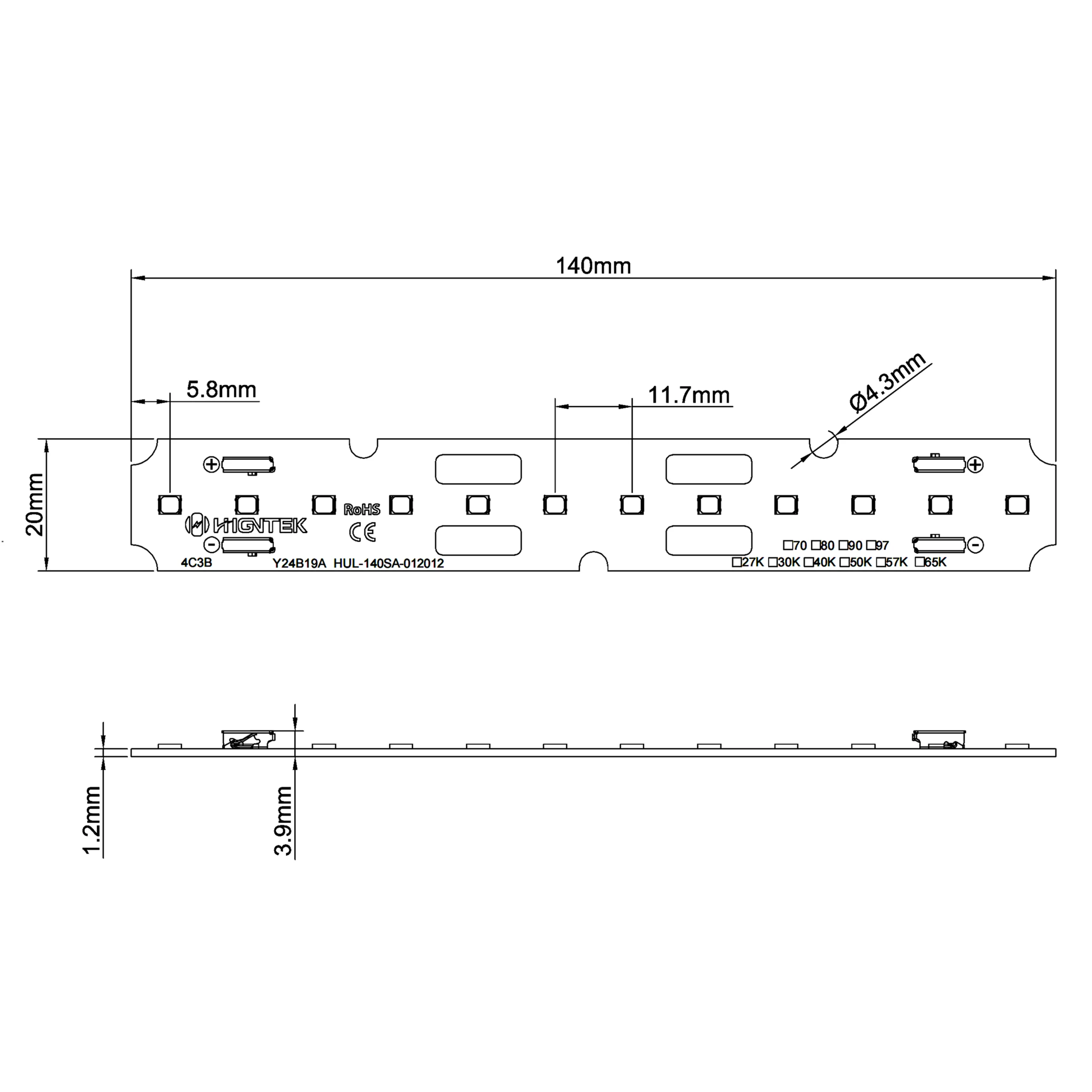

Dimensions (All Dimensions In Mm).









Product Performance



The performance of HIGNTEK HUL-140SA-012012 is measured under the specified test current at Tj = 25 °C.

Type CCT (K) CRI (Ra) Current (mA) Luminous Flux (lm) Forward Voltage (V) Power (W) Luminous Efficiency (lm/W)
HUL-140SA-012012 2700K–6500K 80 120 266–286 10.6 1.27 209–225
HUL-140SA-012012 2700K–6500K 80 210 461–496 10.8 2.27 203–219
HUL-140SA-012012 2700K–6500K 80 450 966–1039 11.5 5.18 186–201
HUL-140SA-012012 2700K–6500K 90 120 234–252 10.6 1.27 184–198
HUL-140SA-012012 2700K–6500K 90 210 406–436 10.8 2.27 179–192
HUL-140SA-012012 2700K–6500K 90 450 850–914 11.5 5.18 164–176
  1. Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
  2. Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.





Parameter Rating
MAX Power 12 W
MAX Forward Current 1050 mA
Operating Temperature -40 to 65℃
