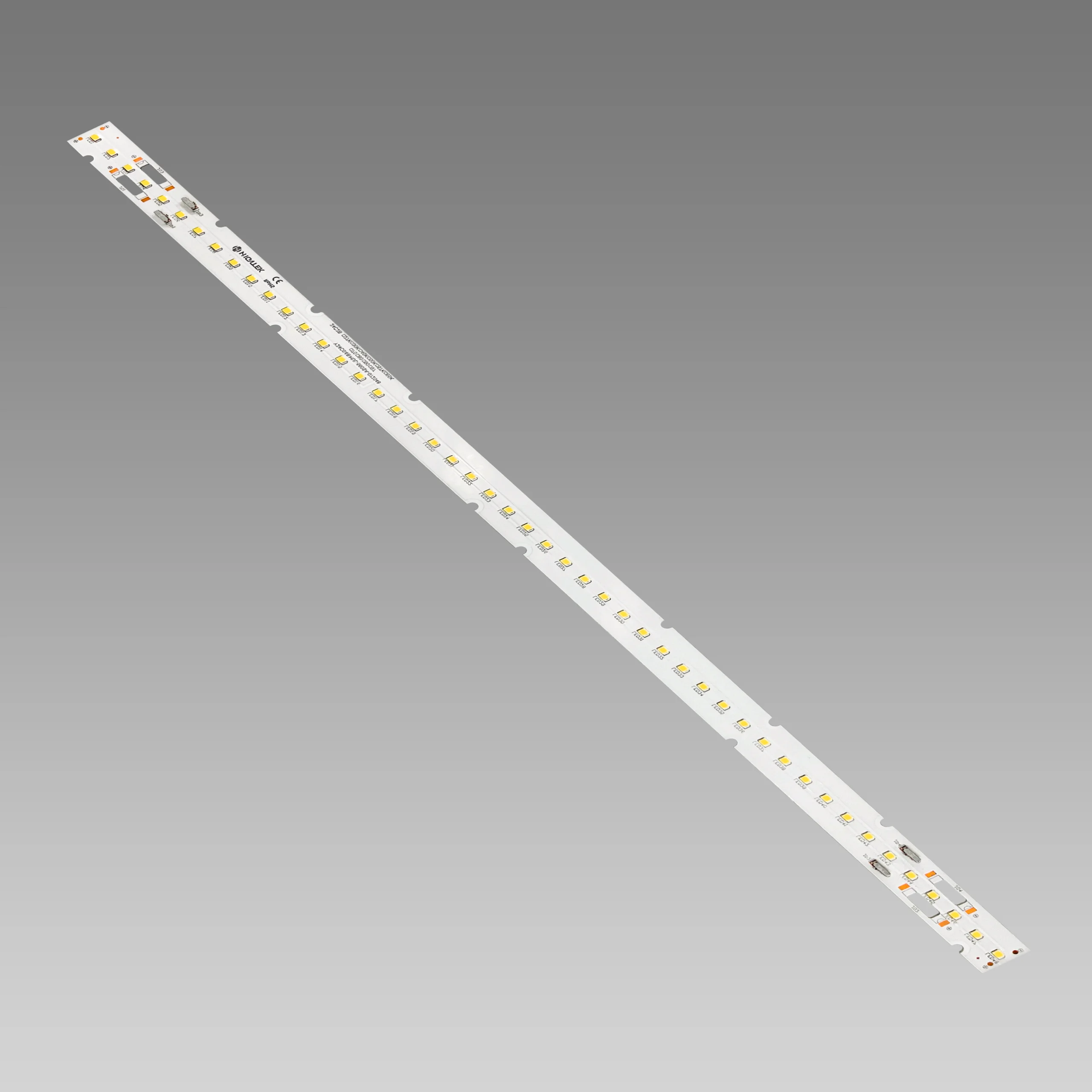

72V 224lm/W High-Efficacy Linear Modules 20×560mm (1980lm)

72V 224lm/W High-Efficacy Linear Modules 20×560mm (1980lm)
72V 224lm/W High-Efficacy Linear Modules 20×560mm (1980lm) - Image 2
72V 224lm/W High-Efficacy Linear Modules 20×560mm (1980lm) - Image 3
72V 224lm/W High-Efficacy Linear Modules 20×560mm (1980lm) - Image 4

HIGNTEK HUL-560SA-072048



Designed for lighting applications that pursue high efficacy and low power consumption, this 72V linear lighting module measures 560mm × 20mm and follows the Zhaga design standard, ensuring compatibility with various optical lenses and diffusers. It features 48 high-efficacy 2835 LEDs, delivering outstanding luminous performance with stable reliability and excellent color rendering. It widely used in panel lights, linear fixtures, and office lighting applications.



Features And Benefits



  • Input Voltage: 62.4-72V                                     Typical Applications:
  • Powe: 4.8-48W                                                    Linear light
  • Luminous Efficacy: Up to 224 lm/W                   Wall lamp
  • CCK: 2700K–6500K                                             Panel light
  • Color Rendering Index: 80–90
  • Beam Angle: 120°
  • IP Grade: IP20
  • Perfectly uniform light, even if several LED modules are used together in a line
  • Push-in connectors enabling automated wiring
  • Long life-time: >50,000 hours
  • CE, ROHS, ERP compliance
  • 5-year limited guarantee
Dimensions (All Dimensions In Mm).









Product Performance



The performance of HIGNTEK HUL-560SA-072048 is measured under the specified test current at Tj = 25 °C.

Type CCT (K) CRI (Ra) Current (mA) Luminous Flux (lm) Forward Voltage (V) Power (W) Luminous Efficiency (lm/W)
HUL-560SA-072048 2700K–6500K 80 80 1060–1140 63.5 5.08 209–224
HUL-560SA-072048 2700K–6500K 80 140 1841–1980 64.9 9.09 203–218
HUL-560SA-072048 2700K–6500K 80 300 3758–4041 67.5 20.25 186–200
HUL-560SA-072048 2700K–6500K 90 80 933–1003 63.5 5.08 184–197
HUL-560SA-072048 2700K–6500K 90 140 1620–1742 64.9 9.09 178–192
HUL-560SA-072048 2700K–6500K 90 300 3307–3556 67.5 20.25 163–176
  1. Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
  2. Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.





Parameter Rating
MAX Power 48 W
MAX Forward Current 700 mA
Operating Temperature -40 to 65℃





Primary Application
