The development of modern lighting technology relies heavily on continuous advancements in electronic manufacturing. Among these, SMT (Surface Mount Technology) assembly is one of the most critical processes in LED module production. SMT quality directly affects the module’s lifetime stability, electrical reliability, and performance consistency. High-precision SMT significantly improves production efficiency and accuracy, making it a core manufacturing step for LED modules.
1. What is SMT Assembly?
SMT assembly is a process in which surface-mount devices (SMDs) are placed onto designed positions on the PCB surface and soldered through reflow to form reliable electrical and mechanical connections.
Compared with traditional through-hole technology, SMT offers several advantages:
- Smaller and lighter components enable higher assembly density, allowing PCBs to integrate more functions and support compact, multi-functional LED modules.
- For LED modules, SMT enables high-density LED layout, precise LED positioning, and more stable solder joints.
- High automation improves speed and repeatability, significantly reducing production time and cost.
For these reasons, SMT has become the standard manufacturing process for LED modules.

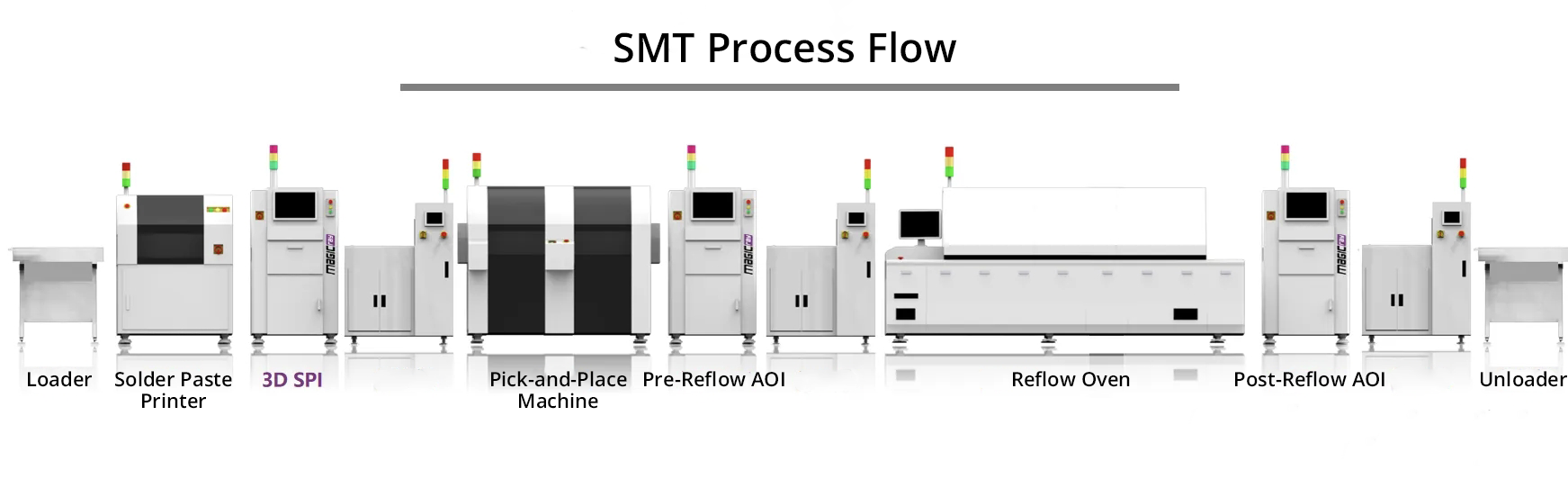

2. SMT Manufacturing Process for LED Modules
1) Incoming Material Inspection
Inspection includes:
- PCB quality (including warpage, scratches, short/open circuits, solder mask and silkscreen condition, etc.)
- SMD components such as LED chips, resistors, capacitors (appearance, size, coplanarity)
- Electrical sampling tests for LED and electronic components
This ensures all materials meet design and quality requirements before entering production.
2) Solder Paste Printing
According to PCB design and component specifications, a suitable stencil is selected and installed on the solder paste printer.
The printer applies solder paste accurately onto the LED module PCB pads.
Key requirements: Solder paste must be uniformly deposited onto the LED module PCB pads through the stencil using an SMT printer. During printing, the thickness, shape, and position of the paste must be precisely controlled to ensure full pad coverage without defects such as insufficient solder, excess solder, smearing, bridging, or offset.
Solder paste printing quality affects solder joint strength, LED thermal performance, and lifetime.
3) SPI Solder Paste Inspection
SPI inspection systems are used to evaluate the quality of solder paste printing through the following key checks:
- Thickness measurement: Ensures the solder paste height meets process requirements.
- Position accuracy: Verifies that the paste is printed in the correct location without offset or misalignment.
- Pad alignment: Confirms proper overlap between solder paste deposits and PCB pads.
- Surface quality: Checks that the paste surface is smooth and free from defects such as smearing, slumping, solder peaks, insufficient paste, or excess paste.
4) Component Placement
The pick-and-place machine, following a pre-programmed placement file, accurately picks components from reels or trays and mounts them onto the designated positions on the PCB. During the placement process, it is essential to ensure correct polarity, orientation, and alignment of each component to guarantee proper functionality and assembly reliability.
5) Reflow Soldering

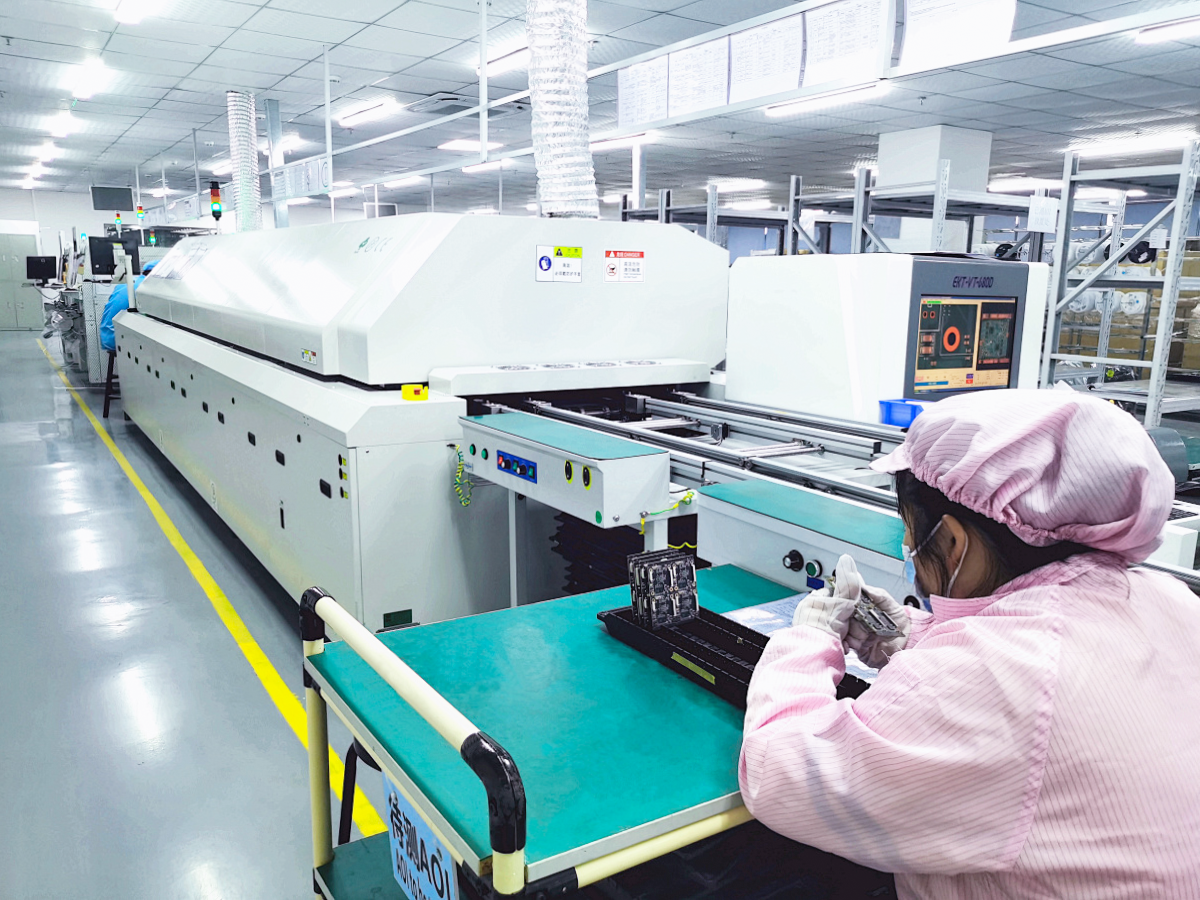

The PCB is transferred into the reflow oven, where the solder paste melts and forms reliable mechanical and electrical connections between components and PCB pads under a controlled temperature profile. A standard reflow profile includes preheat, soak, reflow, and cooling stages—each requiring precise control of temperature, time, and atmosphere to ensure optimal solder joint quality.
- Preheat phase: Gradually raises the temperature to allow solder paste solvents to evaporate, preventing voids and solder balling.
- Soak (thermal stabilization): Ensures uniform heating across the PCB and activates flux for better wettability.
- Reflow phase: Reaches peak temperatures typically no higher than 245–255°C, depending on LED thermal limits, ensuring the solder fully reflows to create strong, reliable joints.
- Cooling phase: Rapid cooling solidifies the solder structure, improving joint strength and long-term reliability.
A well-controlled reflow process is critical for LED module performance, ensuring consistent thermal stability, electrical reliability, and long service life.
6) Inspection
A variety of inspection methods are used to ensure the soldering and assembly quality of the PCBA, including visual inspection, Automated Optical Inspection (AOI), X-ray inspection, In-Circuit Testing (ICT), flying probe testing, and functional testing.
- X-ray inspection is primarily used to detect hidden solder joint issues—especially for BGA and other package types where internal solder cannot be observed externally.
- Visual inspection relies on manual observation of the PCBA surface to identify obvious defects such as missing components, misalignment, polarity errors, solder bridges, or cold joints.
- AOI uses high-resolution optical imaging to rapidly scan the PCB, detect soldering defects, and automatically mark abnormalities through image analysis software.
7) Rework and Re-inspection
For any defects identified during inspection, professional rework procedures are carried out using soldering irons, rework stations, or specialized tools to remove faulty solder joints and perform corrective soldering. Each repaired board must then undergo a full re-inspection—including visual checks, AOI, or additional electrical testing—to ensure that all defects have been resolved and the LED module meets the required quality standards before proceeding to the next stage.
3. How to Choose a Reliable SMT Manufacturer for LED Modules
1) Production Equipment & Process Capability
A high-quality SMT service provider should be equipped with advanced manufacturing equipment such as high-precision placement machines, reflow ovens, and solder paste printers. The accuracy, speed, and stability of this equipment directly influence the quality and efficiency of SMT assembly.
In addition, the provider must have extensive process expertise and be proficient in various SMT techniques, including high-precision component placement, multilayer PCB SMT assembly, and mixed assembly (combining SMD and through-hole components). Strong process capability ensures they can meet diverse customer requirements and deliver consistent manufacturing reliability.
2) Quality Control System
A comprehensive quality control system is a key factor when selecting an SMT assembly provider. The manufacturer should establish a full-process quality management system covering incoming material inspection, in-process monitoring, and final product testing to ensure every stage meets required standards.
For example:
- Incoming Material Inspection: PCB boards, components, solder paste, and other materials must undergo strict verification to ensure they meet specifications and are free from defects.
- Process Monitoring: Critical SMT steps—such as solder paste printing, component placement, and reflow soldering—must be continuously monitored to detect issues early and ensure process stability.
- Final Product Testing: Multiple inspection methods should be applied, including visual inspection, AOI, X-ray, ICT, flying probe tests, and functional testing, to guarantee that the finished LED PCBA is free of defects and meets quality requirements.
A robust quality control system ensures consistent reliability, stable performance, and high production yield—crucial for LED module manufacturing.
3) Supply Chain Management Capability
SMT assembly requires a wide range of materials, including PCB boards, various SMD components, and solder paste. A reliable SMT service provider should demonstrate strong supply chain management capabilities to ensure timely material availability and consistent quality.
This includes:
- Establishing long-term, stable partnerships with high-quality component and material suppliers.
- Maintaining well-managed inventory systems to prevent shortages, delays, or production downtime.
- Ensuring that all incoming materials meet required specifications to avoid quality issues that could affect the final LED module performance.
Effective supply chain management helps maintain stable production, reduce risks, and ensure that LED module manufacturing can proceed efficiently and without interruption.
4) Technical Support & After-sales Service
During the SMT assembly process, various technical challenges may arise—such as PCB design optimization, component selection guidance, or process adjustments. A high-quality service provider should have a professional technical support team capable of delivering comprehensive assistance and tailored solutions to address these issues.
Additionally, strong after-sales service is essential. The provider should respond promptly to customer feedback, resolve issues efficiently, and ensure overall customer satisfaction after product delivery. Reliable technical and after-sales support helps maintain long-term cooperation and enhances the success of LED module manufacturing projects.
SMT assembly is a critical process in LED PCBA manufacturing, involving multiple tightly controlled steps such as incoming material inspection, solder paste printing, component placement, reflow soldering, cleaning, inspection, and rework. Every stage must be precisely managed to ensure stable performance and high product quality.
