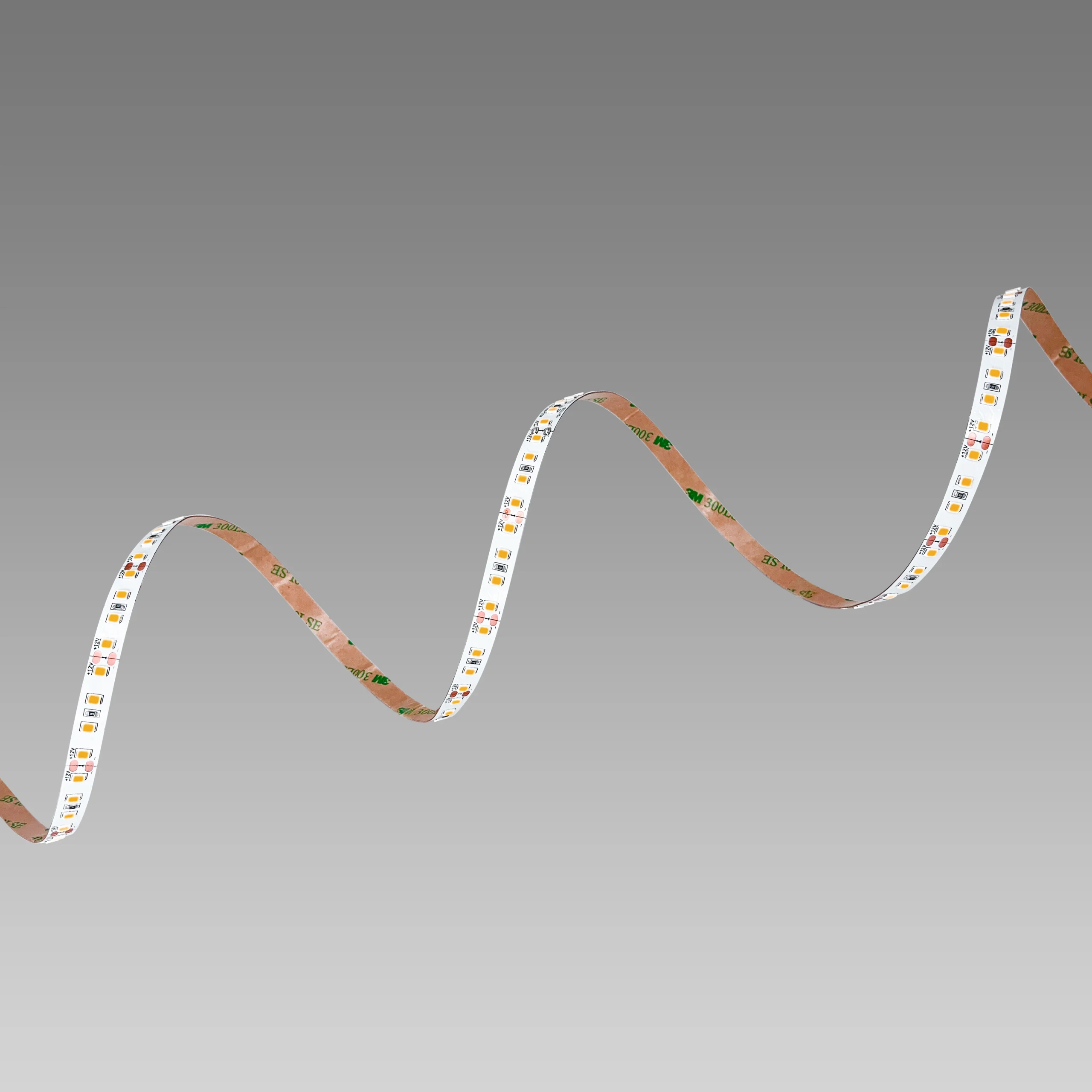

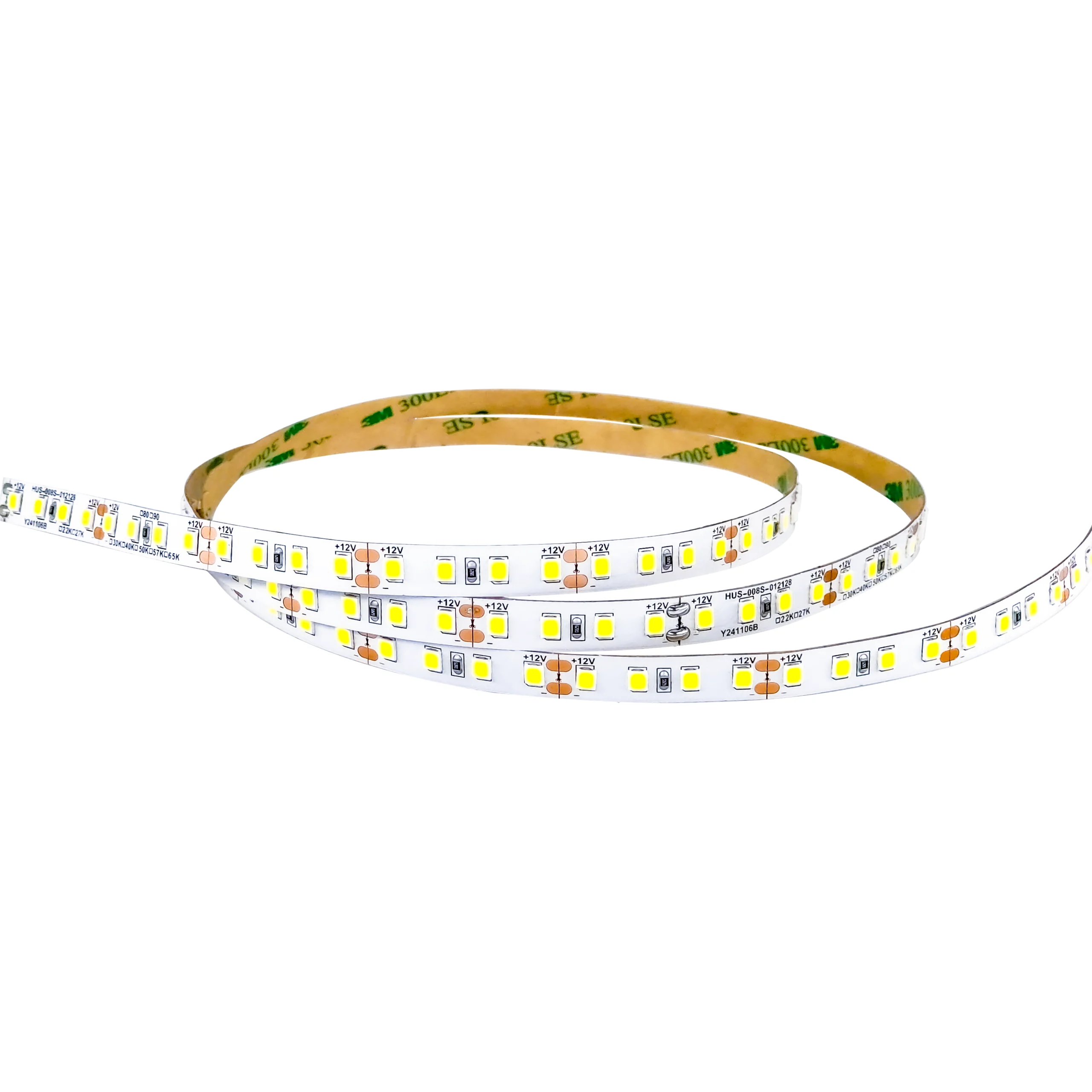

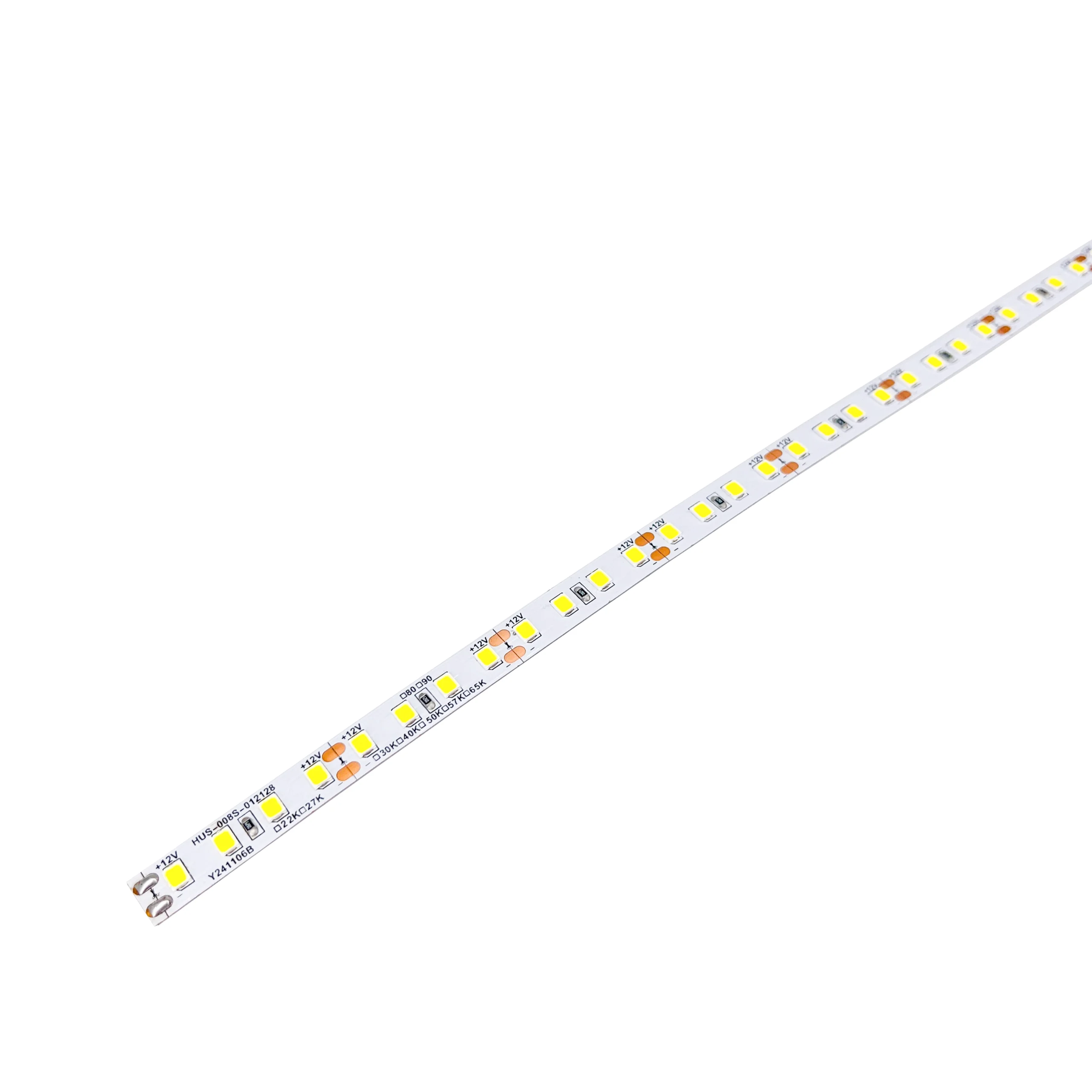

200LM/W 12V Flexible LED Strip Light with 128 LEDs
HIGNTEK HUS-008SA-012128
The 2835 Series Flexible LED Strip is designed for ultra-high-efficiency decorative lighting. At 8mm wide with 128 high-efficacy LEDs per meter, it offers excellent brightness, color rendering, and uniform light diffusion. Flexible and cuttable, it allows easy customization without affecting performance.
Features And Benefits
- Input Voltage: DC12V Typical Applications:
- Powe: 8W/M Strip Light
- Luminous Flux: Up to 1600 lm Wall lamp
- Luminous Efficacy: Up to 200 lm/W Decorative lighting
- CCK: 2700K–6500K
- Color Rendering Index: 80–90
- Beam Angle: 120°
- IP Grade: IP20
- Packaging: 5 meters per reel
- CE, ROHS, ERP compliance
- 5-year limited guarantee

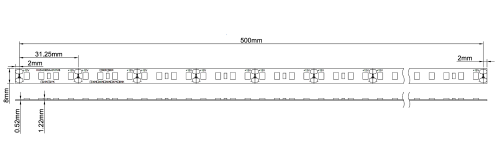

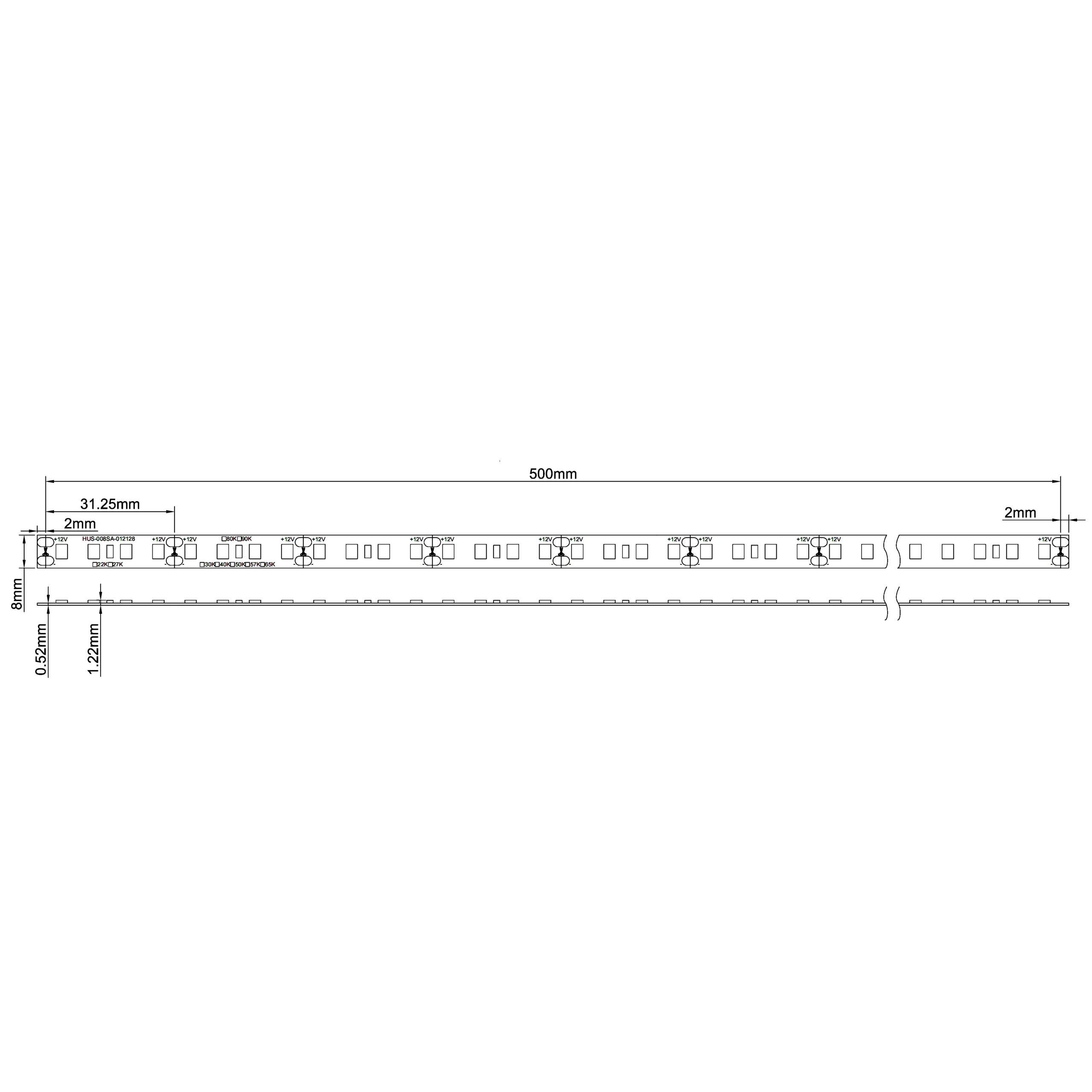

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUS-008SA-012128 is measured under the specified test current at Tj = 25 °C.
| Type | CCT（K） | CRI (Ra) | Current（mA/M） | Luminous Flux（lm/M） | Luminous Flux（LM/W/M） |
|---|---|---|---|---|---|
| HUS-008SA-012128 | 2700K–6500K | 80 | 667 | 1472-1600 | 184–200 |
| HUB-008SA-012128 | 2700K–6500K | 90 | 667 | 1295-1408 | 162–176 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
- The working power tolerance is approximately ±0.5W.
| Parameter | Rating |
|---|---|
| MAX Power | 64 W/M |
| MAX Forward Current | 1500 mA/M |
| Operating Temperature | -40 to 65℃ |
- The limit parameters of the LED board are not applicable to normal operation.

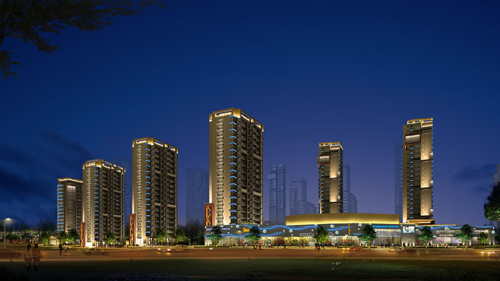

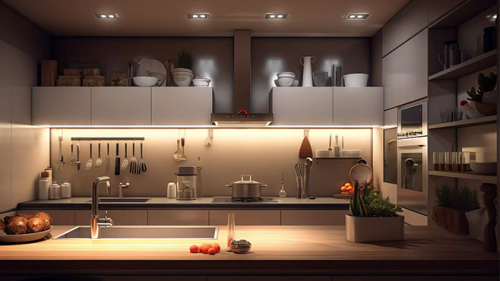

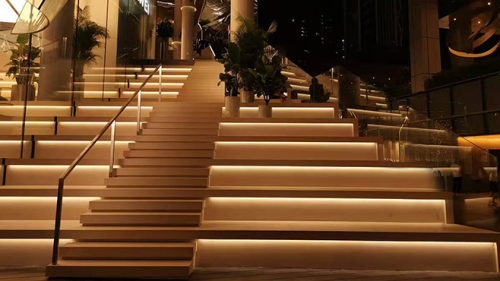

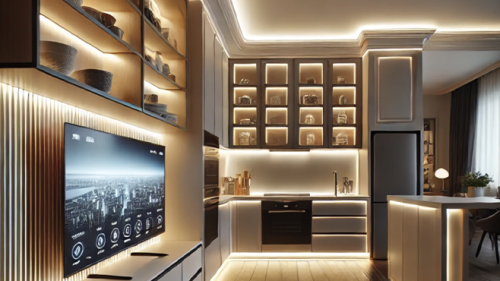

Primary Application
