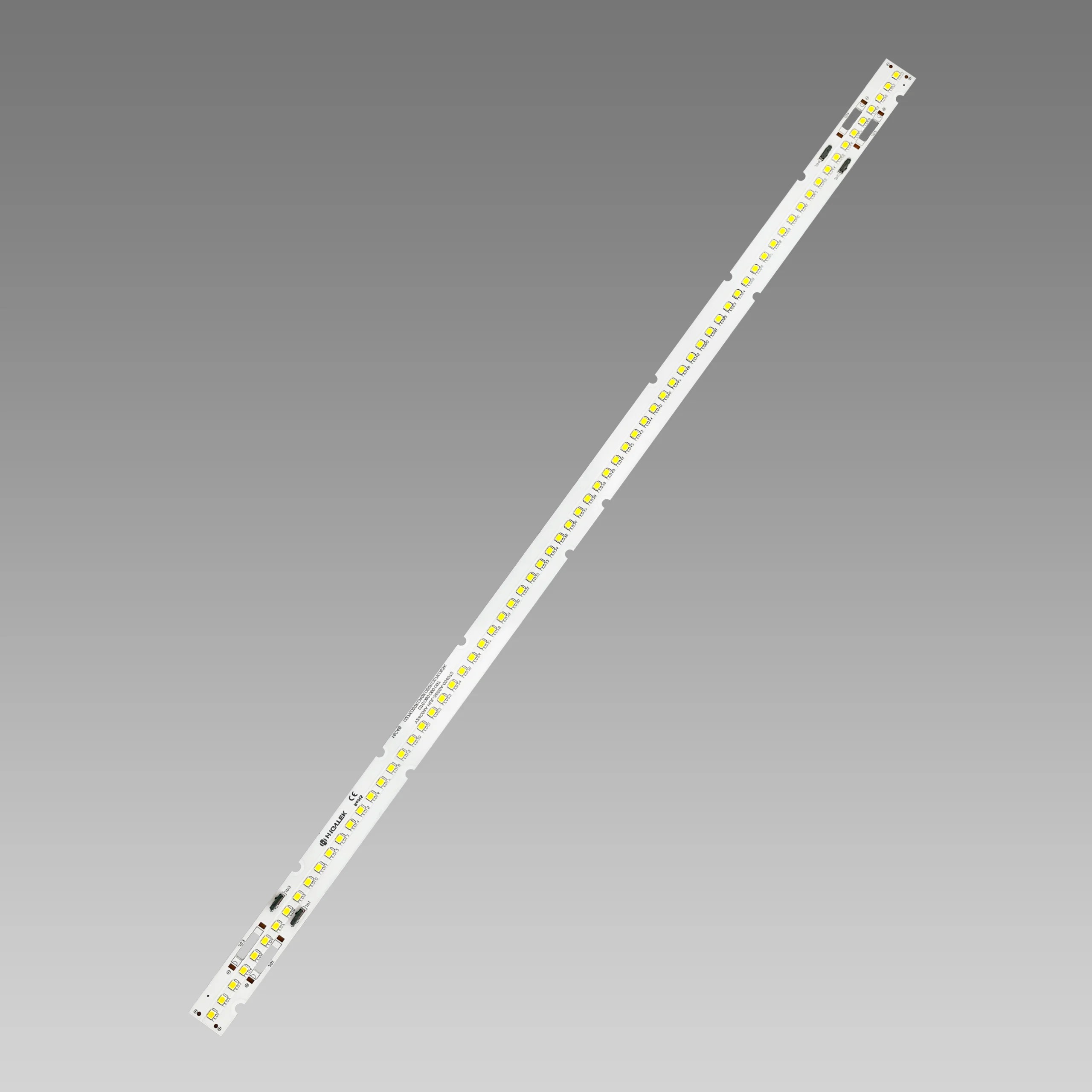

54V 224lm/W High-Efficacy Linear Modules 20×560mm (2980lm)
HIGNTEK HUL-560SA-054072

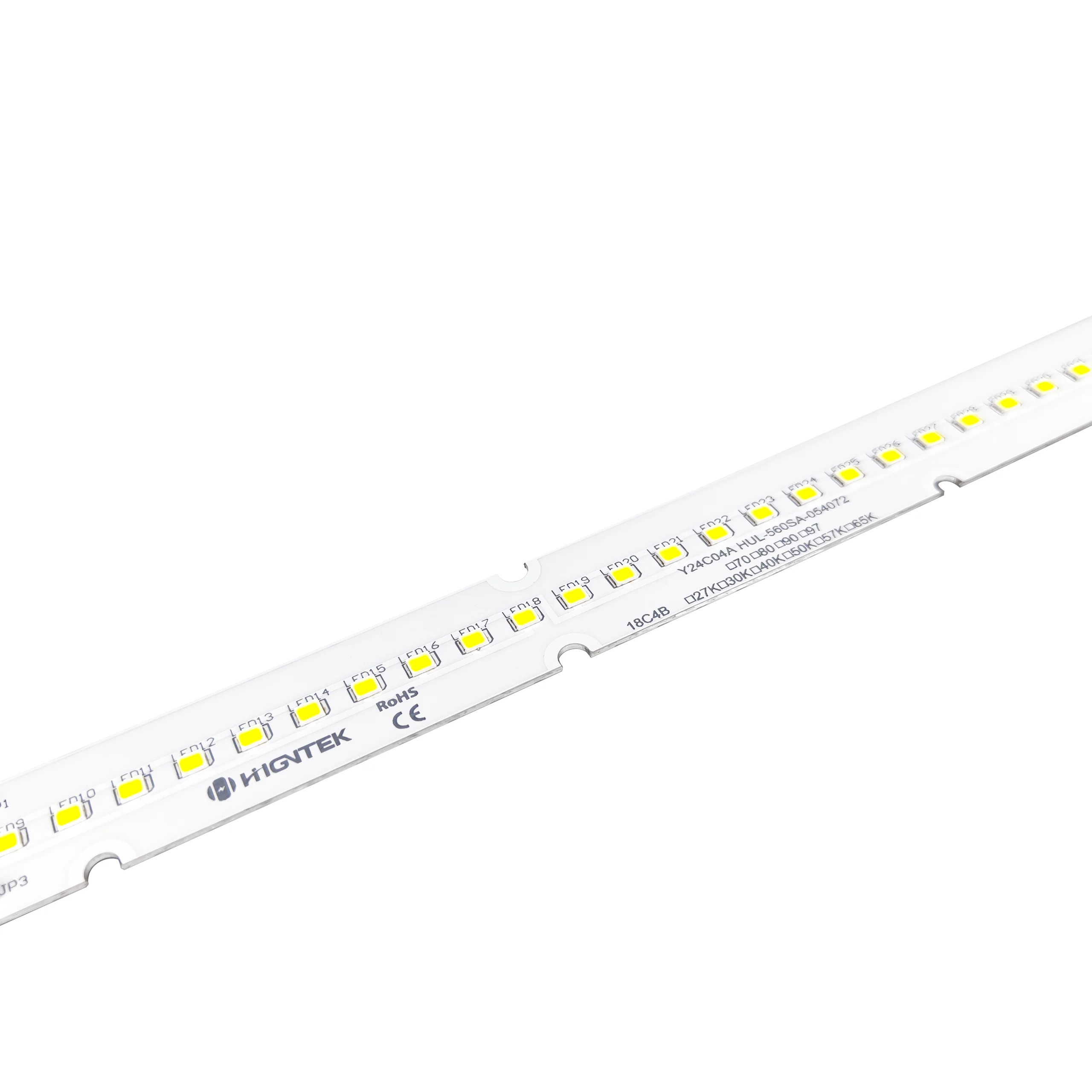

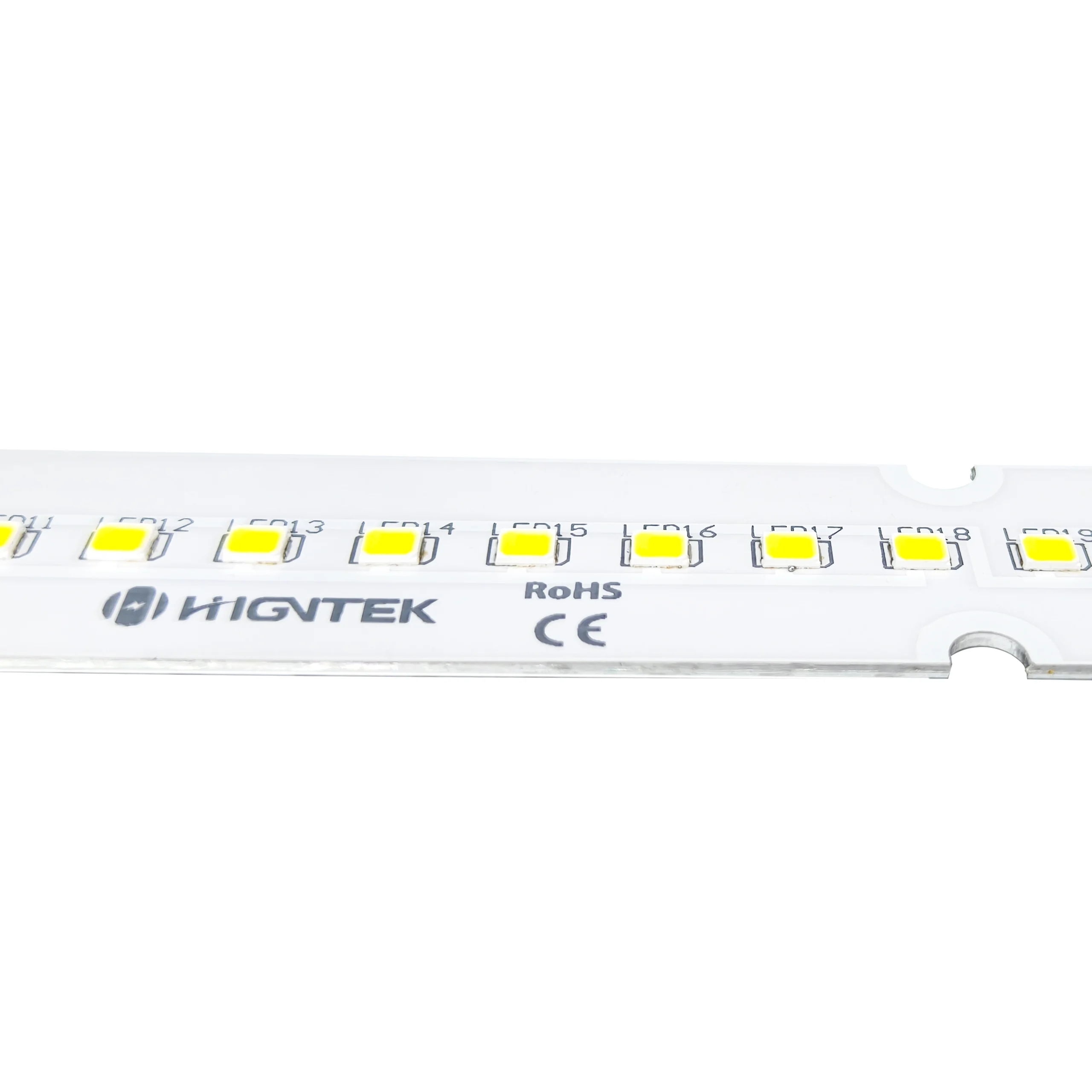

Designed for lighting applications that pursue high efficacy and low power consumption, this 54V linear lighting module measures 560mm × 20mm and follows the Zhaga design standard, ensuring compatibility with various optical lenses and diffusers. It features 72 high-efficacy 2835 LEDs, delivering outstanding luminous performance with stable reliability and excellent color rendering. It widely used in panel lights, linear fixtures, and office lighting applications.
Features And Benefits
- Input Voltage: 46.8-54V Typical Applications:
- Powe: 7.2-72W Linear light
- Luminous Efficacy: Up to 224 lm/W Wall lamp
- CCK: 2700K–6500K Panel light
- Color Rendering Index: 80–90
- Beam Angle: 120°
- IP Grade: IP20
- Perfectly uniform light, even if several LED modules are used together in a line
- Push-in connectors enabling automated wiring
- Long life-time: >50,000 hours
- CE, ROHS, ERP compliance
- 5-year limited guarantee

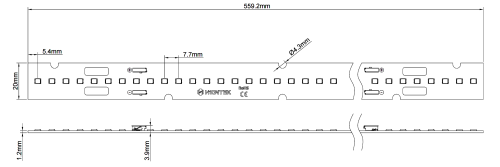

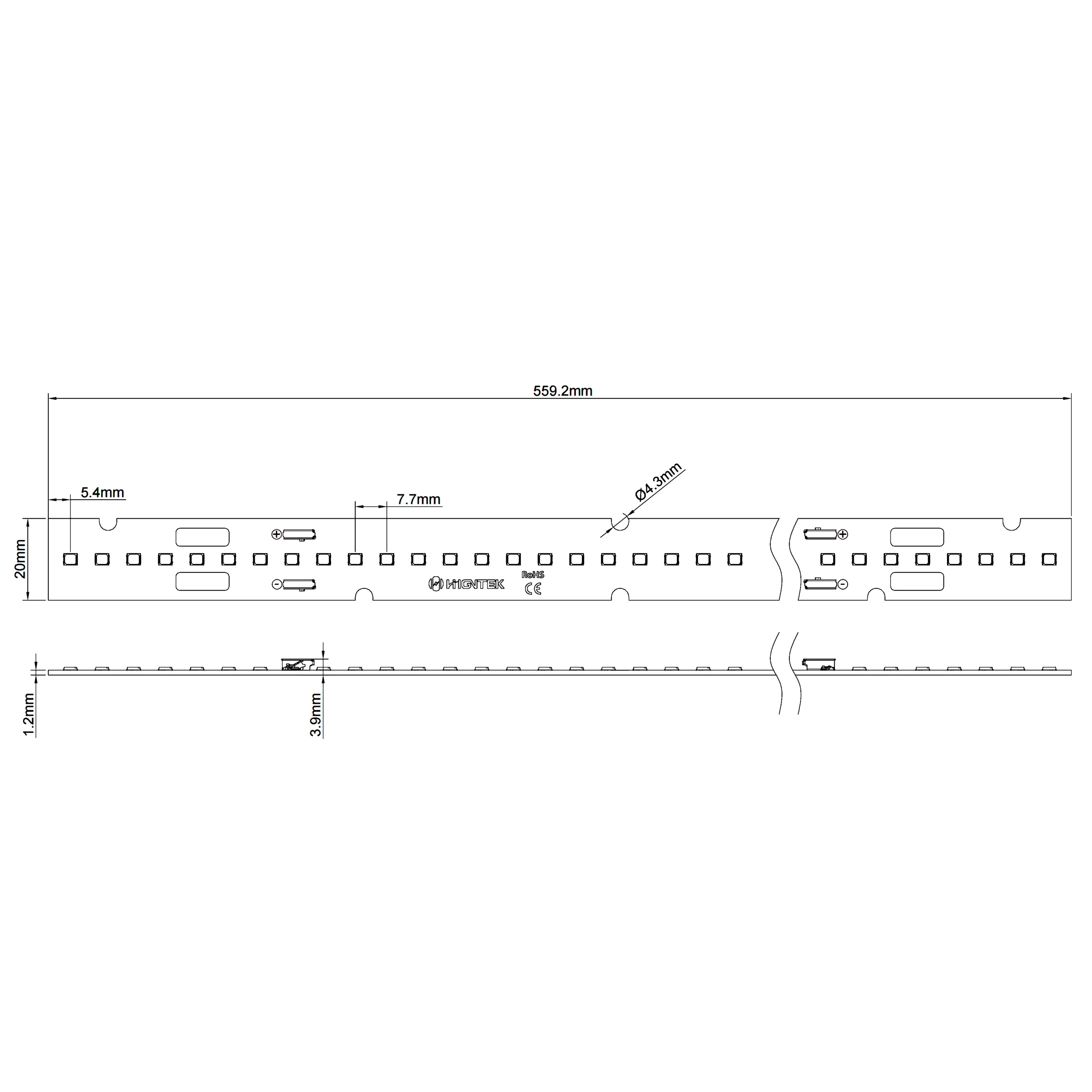

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUL-560SA-054072 is measured under the specified test current at Tj = 25 °C.
| Type | CCT (K) | CRI (Ra) | Current (mA) | Luminous Flux (lm) | Forward Voltage (V) | Power (W) | Luminous Efficiency (lm/W) |
|---|---|---|---|---|---|---|---|
| HUL-560SA-054072 | 2700K–6500K | 80 | 160 | 1590–1710 | 47.7 | 7.63 | 208–224 |
| HUL-560SA-054072 | 2700K–6500K | 80 | 280 | 2759–2967 | 48.6 | 13.61 | 203–218 |
| HUL-560SA-054072 | 2700K–6500K | 80 | 600 | 5675–6102 | 50.8 | 30.48 | 186–200 |
| HUL-560SA-054072 | 2700K–6500K | 90 | 160 | 1399–1505 | 47.7 | 7.63 | 183–197 |
| HUL-560SA-054072 | 2700K–6500K | 90 | 280 | 2428–2611 | 48.6 | 13.61 | 178–192 |
| HUL-560SA-054072 | 2700K–6500K | 90 | 600 | 4994–5370 | 50.8 | 30.48 | 164–176 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 72 W |
| MAX Forward Current | 1400 mA |
| Operating Temperature | -40 to 65℃ |
Primary Application
Overview of Services
Each Higntek LED module is designed from the customer’s perspective, based on specific application requirements. We provide fully customized solutions.
From optical performance to thermal management and system integration, every parameter can be precisely configured to ensure optimal efficiency, reliability, and lighting experience.
Size
Full size / Cut size
CCT Range
2200K – 6500K
CRI Options
80 / 90 / 95+
Thermal
Thermal design / structure
Luminous Efficiency
up to 225 lm/W
LEDs
Brand & Model
Electrical
Voltage & Power
PCB
Material/Copper thickness/Process
Connector
Type/Number of interfaces/Layout
Electronic components
Component type/Specification
Optical lens
Type/Brand/Model/Beam angle
Driver
Brand/Model/Dimming method/Electrical
