72V 224lm/W High-Efficacy Linear Modules 20×280mm (990lm)
HIGNTEK HUL-280SA-072024

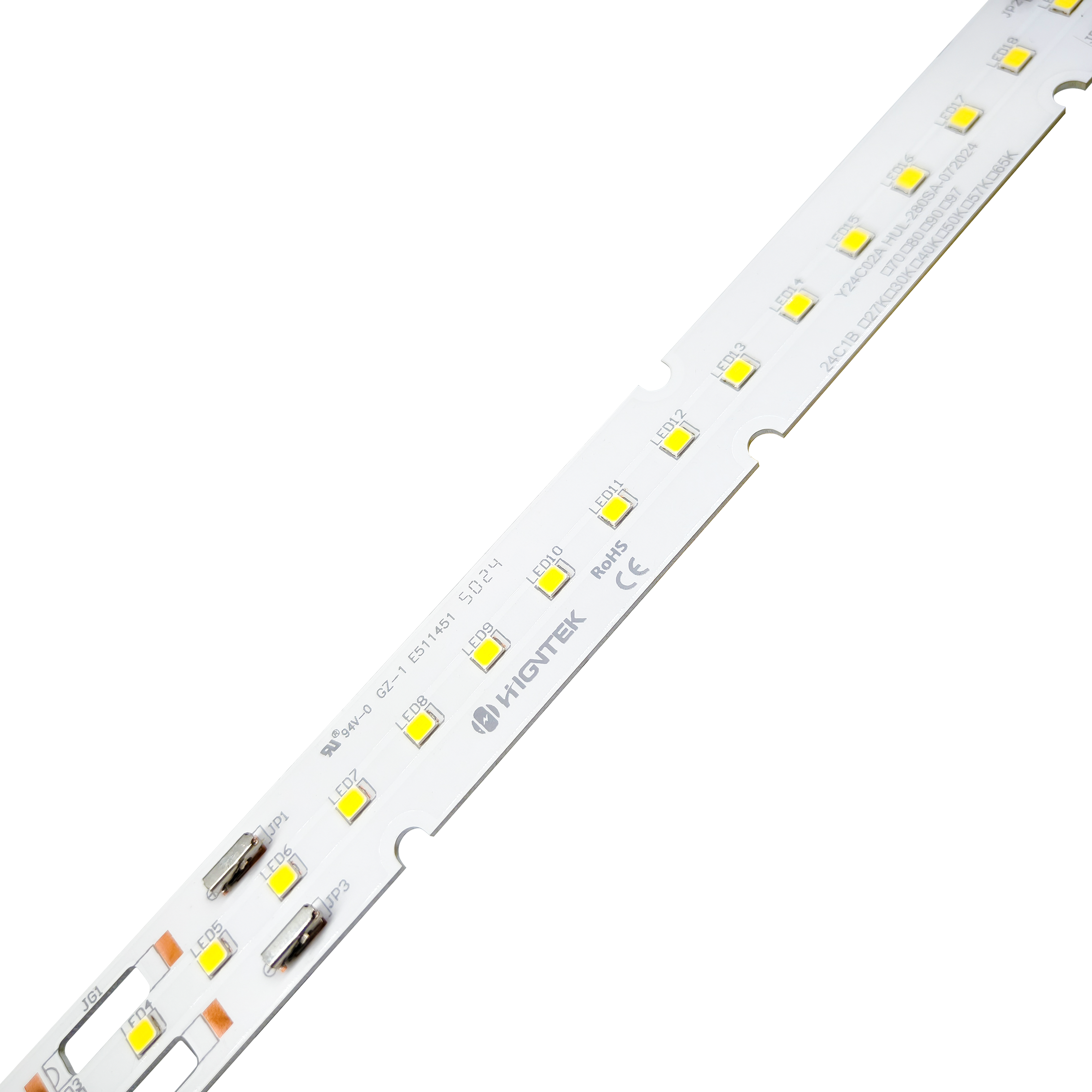

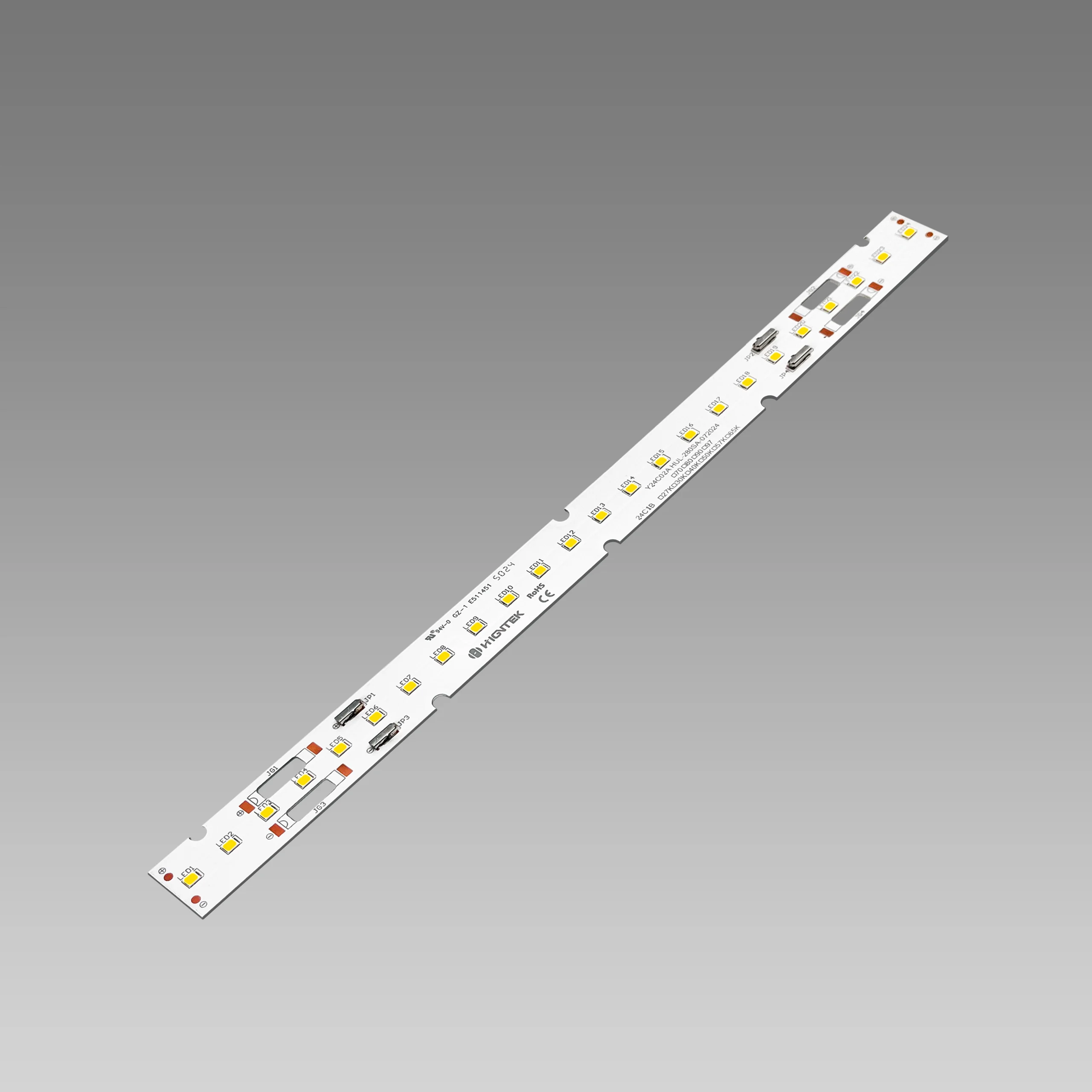

Designed for lighting applications that pursue high efficacy and low power consumption, this 72V linear lighting module measures 280mm × 20mm and follows the Zhaga design standard, ensuring compatibility with various optical lenses and diffusers. It features 24 high-efficacy 2835 LEDs, delivering outstanding luminous performance with stable reliability and excellent color rendering. It widely used in panel lights, linear fixtures, and office lighting applications.
Features And Benefits
- Input Voltage: 62.4-72V Typical Applications:
- Powe: 2.4-24W Linear light
- Luminous Efficacy: Up to 224 lm/W Wall lamp
- CCK: 2700K–6500K Panel light
- Color Rendering Index: 80–90
- Beam Angle: 120°
- IP Grade: IP20
- Perfectly uniform light, even if several LED modules are used together in a line
- Push-in connectors enabling automated wiring
- Long life-time: >50,000 hours
- CE, ROHS, ERP compliance
- 5-year limited guarantee
Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUL-280SA-072024 is measured under the specified test current at Tj = 25 °C.
| Type | CCT (K) | CRI (Ra) | Current (mA) | Luminous Flux (lm) | Forward Voltage (V) | Power (W) | Luminous Efficiency (lm/W) |
|---|---|---|---|---|---|---|---|
| HUL-280SA-072024 | 2700K–6500K | 80 | 40 | 528–568 | 63.6 | 2.54 | 208–224 |
| HUL-280SA-072024 | 2700K–6500K | 80 | 70 | 915–984 | 64.8 | 4.54 | 202–217 |
| HUL-280SA-072024 | 2700K–6500K | 80 | 150 | 1889–2031 | 67.6 | 10.14 | 186–200 |
| HUL-280SA-072024 | 2700K–6500K | 90 | 40 | 465–500 | 63.6 | 2.54 | 183–197 |
| HUL-280SA-072024 | 2700K–6500K | 90 | 70 | 805–866 | 64.8 | 4.54 | 177–191 |
| HUL-280SA-072024 | 2700K–6500K | 90 | 150 | 1662–1787 | 67.6 | 10.14 | 164–176 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 24 W |
| MAX Forward Current | 350 mA |
| Operating Temperature | -40 to 65℃ |
