Engineered Optical Solutions Behind Reliable LED Module Performance
By combining optical simulation, LED selection, lens & extender fitting, and manufacturing precision, we comprehensively enhance the light distribution of LED lighting modules, from beam angle optimization to glare control and optical efficiency. Higntek develops high-performance LED modules that provide uniform, efficient, and application-specific lighting.
Optical Challenges We Solve
The optical design of LED lighting modules directly affects light distribution and optical efficiency.
Uneven Light Distribution
Hot spots and dark areas reduce visual quality.
Excessive Glare Issues
Poor optical control creates uncomfortable lighting.
Incorrect Beam Angle Control
Beam angle mismatch with application requirements.
Low Optical Efficiency
Luminous flux loss leads to energy waste.
Our LED Module Optical Solutions
By integrating LED selection, optical design, simulation, and validation, Higntek develops customized LED modules with optimized light distribution, enhanced efficiency, and consistent visual performance.
LED Selection & Light Source Optimization
We select optimized LED chips based on CCT, CRI, efficacy, and consistency requirements to achieve stable color performance and higher luminous output.
Lens Design & Beam Angle Optimization
We can customize lens solutions and offer more than a dozen beam angles from 15° to 120° to improve light distribution, coverage efficiency, and application accuracy.
Diffusion & Glare Control Engineering
We optimize diffusers, optical layers, and shielding structures to reduce glare and achieve uniform illumination with improved visual comfort.
Optical Simulation & Performance Validation
We use optical simulation and photometric testing to verify beam patterns, uniformity, and lumen output before mass production.
What Is LED Optical Design?
When developing LED lighting modules, many customers initially focus on LED chips, power, and lumen output. However, simply focusing on “whether it emits light” is insufficient; light control must also be considered in conjunction with the lighting requirements of the luminaire. LED optical design refers to the engineering process of controlling the light emitted by the light-emitting diodes (LEDs) packaged on the LED module’s PCB board to achieve the desired brightness, beam angle, spot shape, uniformity, glare control, and visual experience. This process involves the design of components such as lenses, reflectors, and diffusers, as well as optical cavities, to achieve customized lighting for specific applications.
For professional lighting applications, optical design is not a dispensable improvement. It is a critical engineering stage that determines whether the LED module truly meets the requirements of the final luminaire. In many past LED module development and customization projects, I have found that many partners have a common misconception: higher lumen output means better lighting performance. In reality, luminous flux and light quality are two different things.
A well-designed LED module with good LED chips and electrical design can produce high lumens, but without proper optical control, the final luminaire may still have undesirable effects such as uneven brightness, uncontrolled lighting, excessive glare, low light utilization, visible light spots, and inconsistent appearance between luminaires. Developing an optical solution tailored to the specific needs of the lighting project can typically project more light precisely to the desired locations, thereby achieving higher effective illuminance.
Therefore, when receiving new LED lighting module development requests, we evaluate optical performance from a system perspective:
LED efficiency → Optical efficiency → Application efficiency
Our goal is not only to produce more light, but also to provide the most suitable light.
The Relationship Between Optical Efficiency, Light Distribution, and Visual Experience.
Successful LED optical design requires balancing three interrelated factors: optical efficiency, light distribution, and visual experience.
Optical Efficiency.
Optical efficiency is not merely at the LED chip level; it refers to the amount of light reaching the target application area after passing through optical components. At the LED module optical level, improper lens design, excessive diffusion, internal module reflection losses, and misalignment between the LED and secondary optical components all contribute to light loss. Efficient optical control can minimize unnecessary light loss while maintaining the desired lighting effect.
Light Distribution.
Different lighting applications require different light distribution patterns. For example:
- Spotlights require focused beam control.
- Linear office lights require a wide and uniform light distribution.
- Backlight modules require smooth illumination, avoiding visible light spots.
| Application | Typical Optical Requirement |
|---|---|
| Downlight | Controlled beam angle, low glare |
| Linear lighting | Wide distribution, high uniformity |
| Backlight | Smooth diffusion, no hotspots |
| Commercial display | Accurate directional control |
| Outdoor lighting | Long-distance beam management |
The same LED package can provide completely different light distribution effects for actual luminaires due to differences in optical structure. To achieve the required light distribution for a lighting project, simply selecting LED chips is insufficient; the design of the optical system must be tailored to the end application.
Visual Experience.
Lighting is ultimately experienced through human perception, not simply by piling on technical parameters. Even technically high-brightness LED modules can still result in a poor visual experience if they cause discomfort or uneven lighting. This mindset drives us to insist on engineering-based manufacturing of LED modules, rather than becoming a supplier that only produces simple lighting products.
Important visual factors include: glare level, brightness uniformity, color consistency, color reproduction, shadow quality, and perceived comfort.
How Does Optical Design Affect LED Module Performance?
Optical design directly impacts the luminous efficacy, beam angle, light distribution, uniformity, glare, and color consistency of LED modules, encompassing both luminous efficiency and user experience.
Improving Luminous Efficacy and Luminous Flux.
Optical design must adhere to a fundamental principle: avoiding excessive loss of luminous efficacy from the LED output. LED chips, due to their specifications, packaging materials, and structure, may possess high luminous efficacy levels, but without proper optical control, some luminous flux will be filtered and lost. Through lens selection, beam distribution profile adjustment, and diffusion optimization, optical design can reduce unnecessary light loss and improve light utilization, achieving the desired illumination with lower power consumption.
In many energy-saving lighting projects, our engineers can reduce the number of LEDs or energy consumption while maintaining the same lighting effect by improving optical efficiency. This is particularly important for commercial lighting applications operating for thousands of hours annually.
Controlling the Beam Angle.
The beam angle determines the diffusion range of the beam. A narrow beam concentrates light into a smaller area, while a wide beam provides broader coverage. In the complete LED lighting module development process, we work with customers to define the required beam distribution angle before selecting appropriate optical lenses. Even if the LED module itself has good performance, choosing the wrong beam angle will not meet the actual lighting needs.
| Beam Characteristic | Suitable Application |
|---|---|
| Narrow beam | Spotlight, accent lighting |
| Medium beam | Downlight, retail lighting |
| Wide beam | Office, linear lighting |
| Diffused output | Panel, backlighting |
Uniform light distribution.
Uniformity is one of the most significant optical challenges in LED luminaires. Illumination defects such as bright spots near LEDs, dark areas between LED packages, and uneven edge brightness are all caused by poor optical management. Our engineers improve uniformity by adjusting LED spacing, lens materials, diffuser materials, and LED current distribution.
One practical lesson we’ve learned from our development experience is that increasing LED density is not always the best solution to eliminate bright spots.
Reduce Glare.
Glare occurs when excessive light enters the field of vision and causes visual discomfort. Glare control has become a crucial design consideration for office lighting, commercial environments, and educational spaces. Our glare reduction optical solutions in developing LED lighting modules include optimized beam angles, anti-glare lenses, and diffuser configurations. LED modules developed in this way provide ample illumination while maintaining the comfort of direct light.
Color Consistency of LED Modules.
Color consistency is another optical factor directly impacting product quality.
Even using LED chips of the same specifications, differences in optical materials and light mixing methods can affect the final light effect. When mass-producing LED modules, we consult with customers on the following factors: LED Binning selection, optical mixing distance, diffuser characteristics, and color measurement verification.
Color consistency is evaluated using parameters such as Color Temperature (CCT) and Color Difference Correction Modulus (SDCM). Color consistency is critical for projects requiring consistent visual effects across hundreds or thousands of luminaires.
Optical design aims to do more than just increase LED brightness. Instead, it’s about creating lighting that provides the right amount of light, the right direction, and the right visual experience.
How Do You Design the Light Distribution of an LED Module?
Based on our experience developing customized LED modules, optical design should not be considered a separate step after module development. Incorporating optical factors from the outset leads to better desired lighting effects. As an engineering-driven LED module manufacturer, we help customers transform their lighting needs into manufacturable solutions by providing rational LED selection, LED spacing layout, and lens and diffuser adaptation based on their specified mixing distance and mechanical design for the luminaires. Before developing a specific optical control scheme, we typically define five key optical objectives.
| Optical Goal | Engineering Meaning |
|---|---|
| Light intensity | How much light reaches a specific area |
| Beam angle | How widely the light spreads |
| Uniformity | How evenly light is distributed |
| Beam shape | The pattern and direction of illumination |
| Optical efficiency | How much LED output becomes useful light |
Starting with LED selection.
The first step in achieving the desired lighting effect is selecting the appropriate LED chip. Different LED specifications have different emission modes, light intensity distribution curves, viewing angles, packaging structures, and luminous characteristics. These factors directly affect the controllability of the light. It directly impacts the overall luminous efficacy, color temperature ratio (CCT/CRI), beam angle, and lifetime of the luminaire.
If the luminous performance of the LED does not match the optical structure, it may cause additional light loss or unnecessary glare. During LED module development, we evaluate the optical characteristics of the LED in conjunction with the final application requirements, selecting a suitable chip from our library of over 2000 components.
Optimize LED layout design.
The spacing between LEDs directly affects illumination uniformity. When the LED spacing is too large, the module may exhibit noticeable bright spots and dark areas. However, while a smaller LED spacing can achieve better uniformity, it increases overall cost, power consumption, and heat load.
During our engineering design process, we determine the ideal LED spacing through a comprehensive analysis of optical distances, optical components, and electrical requirements, rather than simply increasing the number of LEDs.
Lens Selection.
Lens are one of the most important tools in LED lighting modules for shaping the direction of LED beams. Different lens angles and curvatures produce different optical effects.
| Lens Type | Typical Effect | Beam distribution angle |
|---|---|---|
| Narrow beam lens | Concentrates light for focused applications | 5°, 8°, 10°, 15°, 25°, etc. |
| Medium beam lens | Balances intensity and coverage | 30°, 45°, 60°, 80°, etc. |
| Wide beam lens | Provides broader illumination | 90°, 120°, 140°, 150°, 160°, etc. |
| Batwing distribution lens | Improves spacing and uniformity in linear lighting | Many customizable options available. |
For example, spotlight modules may require a narrow beam angle of around 15°–30° to highlight specific objects. Commercial linear lighting modules may require a wider beam angle (typically greater than 90°) to create comfortable area lighting. In certain special road lighting or special art washes, irregular light spots such as ellipses or rectangles can be created. The key is to select a lens that matches the lighting target, not necessarily the lens with the largest or smallest angle.
Integrated Diffusers.
Diffusers are typically used when projects require smooth, comfortable light output. Diffusers help reduce visible LED spotlights and glare to achieve uniformity and visual comfort. However, diffusion always requires trade-offs. More effective diffusion improves visual uniformity, but at the same time, it results in a luminous flux loss of approximately 5–13%.
In our development of complete LED modules, we do not simply choose the material with the strongest diffusion performance. Instead, we will evaluate based on factors such as LED spacing, transmittance, and diffusion.For example, a diffuser with 85% transmittance differs from one with 95% transmittance in terms of light loss and uniformity. The optimal choice depends on whether the project prioritizes visual comfort, brightness, or energy efficiency.
The above four optical design directions are ones that Higntek can independently complete when it receives customer LED module development requests. However, since the overall appearance and size of the lighting fixtures are determined by the customer, there are several aspects that require special attention, as they directly affect the light distribution of the LED modules.
- Optical Cavity Design:The optical cavity is the physical space between the LED light source and the final light output surface, directly affecting the uniformity of light mixing. Too short an optical distance may result in visible LED bright spots. While a longer mixing distance can improve uniformity, it increases the luminaire size. We must consider the optical cavity space of the customer’s current luminaire when designing LED layout and optical component adaptation.
- Mechanical Structure:Even minor structural changes can affect light characteristics. For example, displacement or alteration of LED mounting position, optical component alignment, and distance will all affect the final optical performance.
This is one of the reasons why we communicate closely with the customer’s mechanical engineers during LED module development. Based on our experience, LED module light distribution design is a customized systems engineering process that requires consideration of many factors. There is no single universal optical structure suitable for all lighting needs.
Higntek approaches LED optical design from both manufacturing and engineering perspectives. By integrating LED selection, optical structure, mechanical design and manufacturing capabilities, we help lighting companies and brands develop LED modules with controllable light distribution, high efficiency and long-term stable performance.

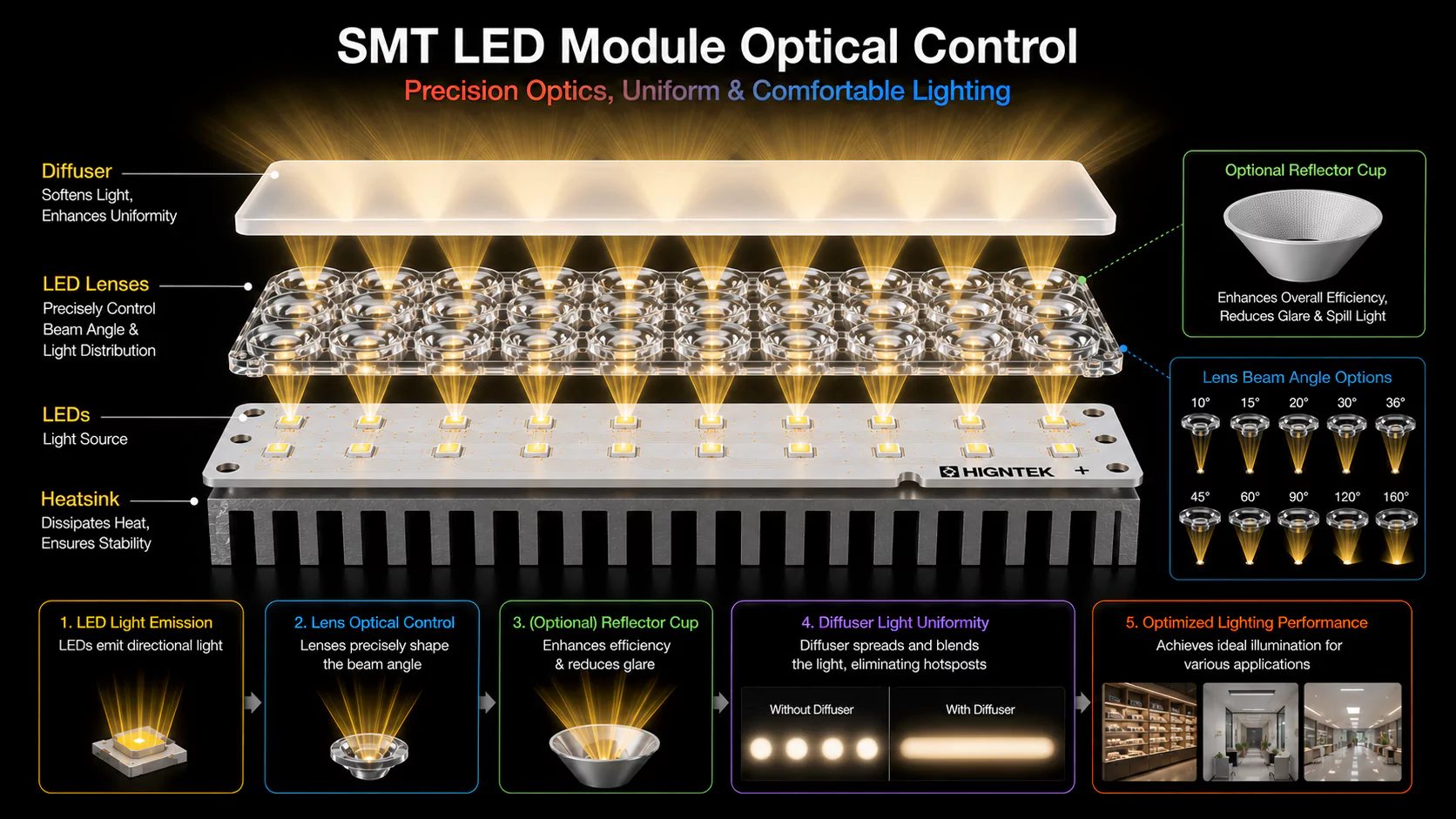

Which Components Do We Use to Achieve Optical Control in LED Modules?
High-performance LED lighting modules do not achieve precise light control with a single component, but rather as the result of the entire optical system working together, where the LED light source, lens, reflector, diffuser, and optical cavity all contribute. Each optical component affects different aspects of lighting performance.
- LED Chip: The LED chip is fundamental to the light source, determining the initial light output and emission characteristics. During our development process, we evaluate LED chips based on various factors, including voltage power, brightness, size specifications, color temperature, and color rendering index.
| LED Chip Factor | Impact on Optical Performance |
|---|---|
| Chip size | Influences light intensity distribution and optical coupling |
| Luminous output | Determines available brightness and efficiency |
| Viewing angle | Affects beam design and light mixing |
| Color consistency | Influences fixture-to-fixture appearance |
| CCT requirement | Determines color temperature performance |
| CRI requirement | Affects color rendering quality |
- Lens: LED light typically diffuses according to the package’s natural emission pattern. Lenses allow engineers to control the beam angle and direction, reshaping the light into a controllable distribution (narrow beam control, wide-angle illumination, asymmetric distribution). For customized LED module projects, we also consider the compatibility between the lens and assembly tolerances, LED positioning accuracy, and long-term material stability.
| Lens Parameter | Engineering Consideration |
|---|---|
| Beam angle | Must match lighting distance and coverage area |
| Optical efficiency | Determines how much light reaches the target area |
| Material transparency | Affects transmission loss |
| Temperature resistance | Important for long-life operation |
| Mechanical tolerance | Affects consistency during mass production |
- Reflector: Reflectors are typically used when the goal is to improve optical efficiency. The main function of a reflector is to redirect light that would otherwise be scattered in unwanted directions, improving light concentration and beam control. Commonly used in downlights, spotlights, and directional lighting fixtures.
Poor reflector geometry can lead to uneven brightness, unwanted shadows, or increased glare. Therefore, during optical development, we simultaneously evaluate reflector geometry, LED placement, and lens characteristics, as these components interact with each other. - Diffusers: Diffusers help reduce visible LED spotlight, brightness fluctuations, and harsh contrast, balancing light uniformity and visual comfort. However, diffusion always requires trade-offs, as some light will be scattered or absorbed, reducing optical efficiency. Therefore, when designing solutions for clients, we don’t simply choose the diffuser material with the highest intensity, but rather conduct a comprehensive evaluation considering LED spacing, optical distance, and transmittance.
| Diffuser Design Priority | Possible Result |
|---|---|
| High diffusion | Better uniformity, lower efficiency |
| Low diffusion | Higher efficiency, more visible hotspots |
| Optimized diffusion | Balanced performance |
- Optical Cavity & Mixing Chamber: Optical cavities and mixing chambers are often overlooked, but they provide sufficient space for light mixing. A well-designed optical cavity can improve color uniformity, brightness consistency, and reduce hot spots. This is especially important in side-lit and backlit lighting.
Based on our past experience in LED module development, some uniformity issues, if not resolved by replacing LEDs or adding optical components, require adjustments to the cavity geometry, LED spacing, and reflective surface.
Therefore, we view optical design as a systems engineering process, finding the optimal balance between optical efficiency, uniformity, glare control, and manufacturing feasibility.
How Do Our Engineers Verify the Performance of LED Optical Designs?
Sometimes, a CAD model delivered by a customer that looks correct doesn’t necessarily mean the optical design is entirely correct. In the actual development of LED lighting modules, in order to ensure that customers receive the lighting modules they expect, the optical solutions for each customized project need to be physically verified at the beginning, because material properties, assembly tolerances and thermal conditions will affect the final result. Higntek’s optical validation process typically includes five stages:
Optical Simulation.
Before prototype development, engineers use optical simulation tools to predict light distribution, beam angle, illumination uniformity, and optical efficiency. Simulation helps identify potential problems early and provides directions for optical optimization, reducing unnecessary prototype iterations.
Prototype Development.
After simulation optimization, we build LED module prototypes using selected LEDs,PCB designs, lenses, diffusers, and mechanical structures. This stage allows us to evaluate the optical performance of the actual lighting module, rather than relying solely on theoretical data.
Optical Performance Testing.
Key parameter testing for the LED module prototype includes luminous output, luminous efficiency, beam distribution, color consistency, and visual uniformity. Test data provides actionable feedback for further optimization. If prototype testing meets standards, mass production can proceed according to the existing engineering plan.
Engineering Optimization.
Based on simulation and prototype test results, our engineers make engineering adjustments according to test data feedback and customer needs. These include measures such as optimizing LED spacing, selecting lenses and reflectors, adjusting diffuser structure, or adjusting electrical drive parameters. Our goal is not merely to achieve a specific value, but to find the optimal balance between performance, reliability, and manufacturability.
Mass Production Validation.
A successful prototype must be able to be stably mass-produced. Before mass production, we review the BOM and design drawings again to ensure component consistency, assembly tolerances, optical performance repeatability, and quality control standards. A design that performs well in a single sample must maintain consistent performance across thousands of modules.
With optical simulation capabilities, custom lens development, testing equipment, and engineering validation processes, Higntek helps customers transform optical concepts into reliable LED module products. For us, optical design is more than just creating beautiful light. It’s about scientifically controlling light and ensuring that the expected performance is achieved from prototype development to mass production.
How Does LED Package Design Affect Light Distribution?
LEDs have different packaging structures, which directly affect how light leaves the LED and its optical performance. Different LED package types have different emitting areas, beam angles, and light patterns. The LED packaging material determines the light mixing performance and long-term reliability. In LED selection for LED module development, we comprehensively consider LED chip packaging and optical components to achieve a balance between brightness and uniformity. Click to view a detailed guide to LED chip packaging technology types.
What Is LED Beam Angle?
LED beam angle describes how widely light spreads from the LED source. A narrow beam concentrates light into a smaller area, while a wide beam provides broader coverage with softer illumination. Choosing the right beam angle depends on the application, not only brightness requirements. For example, spotlights need controlled narrow beams, while office and linear lighting usually require wider and more uniform distribution.
How Do LED Modules Reduce Glare?
LED modules reduce glare by controlling where and how light leaves the source. Common methods include optical shielding, diffuser materials, lens optimization, and better light distribution design. In our experience, glare is often caused by poor system matching rather than excessive brightness alone. A well-designed module balances illumination level and visual comfort, especially for offices, retail spaces, and indoor environments.
What Optical Tests Are Performed on LED Modules?
LED modules are typically evaluated through tests such as integrating sphere measurement, goniophotometer testing, IES file generation, beam angle analysis, and color measurement. These tests verify lumen output, efficiency, distribution pattern, and color consistency. During module development, we use optical testing not only for certification but also to compare design options and improve real-world lighting performance.
Why Do LED Modules Have Hot Spots and Uneven Lighting?
Hot spots usually happen because of incorrect LED spacing, unsuitable lenses, poor diffusion, or insufficient mixing distance. Increasing LED quantity is not always the best solution. A better approach is to redesign the optical system by balancing LED layout, lens structure, and diffuser performance. This is a common issue we help customers solve during customized LED module development.
Why Does an LED Module Lose Optical Efficiency?
LED modules lose optical efficiency mainly because of light absorption, lens transmission loss, reflector loss, and thermal effects. Even high-performance LEDs cannot deliver their full output if optical components are poorly matched. In engineering projects, we focus on the complete optical path—from LED emission to final light output—to minimize unnecessary energy loss.
Why Does LED Color Variation Occur in Lighting Applications?
LED color variation can result from LED bin differences, incomplete light mixing, phosphor variations, and viewing angle effects. Even LEDs from the same batch may show slight differences without proper optical control. For professional lighting applications, we manage color consistency through careful LED selection, optical mixing design, and color measurement during development and production.
How Is Optical Design Different for Linear LED Modules?
Linear LED modules require special attention to continuous brightness and hotspot prevention. Because users often view long lighting surfaces directly, small optical defects become more noticeable. We usually optimize LED spacing, diffuser selection, lens structure, and mixing distance to create smooth linear illumination.
How Is Optical Design Optimized for Downlight LED Modules?
Downlight optical design focuses on beam control, glare reduction, and comfortable illumination. The lens or reflector must work together with the LED source to achieve the desired beam angle and reduce excessive brightness at the viewing angle. For commercial and office applications, optical design also considers UGR requirements to improve visual comfort.
How can I work on a project with Hignetek?
You can send us your design files or requirements. Our engineering team will provide technical assessment, communication guidance, and a quotation. Once cooperation is confirmed, we will arrange for component procurement, manufacturing, inspection and testing, packaging, and shipping.
Do you support OEM and ODM manufacturing services?
Yes. Higntek provides end-to-end OEM and ODM manufacturing services for outdoor LED modules. We support engineering design, LED PCB assembly, optical layout optimization, testing, and scalable mass production. Many customers come to us not only for manufacturing capacity, but also for practical engineering support during product development and project integration.
Do you accept small-batch orders or only large-scale production?
We support prototyping and small-batch orders to facilitate low-cost testing for our customers. We also support large-scale production and maintain consistent quality control.
How do you ensure quality consistency in large orders?
We ensure quality consistency in large-batch orders through the following methods: raw material inspection upon arrival, die bonding/dispensing/wire bonding inspection during production, AOI/X-ray/functional testing, aging testing, and traceability management.
How quickly can I get samples or quotations?
We usually provide quotations within 24 hours after receiving project details. Sample or prototype lead time depends on customization complexity, material availability, and testing requirements. For faster evaluation, I always suggest sharing application drawings, target dimensions, or lighting requirements early so we can recommend the right module faster.
How do you control product quality during production?
We apply a traceable quality control process across material inspection, SMT production, AOI/X-ray inspection, functional testing, aging tests, waterproof verification, and final performance testing. In our experience, consistent production control matters more than isolated sample performance. That’s why we focus on process stability, thermal consistency, and long-term reliability validation throughout mass production.
What is your typical lead time for prototype and mass production?
Prototypes are typically delivered within 5-7 days. The mass production cycle for standard LED modules is approximately 10-15 days. Specific lead times will vary depending on quantity, specifications, and degree of customization. We typically assess technical parameters and inventory status comprehensively to recommend suitable solutions for our clients.
How Is Optical Design Developed for Backlight LED Modules?
Backlight LED module design focuses on achieving high brightness uniformity across the entire surface. Engineers typically optimize LED spacing, light mixing distance, reflective layers, and diffuser plates to eliminate bright spots and dark areas. A successful backlight design requires careful balance between module thickness, efficiency, and uniform illumination.
How Do Outdoor LED Modules Achieve Better Light Distribution?
Outdoor LED modules achieve better distribution through precise beam control, asymmetric optics, durable optical materials, and weather-resistant designs. Unlike indoor lighting, outdoor applications often require longer throw distances and controlled illumination areas. We design outdoor optical solutions by considering both light performance and environmental reliability, ensuring stable operation in demanding conditions.
