204LM/W 12V Flexible LED Strip Light with 80 LEDs
HIGNTEK HUS-008SA-012080
The 2835 Series Flexible LED Strip is designed for ultra-high-efficiency decorative lighting. At 8mm wide with 80 high-efficacy LEDs per meter, it offers excellent brightness, color rendering, and uniform light diffusion. Flexible and cuttable, it allows easy customization without affecting performance.
Features And Benefits
- Input Voltage: DC12V Typical Applications:
- Powe: 5W/M Strip Light
- Luminous Flux: Up to 1020 lm Wall lamp
- Luminous Efficacy: Up to 204 lm/W Decorative lighting
- CCK: 2700K–6500K
- Color Rendering Index: 80–90
- Beam Angle: 120°
- IP Grade: IP20
- Packaging: 5 meters per reel
- CE, ROHS, ERP compliance
- 5-year limited guarantee

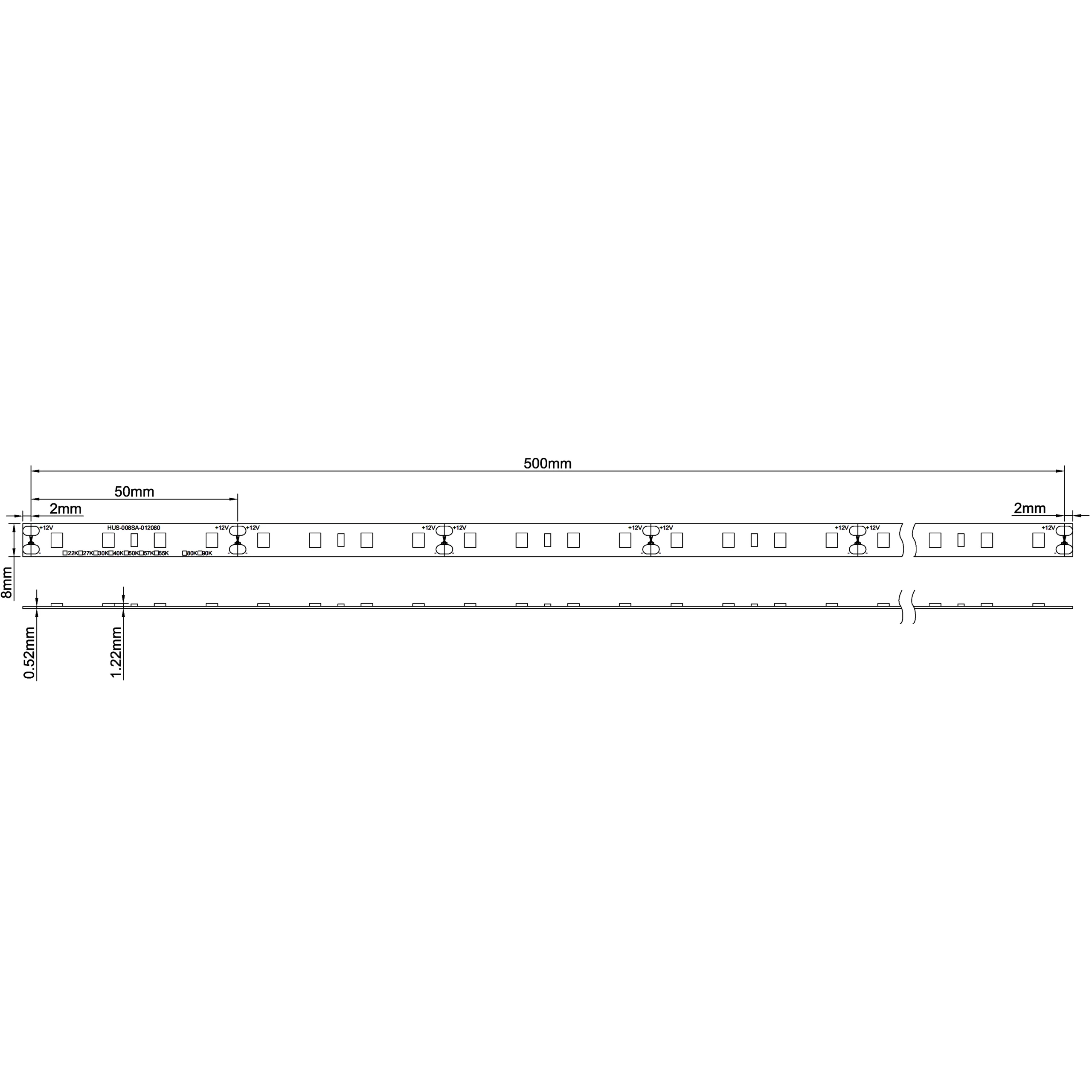

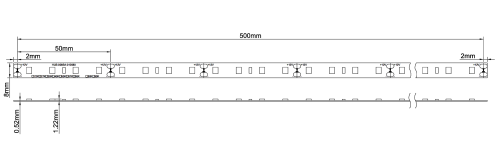

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUS-008SA-012080 is measured under the specified test current at Tj = 25 °C.
| Type | CCT（K） | CRI (Ra) | Current（mA/M） | Luminous Flux（lm/M） | Luminous Flux（LM/W/M） |
|---|---|---|---|---|---|
| HUS-008SA-012080 | 2700K–6500K | 80 | 417 | 938-1020 | 188–204 |
| HUB-008SA-012080 | 2700K–6500K | 90 | 417 | 826-898 | 165–180 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
- The working power tolerance is approximately ±0.5W.
| Parameter | Rating |
|---|---|
| MAX Power | 40 W/M |
| MAX Forward Current | 1500 mA |
| Operating Temperature | -40 to 65℃ |
- The limit parameters of the LED board are not applicable to normal operation.
Primary Application
Overview of Services
Each Higntek LED module is designed from the customer’s perspective, based on specific application requirements. We provide fully customized solutions.
From optical performance to thermal management and system integration, every parameter can be precisely configured to ensure optimal efficiency, reliability, and lighting experience.
Size
Full size / Cut size
CCT Range
2200K – 6500K
CRI Options
80 / 90 / 95+
Thermal
Thermal design / structure
Luminous Efficiency
up to 225 lm/W
LEDs
Brand & Model
Electrical
Voltage & Power
PCB
Material/Copper thickness/Process
Connector
Type/Number of interfaces/Layout
Electronic components
Component type/Specification
Optical lens
Type/Brand/Model/Beam angle
Driver
Brand/Model/Dimming method/Electrical
