210lm/W High-Efficacy Outdoor Modules 4×8 LUMILEDS LED
HIGNTEK HUO-223SA-048032

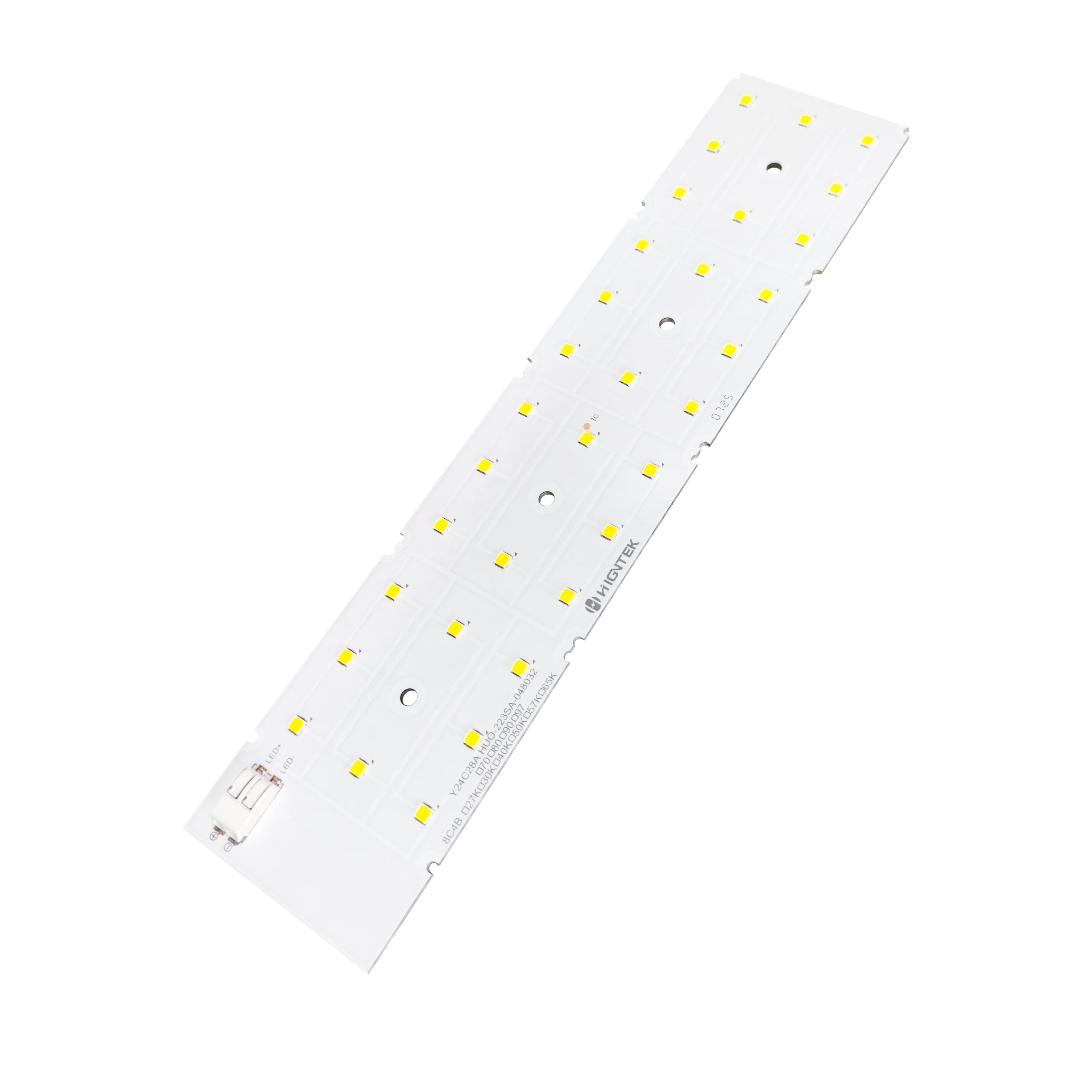

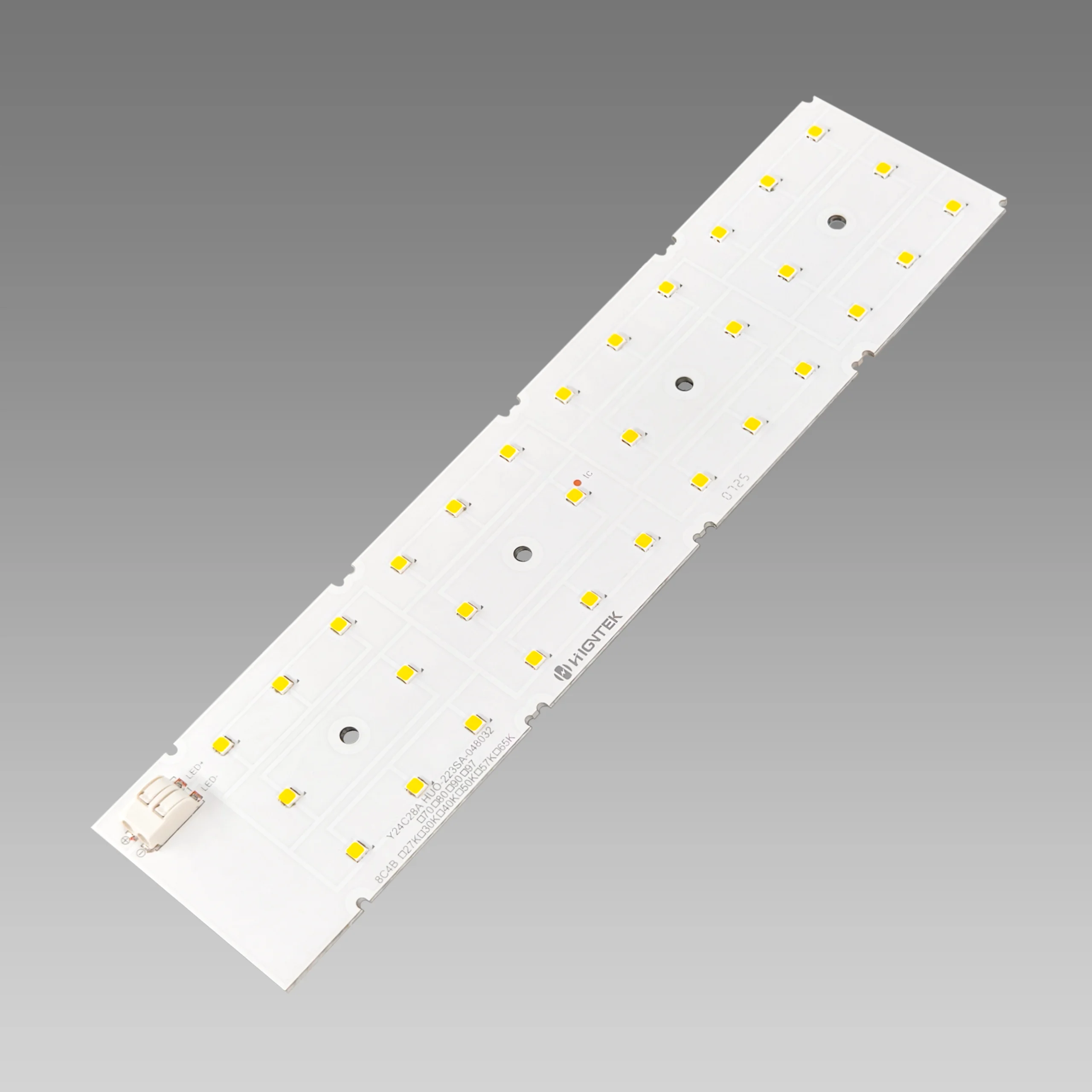

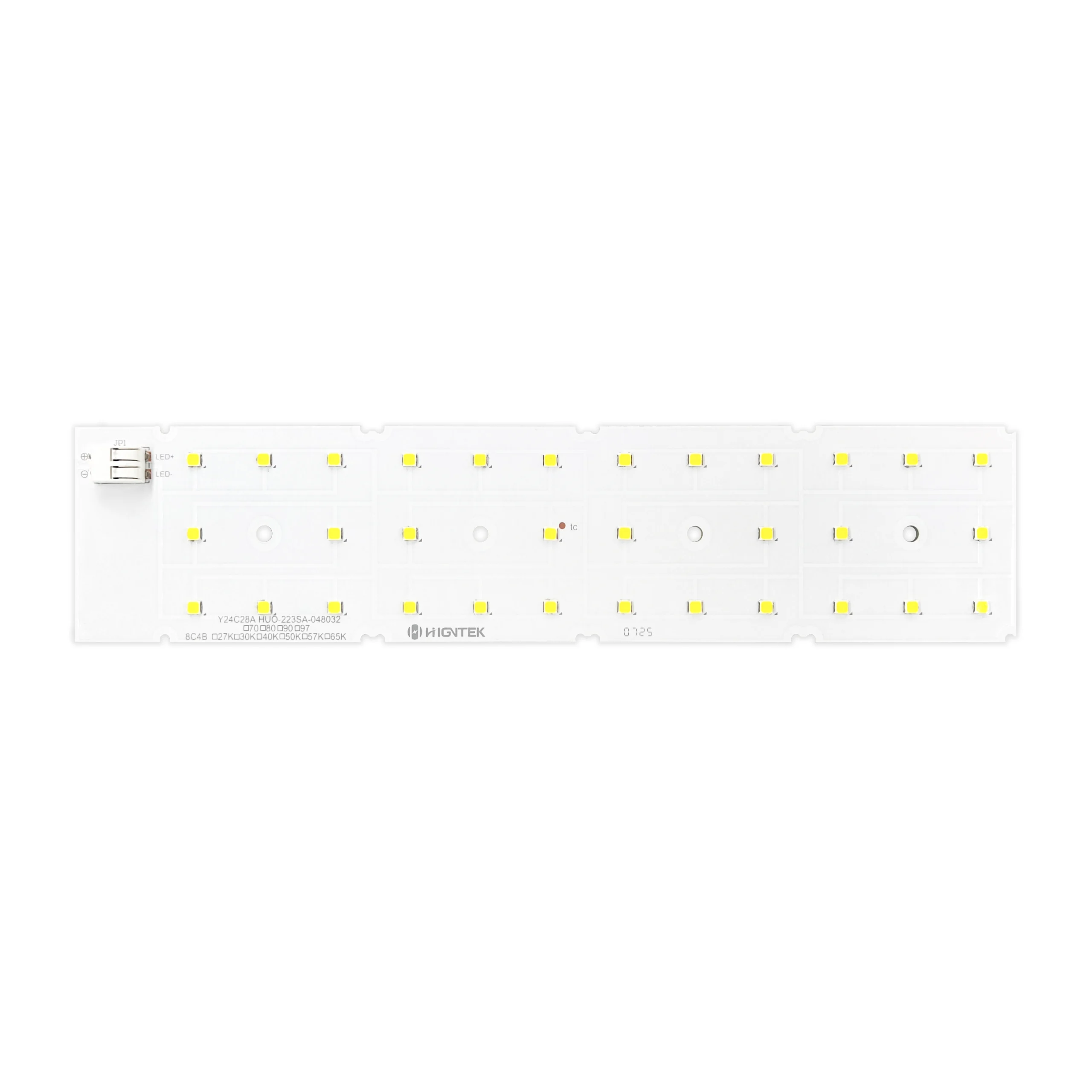

The module measures 49.5 × 223 mm and features 32 high-efficacy 3030 LEDs, delivering excellent brightness while maintaining cost efficiency. The evenly arranged LEDs ensure uniform light distribution and consistent color quality. At the rated current and Tp = 25 °C, the module achieves a luminous flux of approximately 4880 lm. It is a high-performance LED module engineered for demanding outdoor illumination, including street lights, tunnel lighting, and industrial area applications.
Features And Benefits
- Input Voltage: 43.2-48V Typical Applications:
- Powe: 20-52W Street light
- Luminous Efficacy: Up to 210 lm/W Flood and area lighting
- CCK: 2700K–6500K Tunnel lighting
- Color Rendering Index: 70–80
- Beam Angle: 120°
- IP Grade: IP20
- Push-in connectors enabling automated wiring
- Long life-time: >50,000 hours
- CE, ROHS, ERP compliance
- 5-year limited guarantee

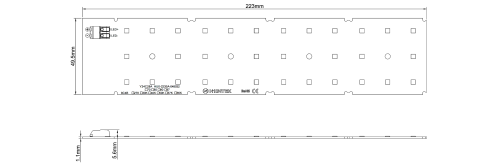

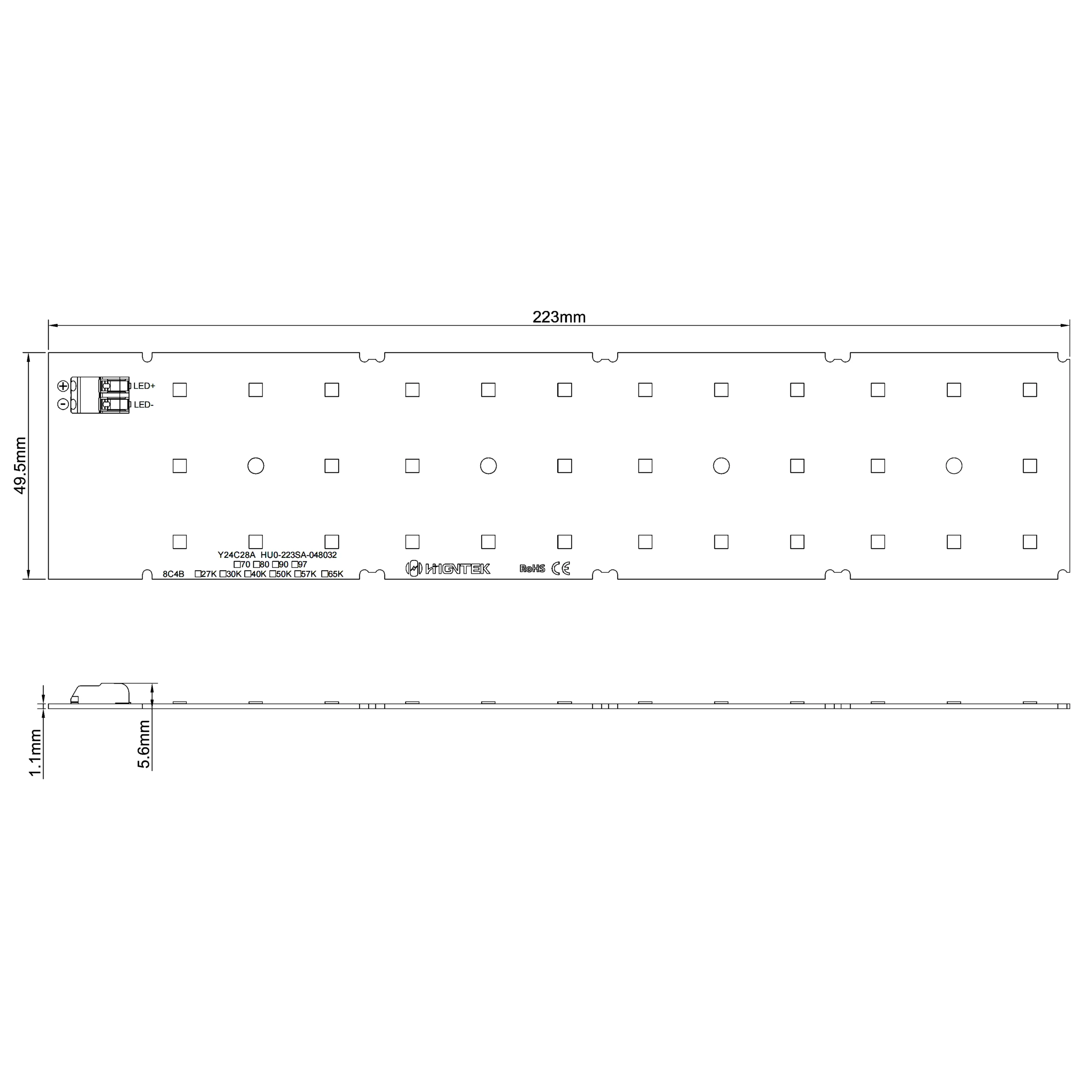

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUO-223SA-048032 is measured under the specified test current at Tj = 25 °C.
| Type | CCT (K) | CRI (Ra) | Current (mA) | Luminous Flux (lm) | Forward Voltage (V) | Power (W) | Luminous Efficiency (lm/W) |
|---|---|---|---|---|---|---|---|
| HUO-223SA-048032 | 2700K–6500K | 70 | 450 | 3911-4205 | 44.5 | 20.03 | 195–210 |
| HUL-223SA-048032 | 2700K–6500K | 70 | 530 | 4538-4880 | 44.9 | 23.80 | 190–205 |
| HUL-223SA-048032 | 2700K–6500K | 70 | 780 | 6363–6842 | 45.9 | 35.80 | 178–191 |
| HUL-223SA-048032 | 2700K–6500K | 80 | 450 | 3637-3911 | 44.5 | 20.03 | 182–195 |
| HUL-223SA-048032 | 2700K–6500K | 80 | 530 | 4221–4538 | 44.9 | 23.80 | 177–191 |
| HUL-223SA-048032 | 2700K–6500K | 80 | 780 | 5918–6333 | 45.9 | 35.80 | 165–178 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 52 W |
| MAX Forward Current | 1050 mA |
| Operating Temperature | -40 to 85℃ |
