209lm/W High-Efficacy Outdoor Modules 3×8 LUMILEDS LED
HIGNTEK HUO-172SA-036024

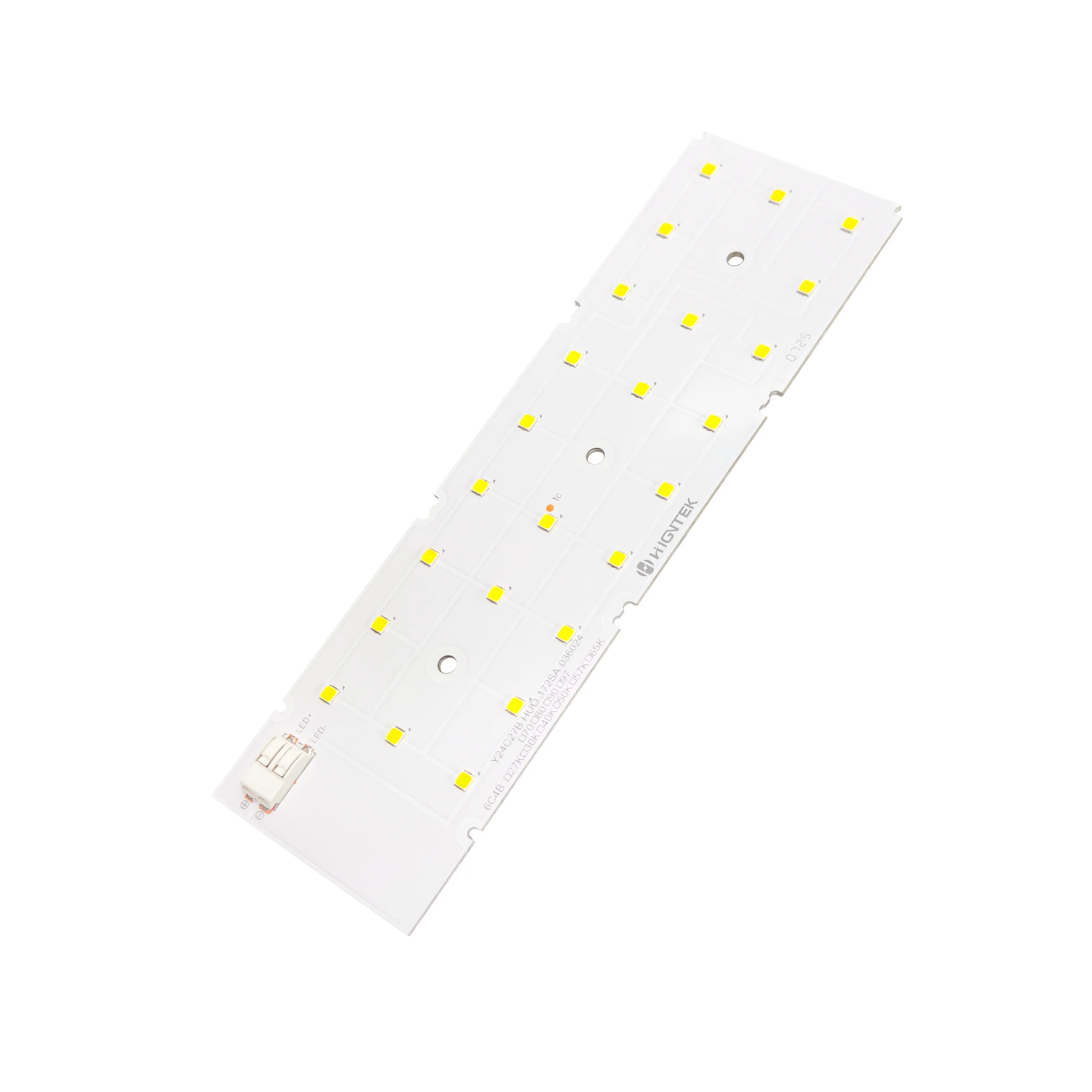

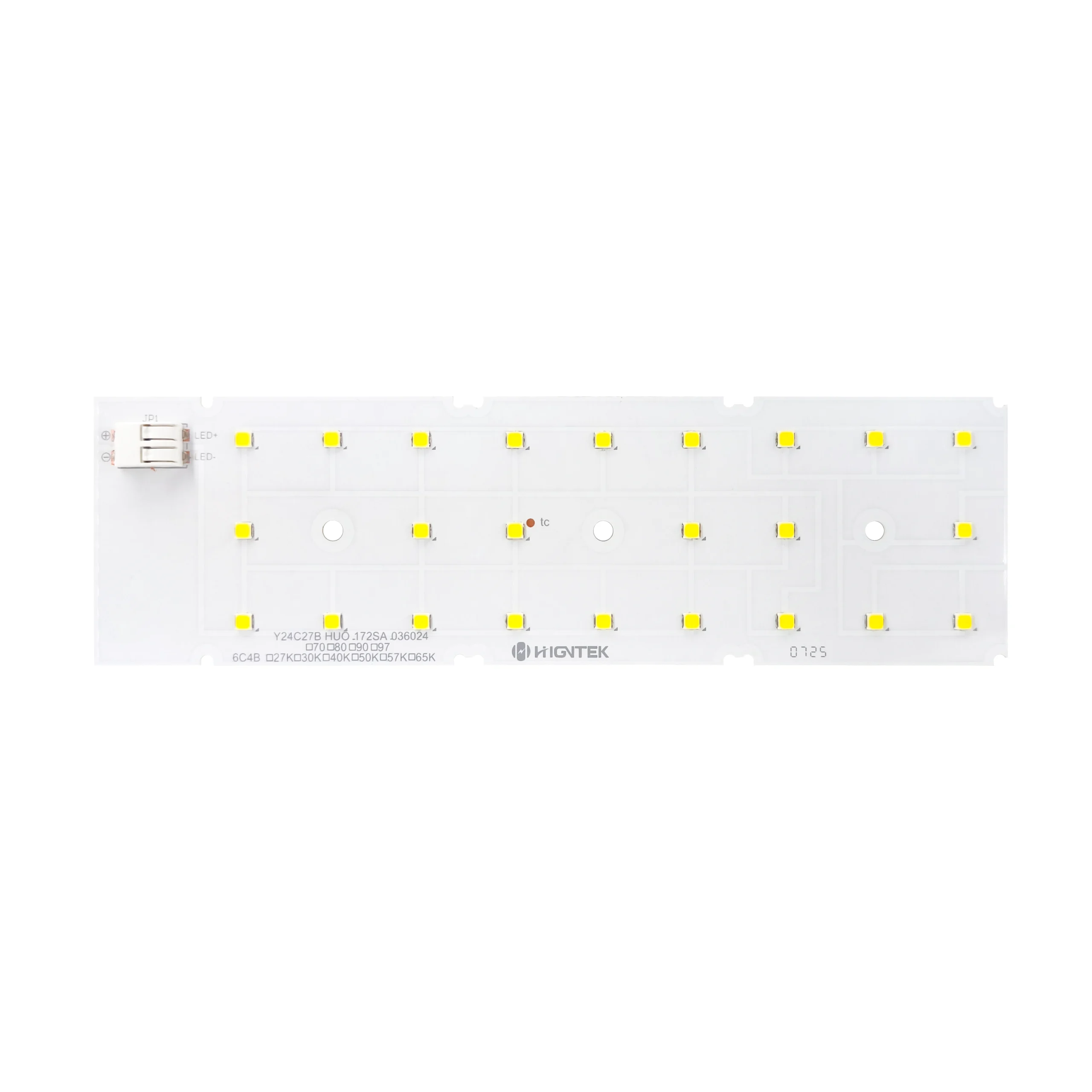

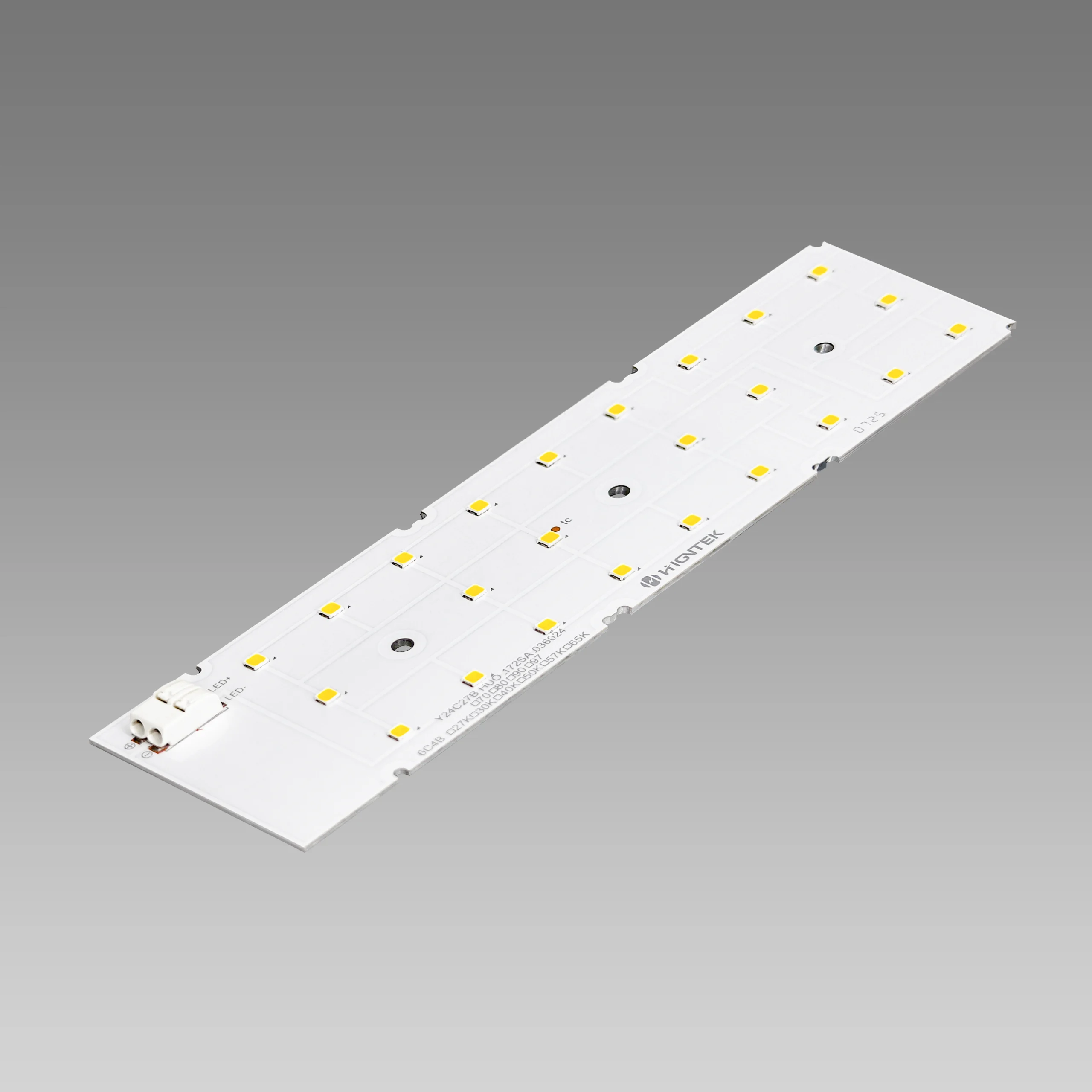

The module measures 49.5 × 172.2 mm and features 24 high-efficacy 3030 LEDs, delivering excellent brightness while maintaining cost efficiency. The evenly arranged LEDs ensure uniform light distribution and consistent color quality. At the rated current and Tp = 25 °C, the module achieves a luminous flux of approximately 3640 lm. It is a high-performance LED module engineered for demanding outdoor illumination, including street lights, tunnel lighting, and industrial area applications.
Features And Benefits
- Input Voltage: 32.4-36V Typical Applications:
- Powe: 15-39W Street light
- Luminous Efficacy: Up to 209 lm/W Flood and area lighting
- CCK: 2700K–6500K Tunnel lighting
- Color Rendering Index: 70–80
- Beam Angle: 120°
- IP Grade: IP20
- Push-in connectors enabling automated wiring
- Long life-time: >50,000 hours
- CE, ROHS, ERP compliance
- 5-year limited guarantee

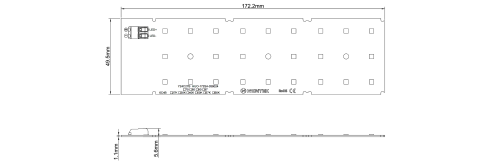

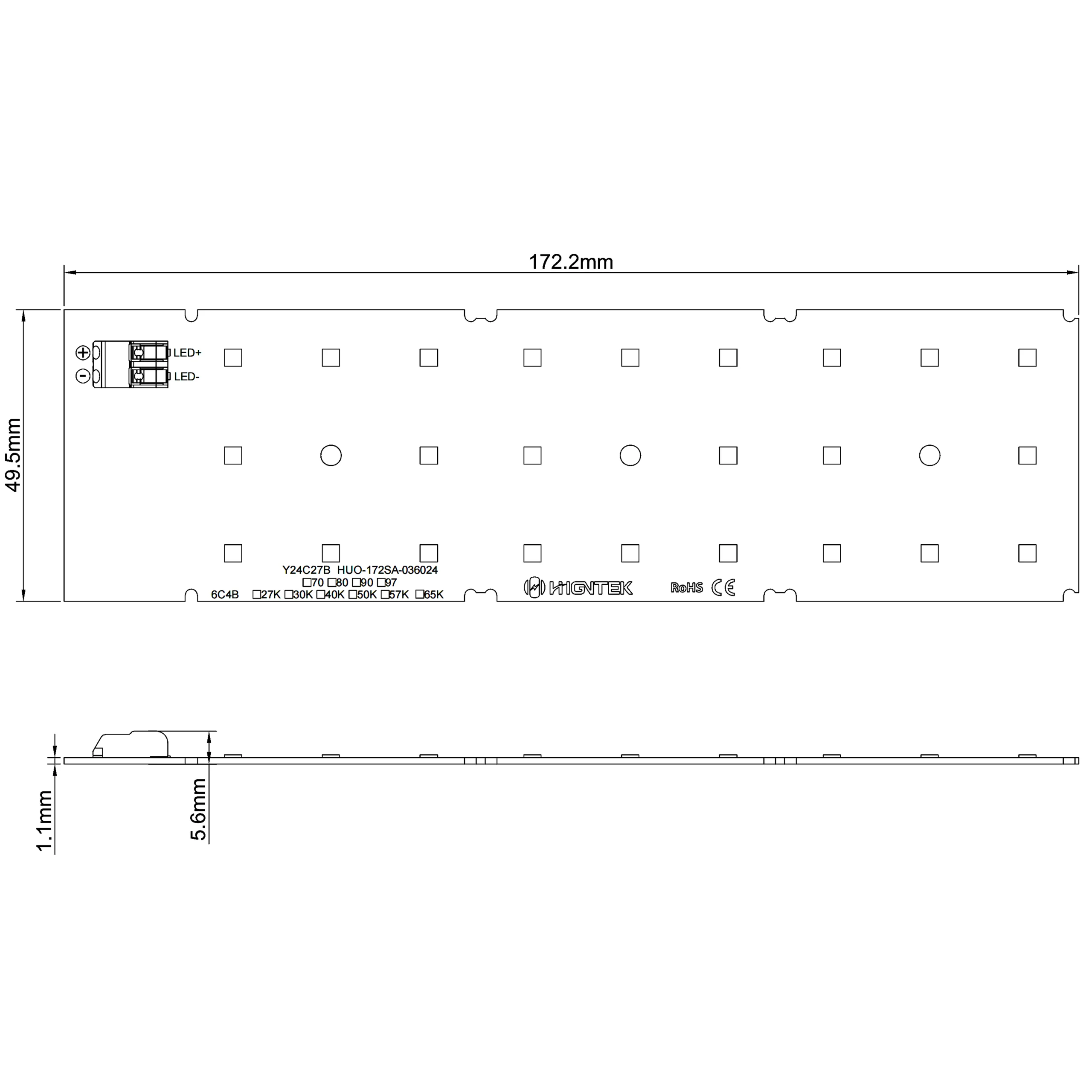

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUO-172SA-036024 is measured under the specified test current at Tj = 25 °C.
| Type | CCT (K) | CRI (Ra) | Current (mA) | Luminous Flux (lm) | Forward Voltage (V) | Power (W) | Luminous Efficiency (lm/W) |
|---|---|---|---|---|---|---|---|
| HUO-172SA-036024 | 2700K–6500K | 70 | 470 | 3072-3303 | 33.6 | 15.79 | 195–209 |
| HUL-172SA-036024 | 2700K–6500K | 70 | 530 | 3379-3633 | 33.7 | 17.86 | 189–203 |
| HUL-172SA-036024 | 2700K–6500K | 70 | 1050 | 6183–6648 | 35.6 | 37.38 | 165–179 |
| HUL-172SA-036024 | 2700K–6500K | 80 | 470 | 2857-3072 | 33.6 | 15.79 | 181–195 |
| HUL-172SA-036024 | 2700K–6500K | 80 | 530 | 3142–3377 | 33.7 | 17.86 | 176–189 |
| HUL-172SA-036024 | 2700K–6500K | 80 | 1050 | 5750–6183 | 35.6 | 37.38 | 154–165 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 39 W |
| MAX Forward Current | 1050 mA |
| Operating Temperature | -40 to 85℃ |
