216lm/W High-Efficacy Outdoor Modules 2×4 LUMILEDS LED
HIGNTEK HUO-120SA-024008

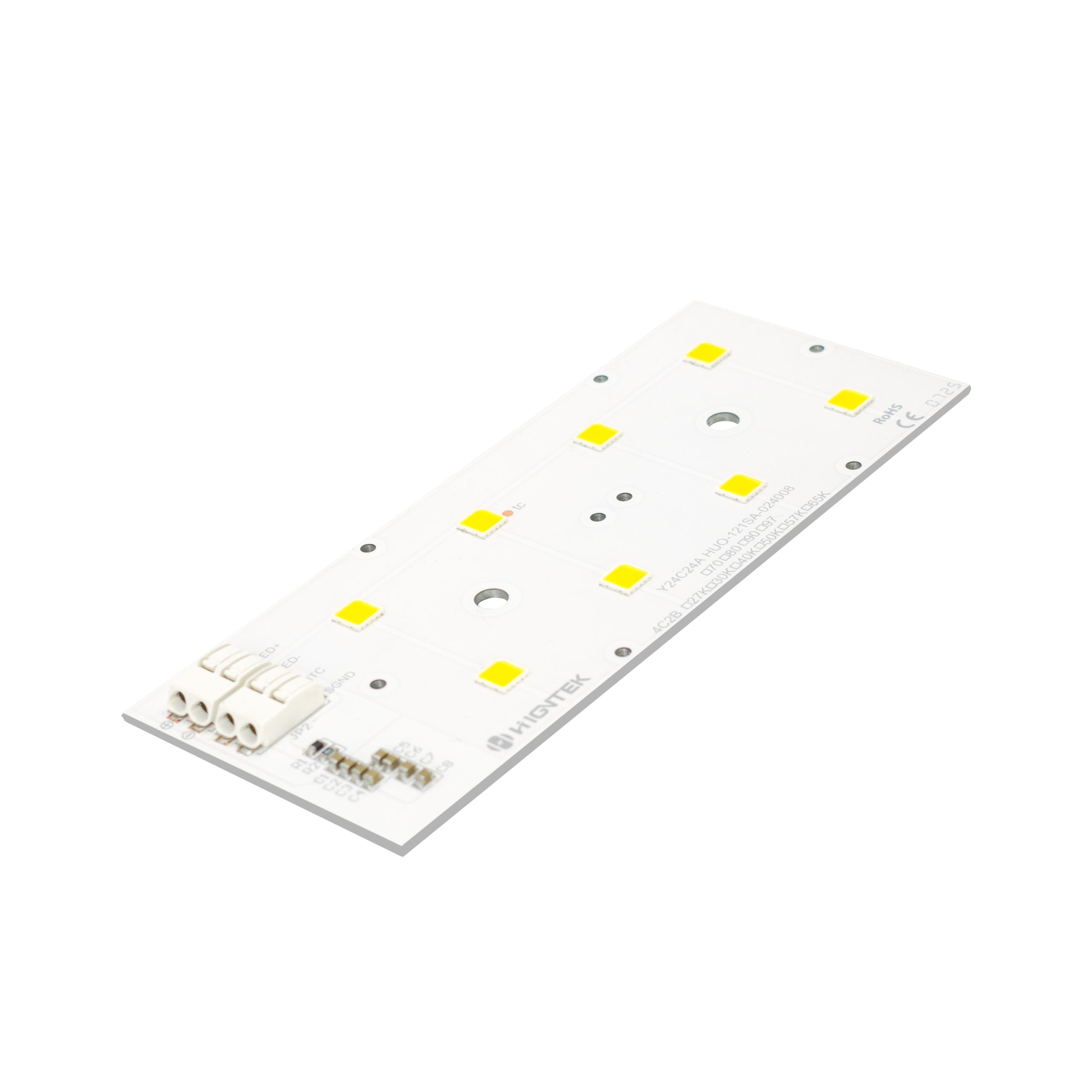

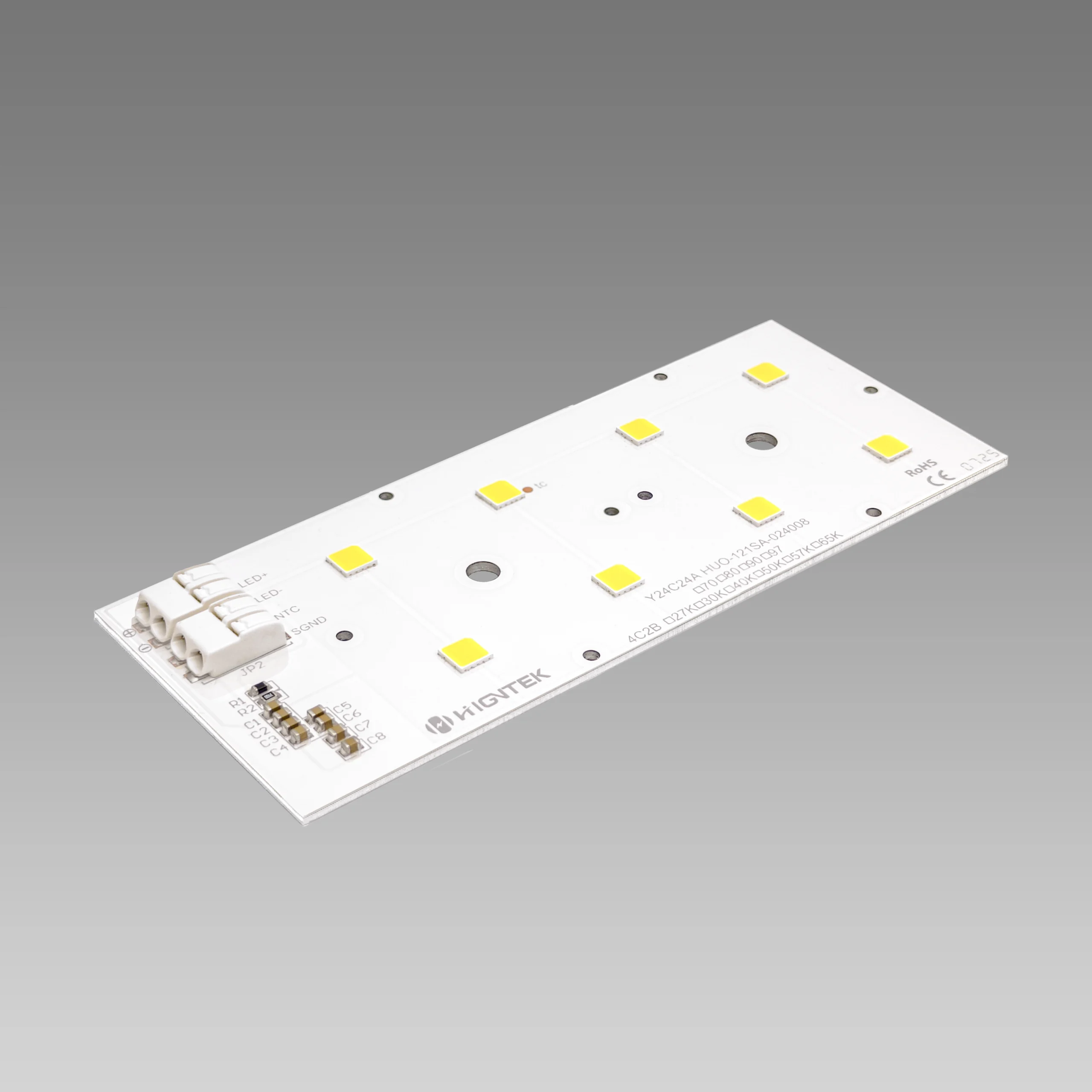

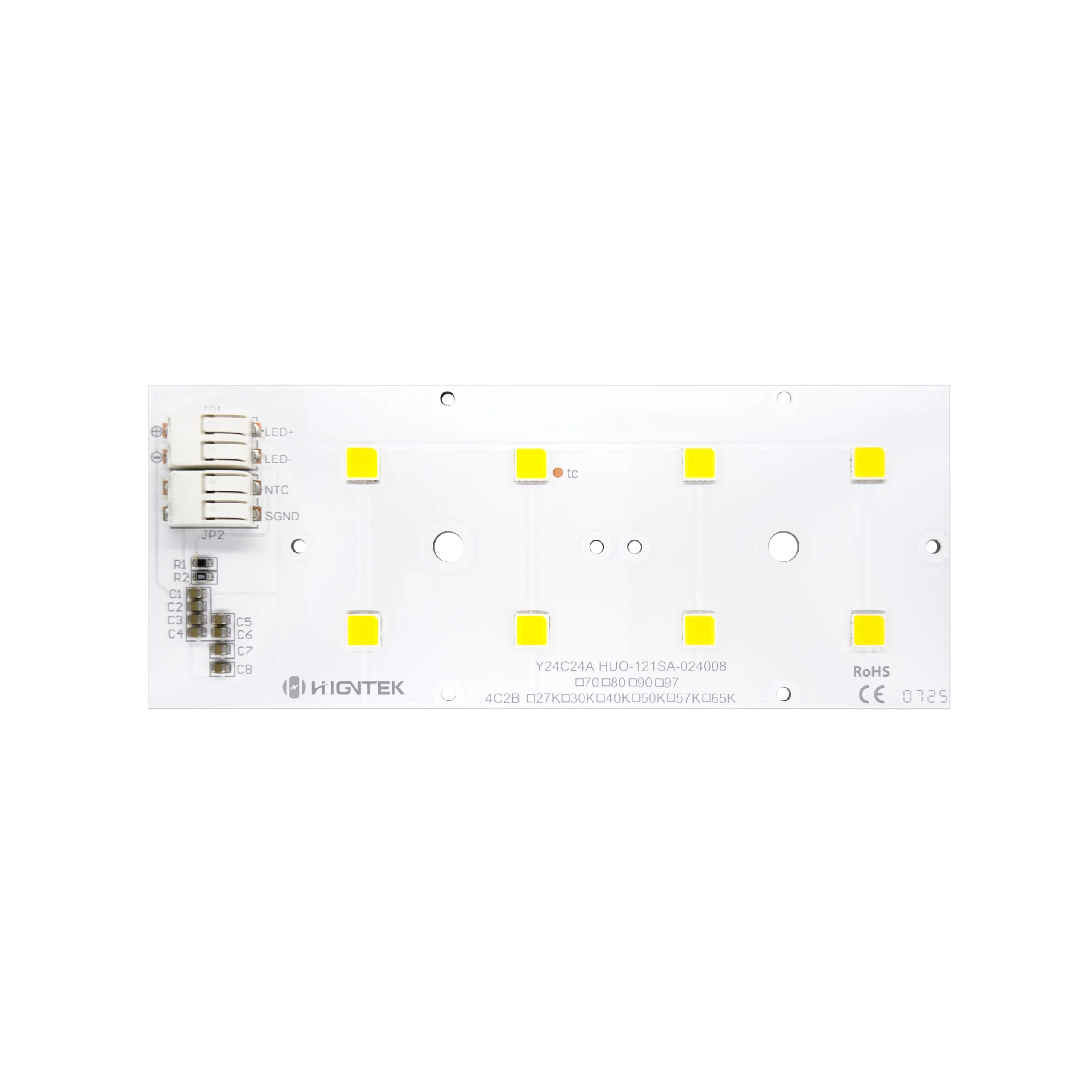

is a 49.5 × 121.4 mm outdoor LED module designed for high-efficacy lighting. Built with 8 Lumileds 5050 high-brightness LEDs, it delivers excellent luminous performance, color consistency, and reliability. At the rated current and Tp = 25 °C, the module achieves a luminous flux of approximately 2100 lm. Compact and durable, it’s ideal for street lights, tunnel lighting, and industrial illumination.
Features And Benefits
- Input Voltage: 21.2-24V Typical Applications:
- Powe: 7-36W Street light
- Luminous Efficacy: Up to 216 lm/W Flood and area lighting
- CCK: 2700K–6500K Tunnel lighting
- Color Rendering Index: 70–80
- Beam Angle: 120°
- IP Grade: IP20
- For use with standard 2×2 lenses
- Push-in connectors enabling automated wiring
- Long life-time: >50,000 hours
- CE, ROHS, ERP compliance
- 5-year limited guarantee

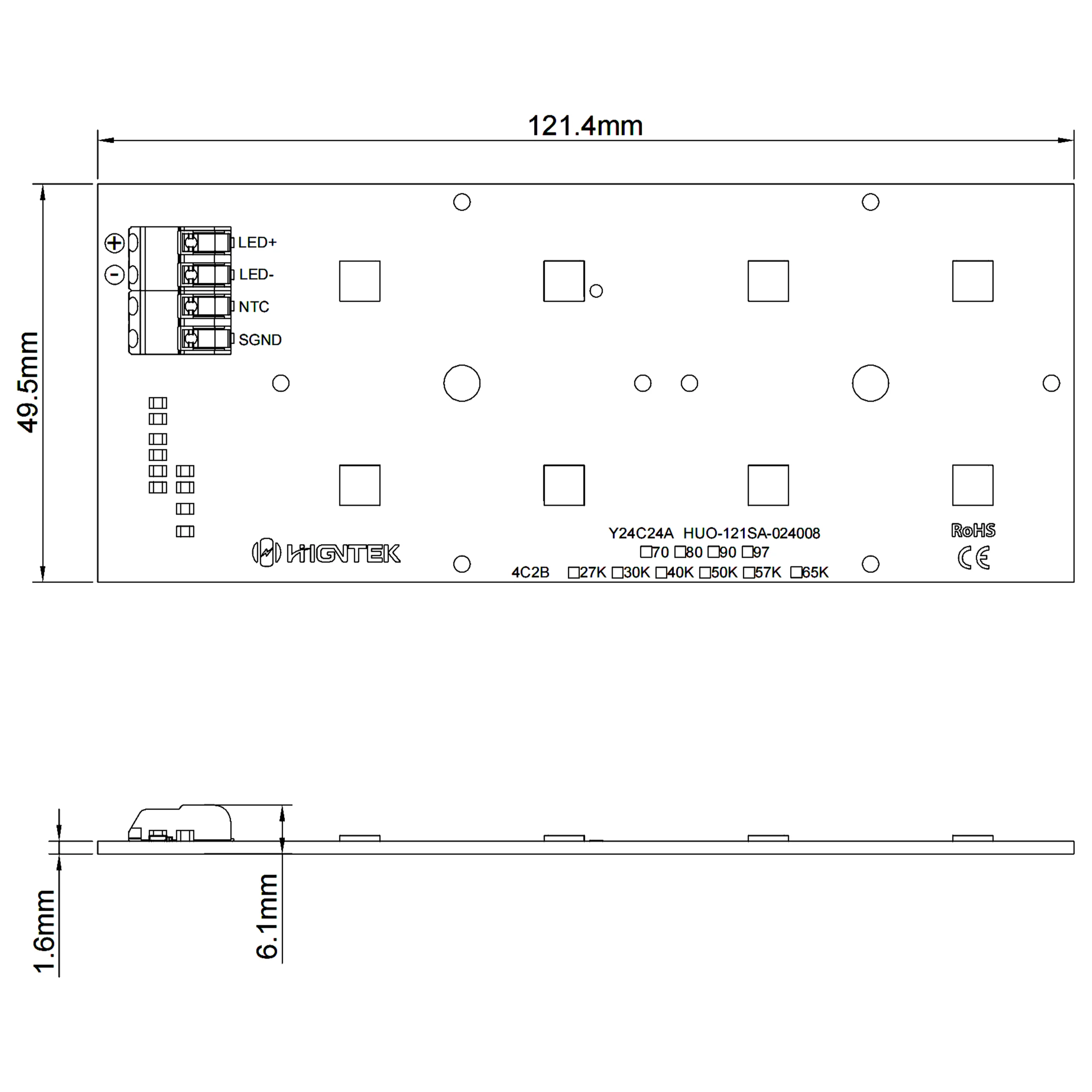

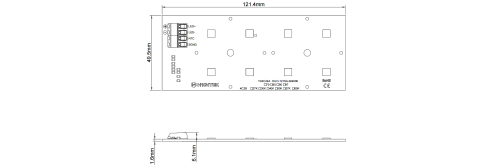

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUO-120SA-024008 is measured under the specified test current at Tj = 25 °C.
| Type | CCT (K) | CRI (Ra) | Current (mA) | Luminous Flux (lm) | Forward Voltage (V) | Power (W) | Luminous Efficiency (lm/W) |
|---|---|---|---|---|---|---|---|
| HUO-120SA-024008 | 2700K–6500K | 70 | 360 | 1574-1692 | 21.8 | 7.85 | 201–216 |
| HUL-120SA-024008 | 2700K–6500K | 70 | 450 | 1942-2088 | 21.9 | 9.86 | 197–212 |
| HUL-120SA-024008 | 2700K–6500K | 70 | 1500 | 5642–6067 | 23.9 | 35.85 | 157–169 |
| HUL-120SA-024008 | 2700K–6500K | 80 | 360 | 1464-1574 | 21.8 | 7.85 | 186–201 |
| HUL-120SA-024008 | 2700K–6500K | 80 | 450 | 1806–1942 | 21.9 | 9.86 | 183–197 |
| HUL-120SA-024008 | 2700K–6500K | 80 | 1500 | 5247–5642 | 23.9 | 35.85 | 146–157 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 36 W |
| MAX Forward Current | 1500 mA |
| Operating Temperature | -40 to 65℃ |
Primary Application
Overview of Services
Each Higntek LED module is designed from the customer’s perspective, based on specific application requirements. We provide fully customized solutions.
From optical performance to thermal management and system integration, every parameter can be precisely configured to ensure optimal efficiency, reliability, and lighting experience.
Size
Full size / Cut size
CCT Range
2200K – 6500K
CRI Options
80 / 90 / 95+
Thermal
Thermal design / structure
Luminous Efficiency
up to 225 lm/W
LEDs
Brand & Model
Electrical
Voltage & Power
PCB
Material/Copper thickness/Process
Connector
Type/Number of interfaces/Layout
Electronic components
Component type/Specification
Optical lens
Type/Brand/Model/Beam angle
Driver
Brand/Model/Dimming method/Electrical
