220lm/W High-Efficacy Outdoor Modules146mm 2×6 LUMILEDS LED
HIGNTEK HUO-146SA-036012

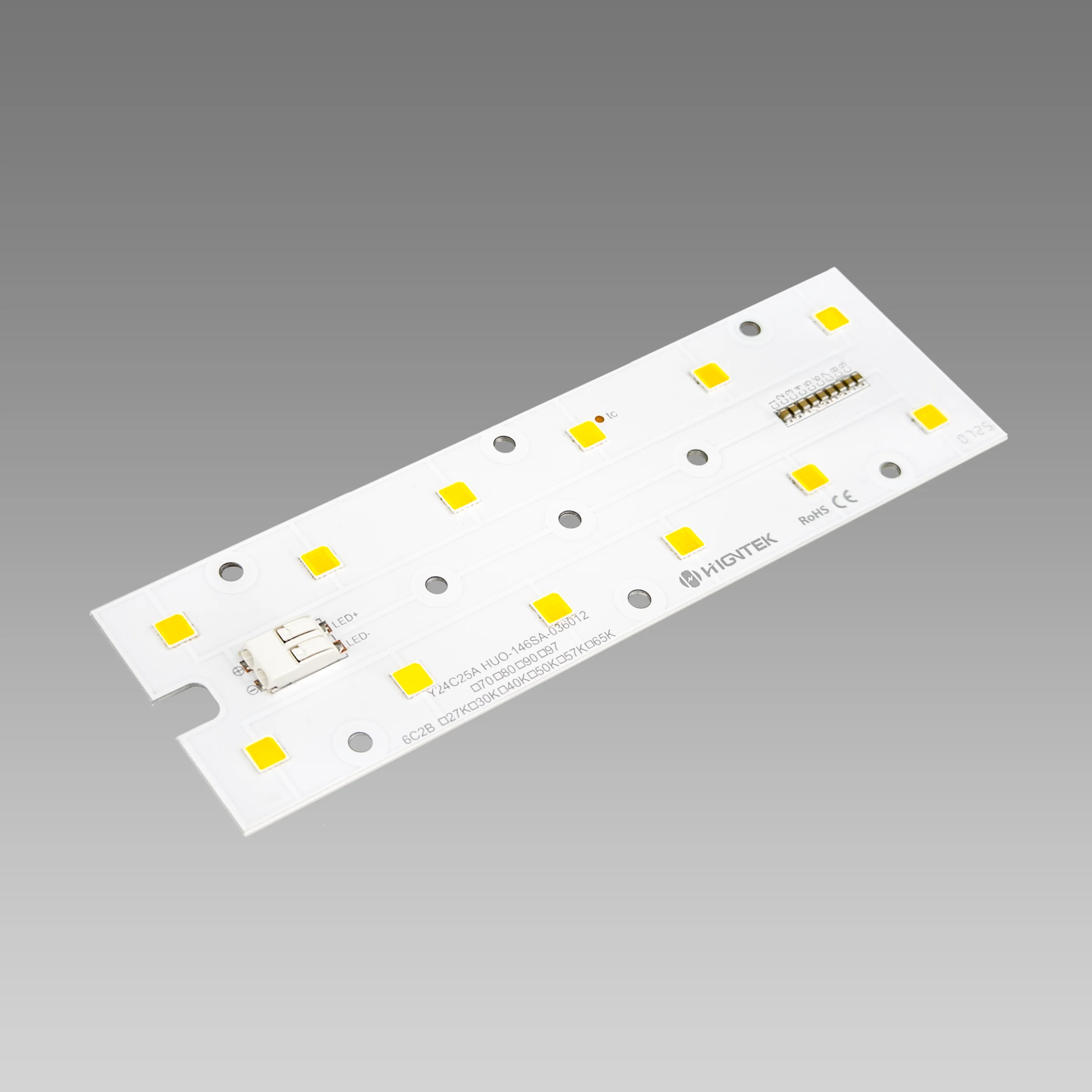

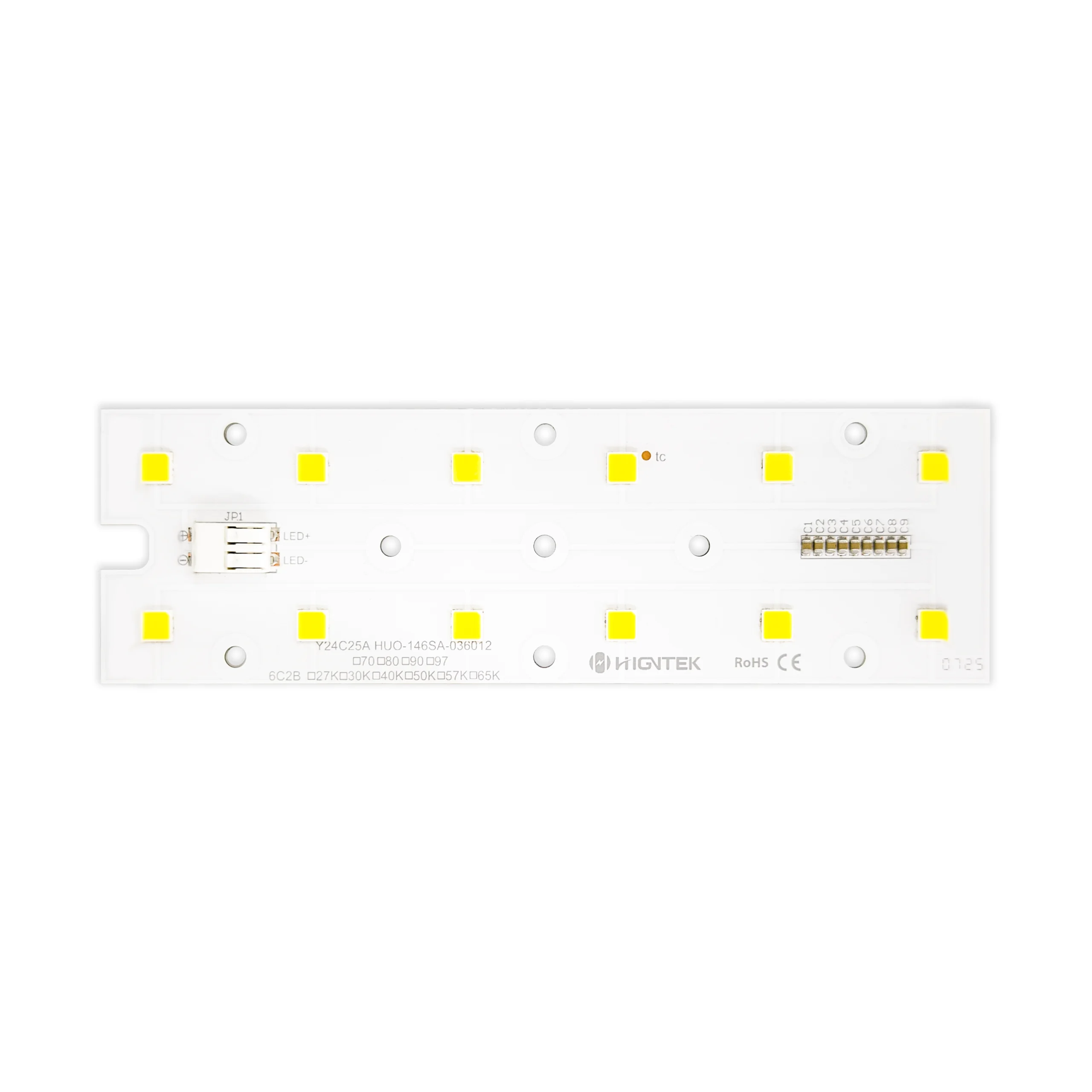

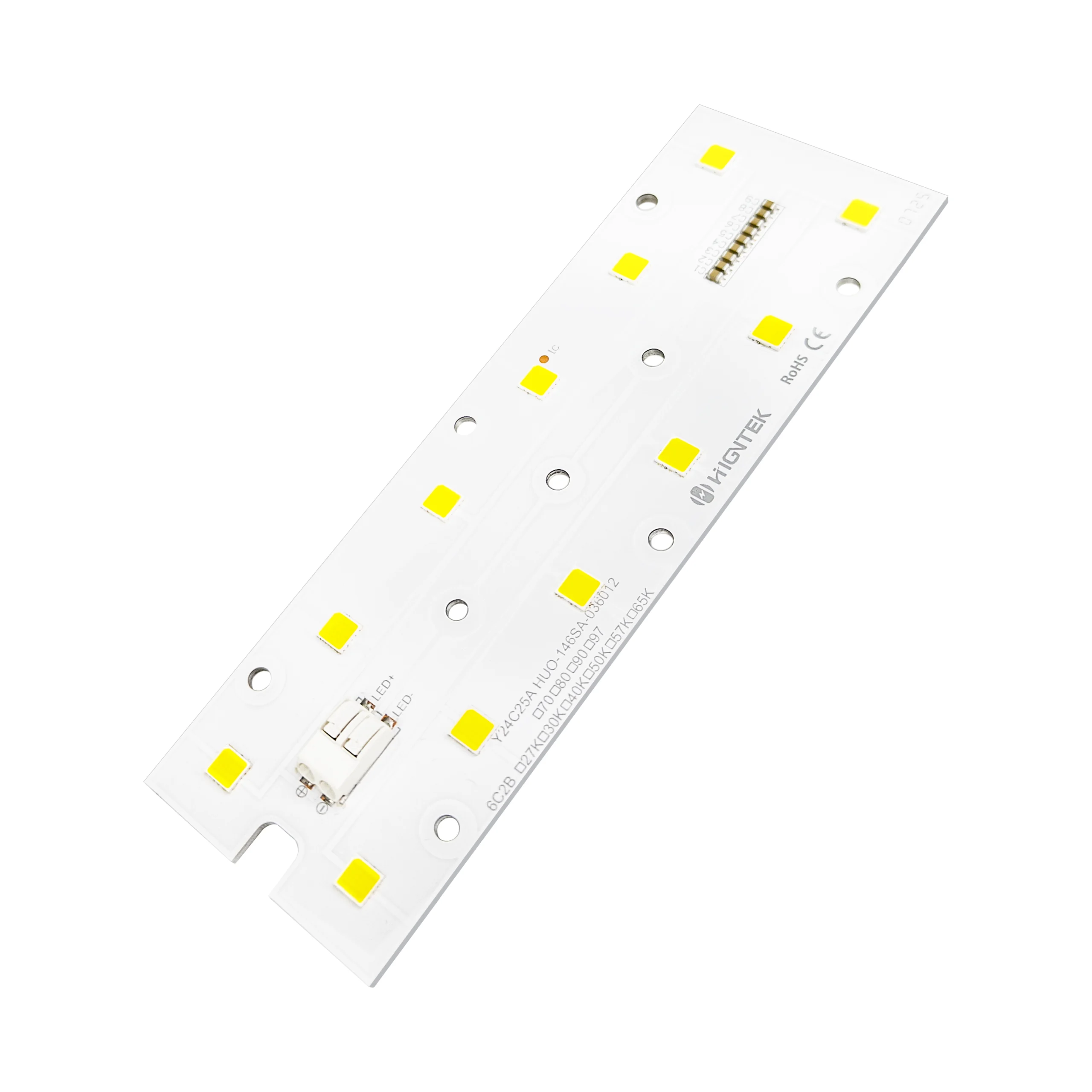

is a 45 × 146 mm outdoor LED module designed for high-efficacy lighting. Built with 12 Lumileds 5050 high-brightness LEDs, it delivers excellent luminous performance, color consistency, and reliability. At the rated current and Tp = 25 °C, the module achieves a luminous flux of approximately 3400 lm. Compact and durable, it’s ideal for street lights, tunnel lighting, and industrial illumination.
Features And Benefits
- Input Voltage: 32.4-36V Typical Applications:
- Powe: 11-54W Street light
- Luminous Efficacy: Up to 220 lm/W Flood and area lighting
- CCK: 2700K–6500K Tunnel lighting
- Color Rendering Index: 70–80
- Beam Angle: 120°
- IP Grade: IP20
- For use with standard 2×2 lenses
- Push-in connectors enabling automated wiring
- Long life-time: >50,000 hours
- CE, ROHS, ERP compliance
- 5-year limited guarantee

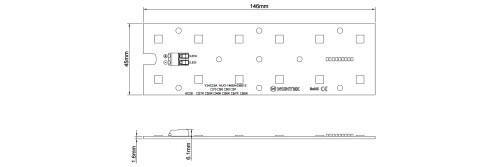

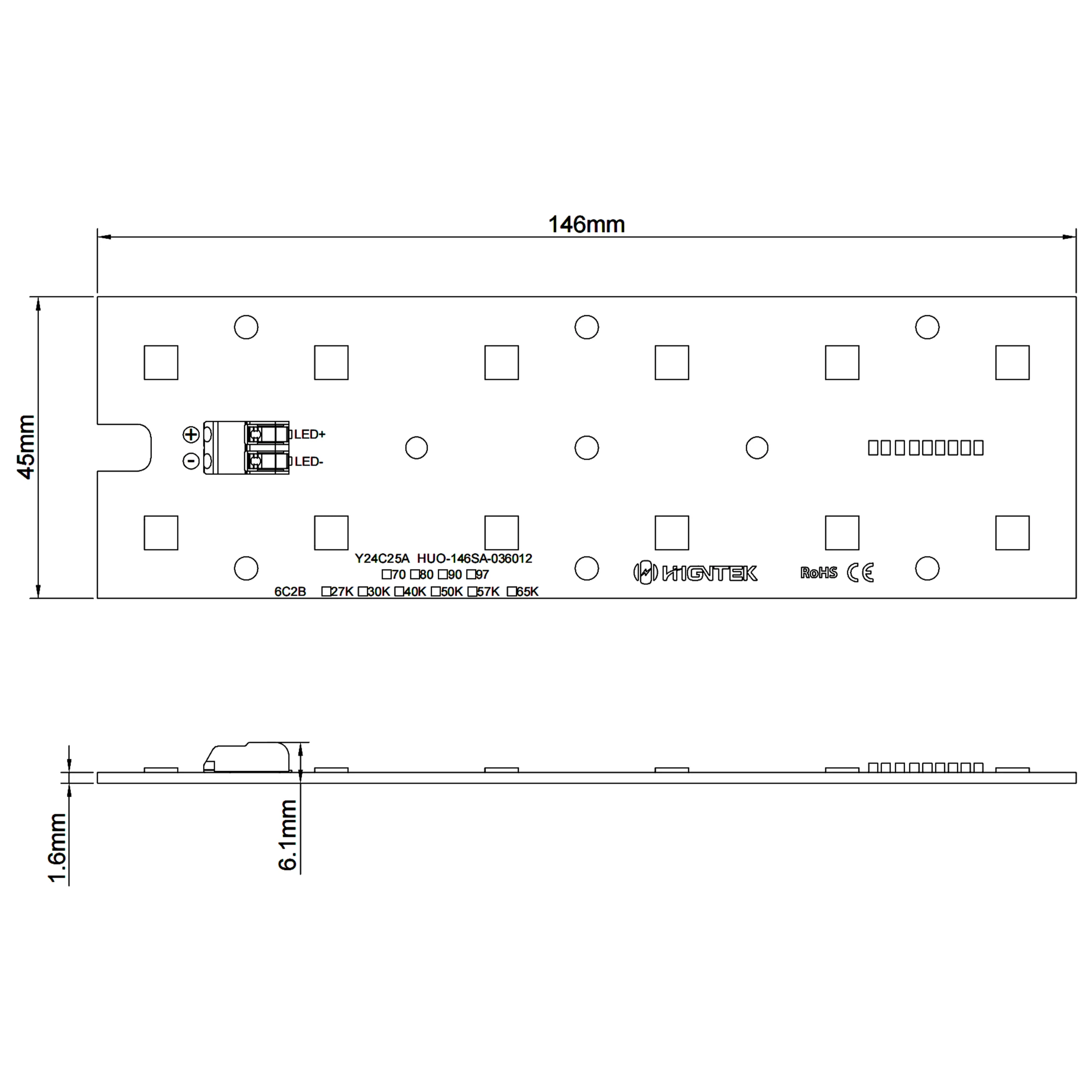

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUO-146SA-036012 is measured under the specified test current at Tj = 25 °C.
| Type | CCT (K) | CRI (Ra) | Current (mA) | Luminous Flux (lm) | Forward Voltage (V) | Power (W) | Luminous Efficiency (lm/W) |
|---|---|---|---|---|---|---|---|
| HUO-146SA-036012 | 2700K–6500K | 70 | 360 | 2402-2583 | 32.6 | 11.74 | 205–220 |
| HUL-146SA-036012 | 2700K–6500K | 70 | 480 | 3141-3377 | 32.9 | 15.79 | 199–214 |
| HUL-146SA-036012 | 2700K–6500K | 70 | 1500 | 8516–9157 | 35.7 | 53.55 | 159–171 |
| HUL-146SA-036012 | 2700K–6500K | 80 | 360 | 2234-2402 | 32.6 | 11.74 | 190.–205 |
| HUL-146SA-036012 | 2700K–6500K | 80 | 480 | 2921–3141 | 32.9 | 15.79 | 185–199 |
| HUL-146SA-036012 | 2700K–6500K | 80 | 1500 | 7920–8516 | 35.7 | 53.55 | 148–159 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 54 W |
| MAX Forward Current | 1500 mA |
| Operating Temperature | -40 to 65℃ |

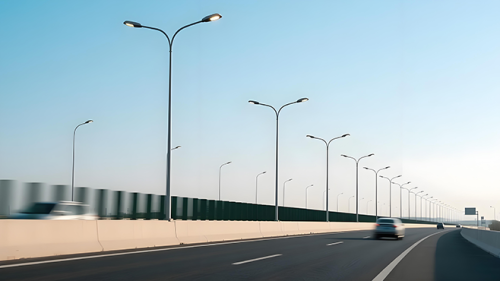

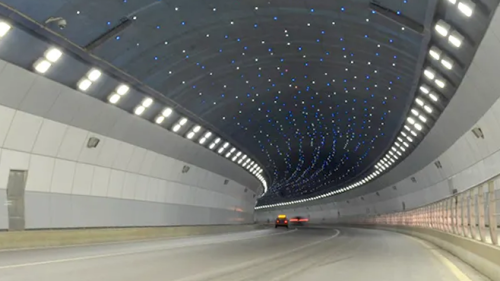

Primary Application
