196LM/W Diffuse 24V Rigid Light Strip 480mm
HIGNTEK HUB-480SA-024008

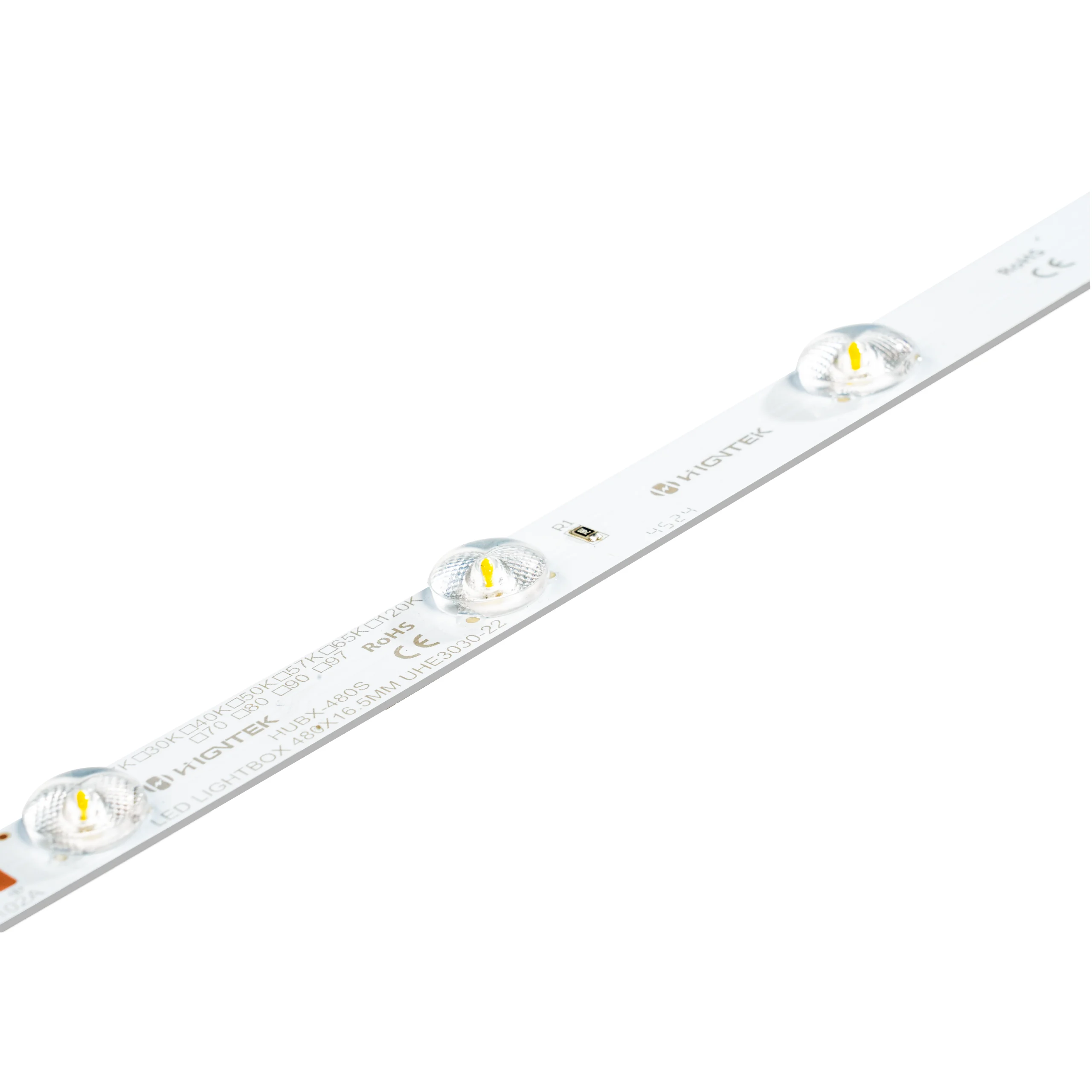

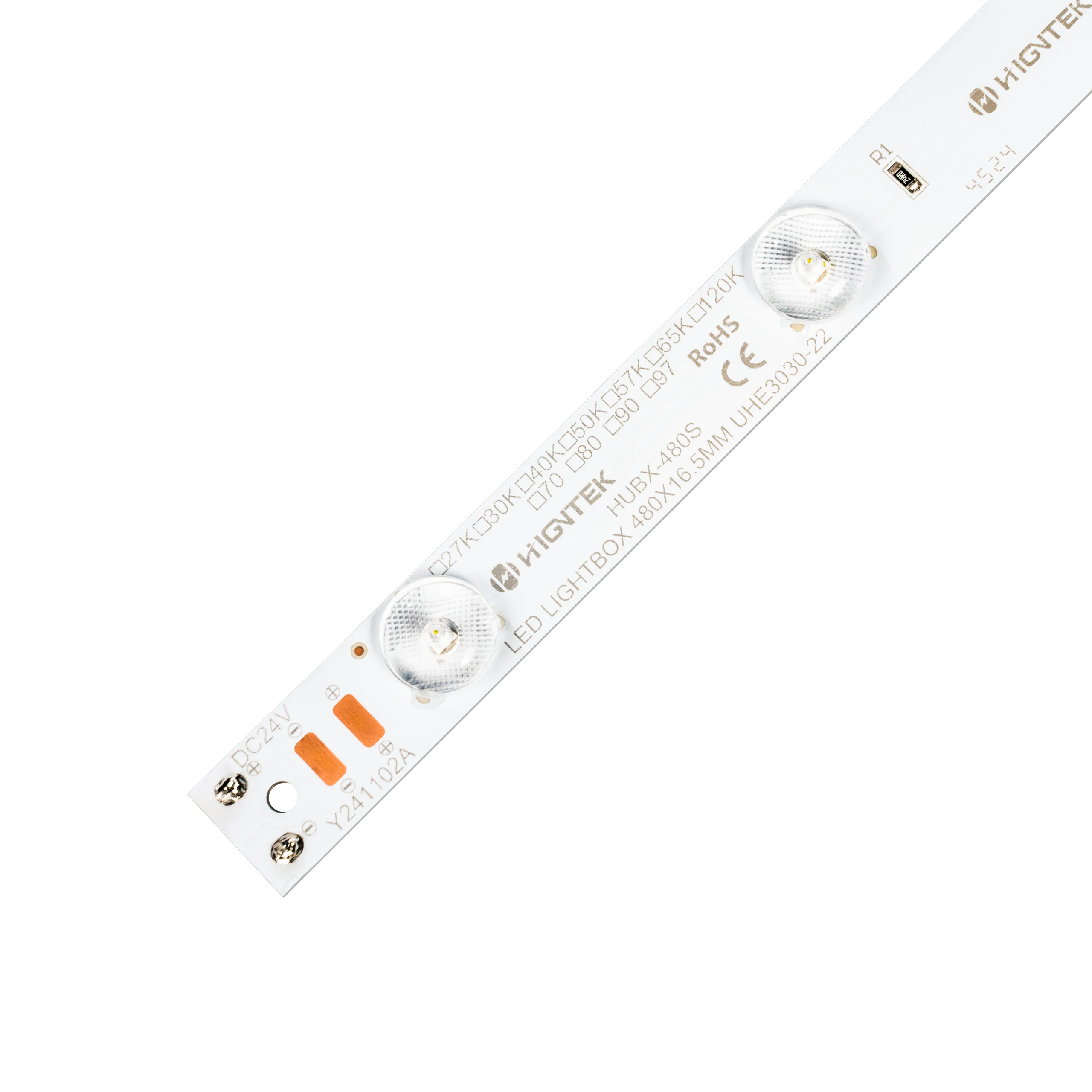

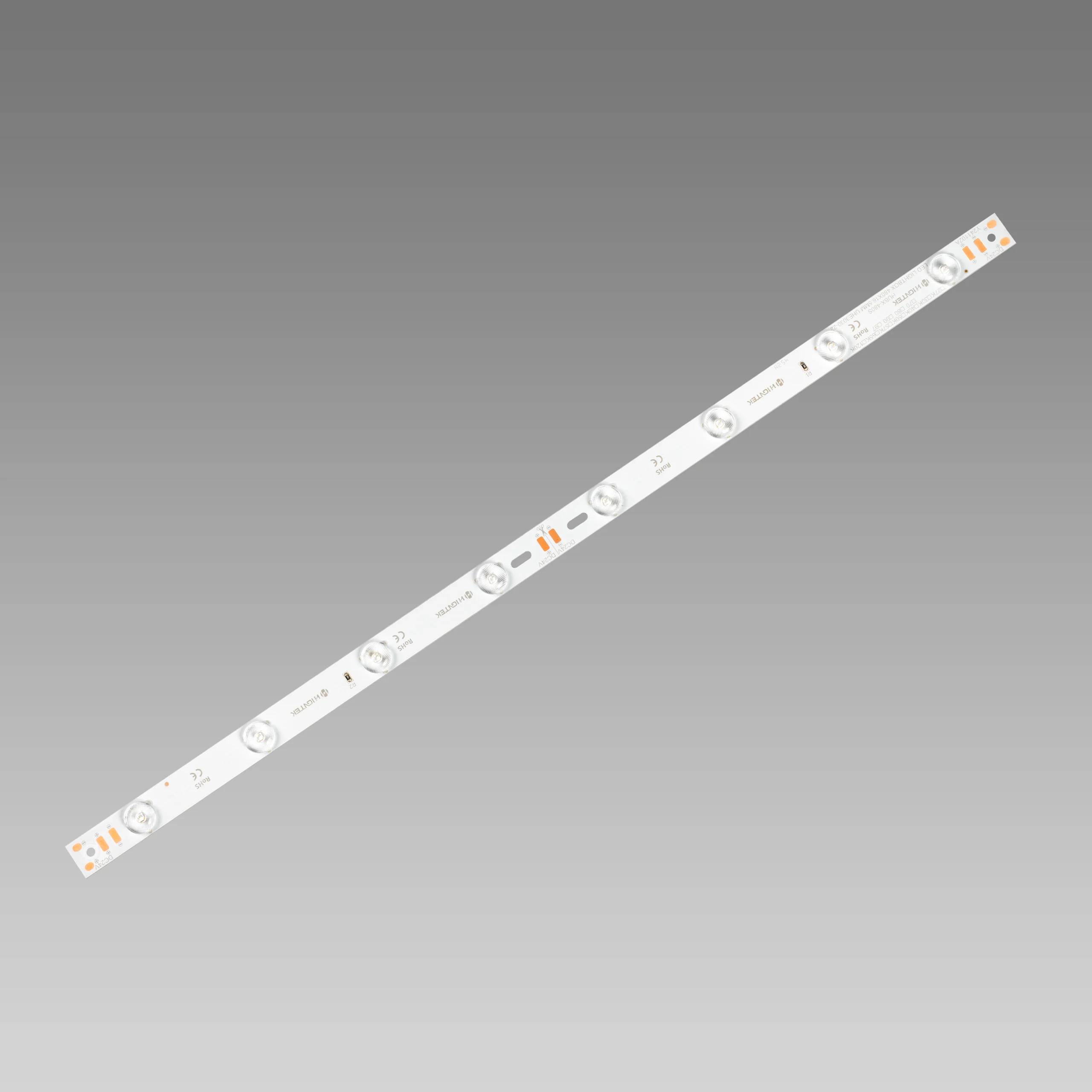

is a lighting-optimized LED strip module specially designed for light boxes. With a compact size of 480 mm × 16.5 mm, it features 8 high-efficacy UHE-3030 LED chips, delivering ultra-high brightness and luminous efficiency for uniform, brilliant illumination.
Features And Benefits
- Input Voltage: DC24V Typical Applications:
- Powe: 4W Light box
- Luminous Flux: Up to 784 lm Soft membrane smallpox
- Luminous Efficacy: Up to 196 lm/W
- CCK: 2700K–6500K
- Color Rendering Index: 70–80
- Beam Angle: 170°
- IP Grade: IP20
- CE, ROHS, ERP compliance
- 5-year limited guarantee

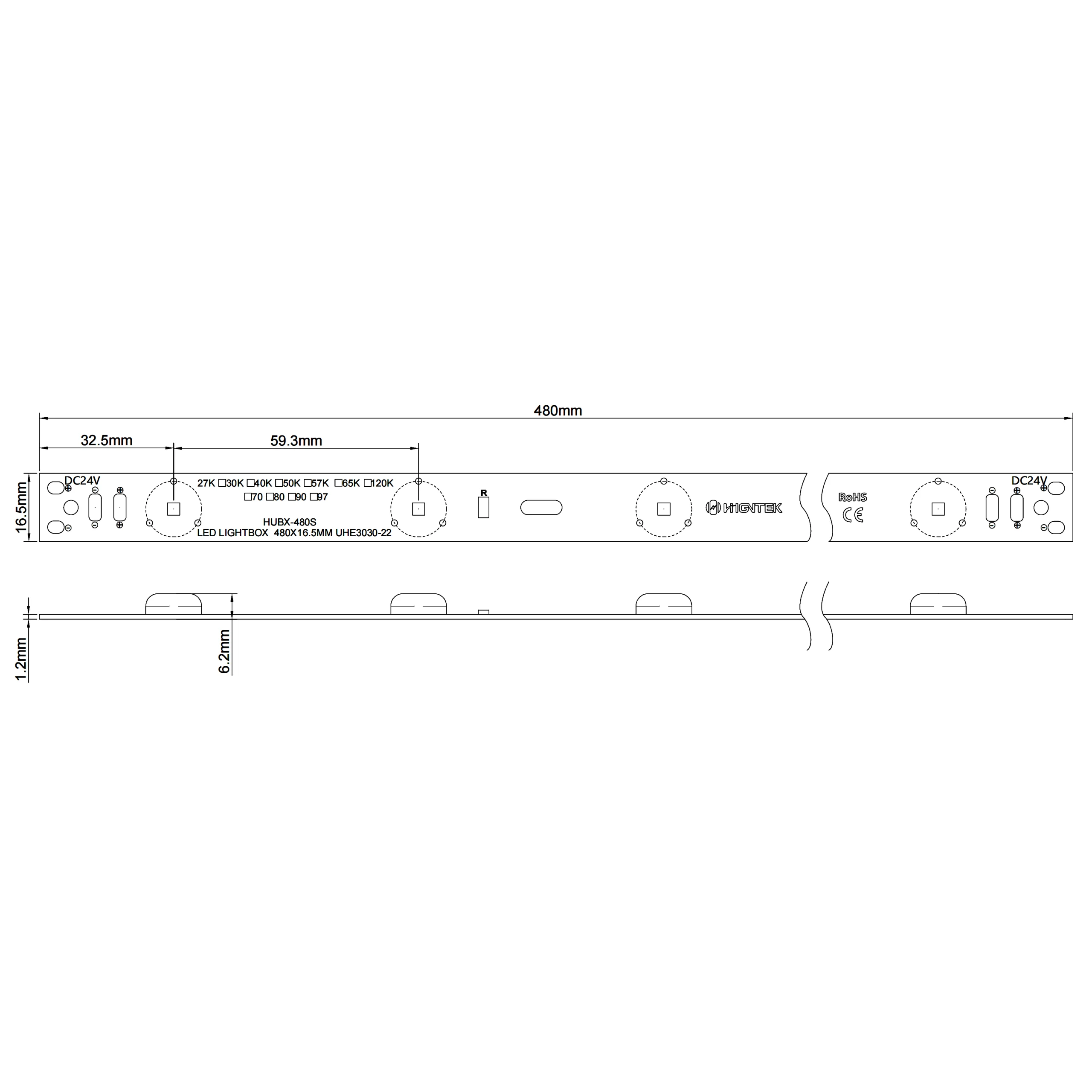

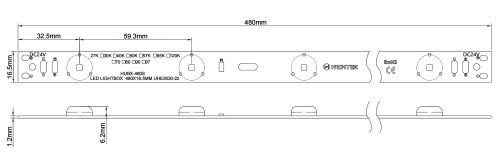

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUB-480SA-024008 is measured under the specified test current at Tj = 25 °C.
| Type | CCT（K） | CRI (Ra) | Current（mA） | Luminous Flux（lm） | Luminous Flux（LM/W） |
|---|---|---|---|---|---|
| HUB-480SA-024008 | 2700K–6500K | 70 | 167 | 721–784 | 180–196 |
| HUB-480SA-024008 | 2700K–6500K | 80 | 167 | 671–729 | 168–182 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 4.5 W |
| MAX Forward Current | 180 mA |
| Operating Temperature | -40 to 65℃ |
Primary Application
Overview of Services
Each Higntek LED module is designed from the customer’s perspective, based on specific application requirements. We provide fully customized solutions.
From optical performance to thermal management and system integration, every parameter can be precisely configured to ensure optimal efficiency, reliability, and lighting experience.
Size
Full size / Cut size
CCT Range
2200K – 6500K
CRI Options
80 / 90 / 95+
Thermal
Thermal design / structure
Luminous Efficiency
up to 225 lm/W
LEDs
Brand & Model
Electrical
Voltage & Power
PCB
Material/Copper thickness/Process
Connector
Type/Number of interfaces/Layout
Electronic components
Component type/Specification
Optical lens
Type/Brand/Model/Beam angle
Driver
Brand/Model/Dimming method/Electrical
