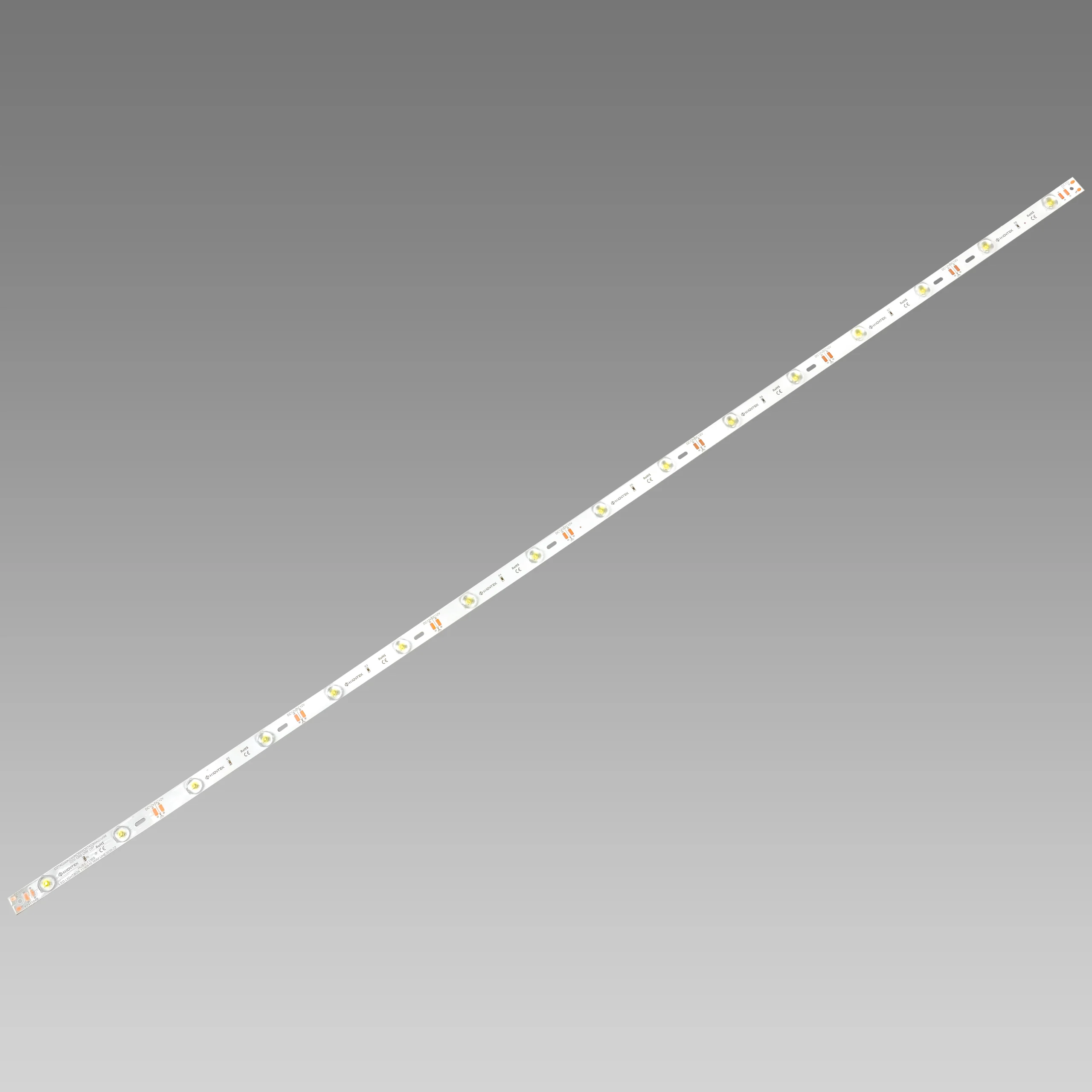

207LM/W Diffuse 12V Rigid Light Strip 1130mm
HIGNTEK HUB-1130SA-012016

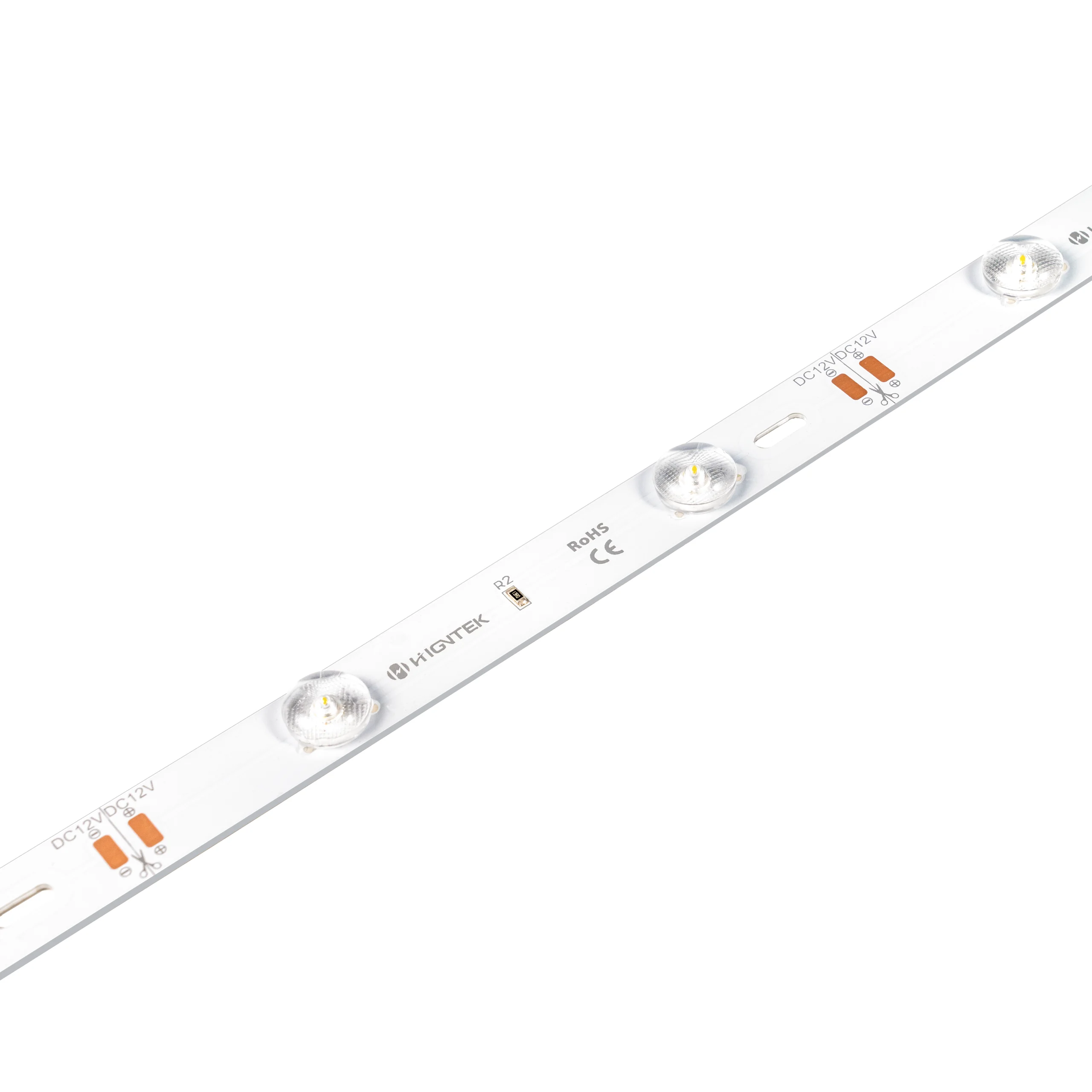

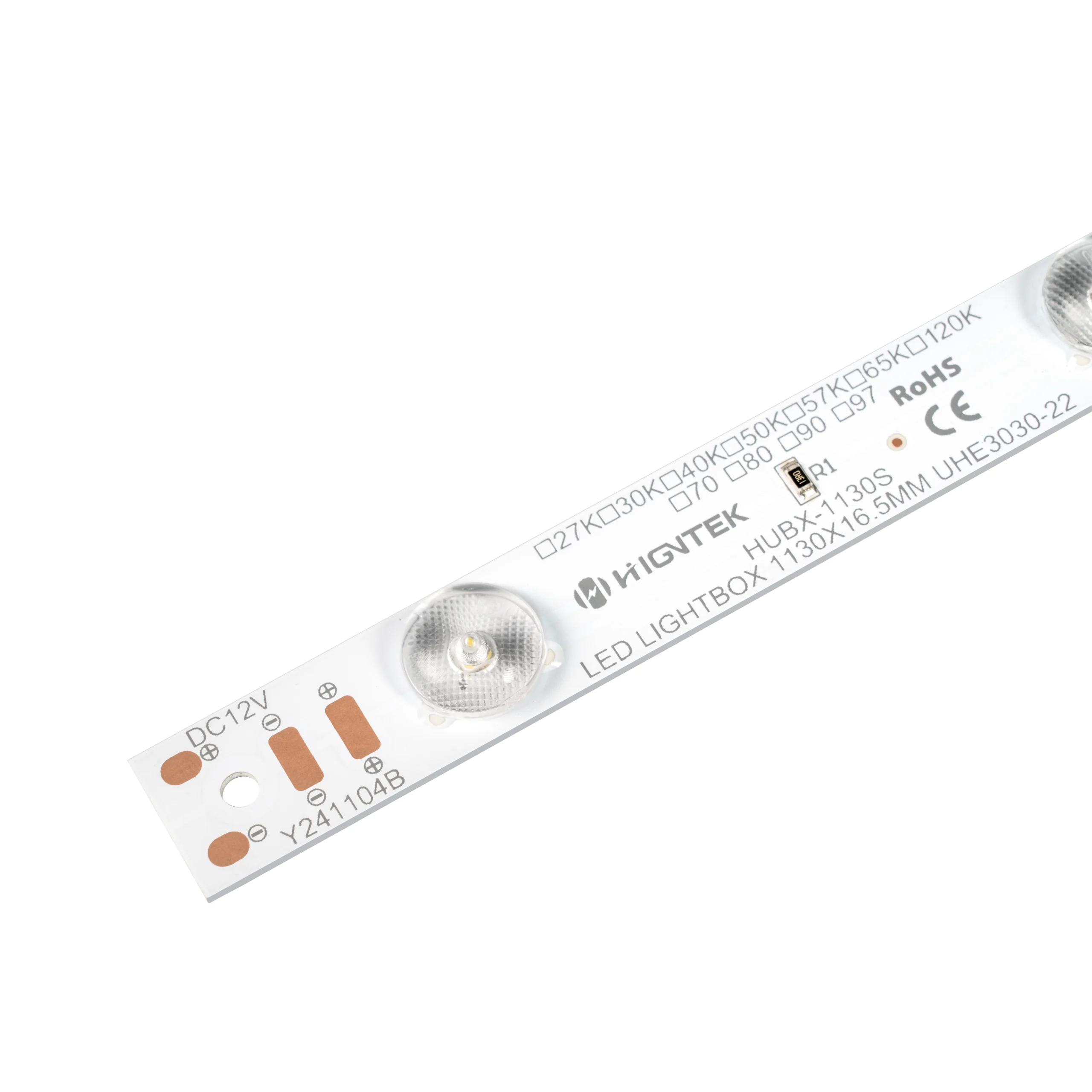

This 1130mm × 16.5mm LED strip module is specially designed for light box applications. Its standard size and segmentable design allow flexible and convenient use. Equipped with 16 ultra-high-efficacy 3030 LEDs and paired with a diffused lens, it delivers bright, uniform illumination with excellent luminous performance.
Features And Benefits
- Input Voltage: DC12V Typical Applications:
- Powe: 8W Light box
- Luminous Flux: Up to 1657 lm Soft membrane smallpox
- Luminous Efficacy: Up to 207 lm/W
- CCK: 2700K–6500K
- Color Rendering Index: 70–80
- Beam Angle: 170°
- IP Grade: IP20
- CE, ROHS, ERP compliance
- 5-year limited guarantee

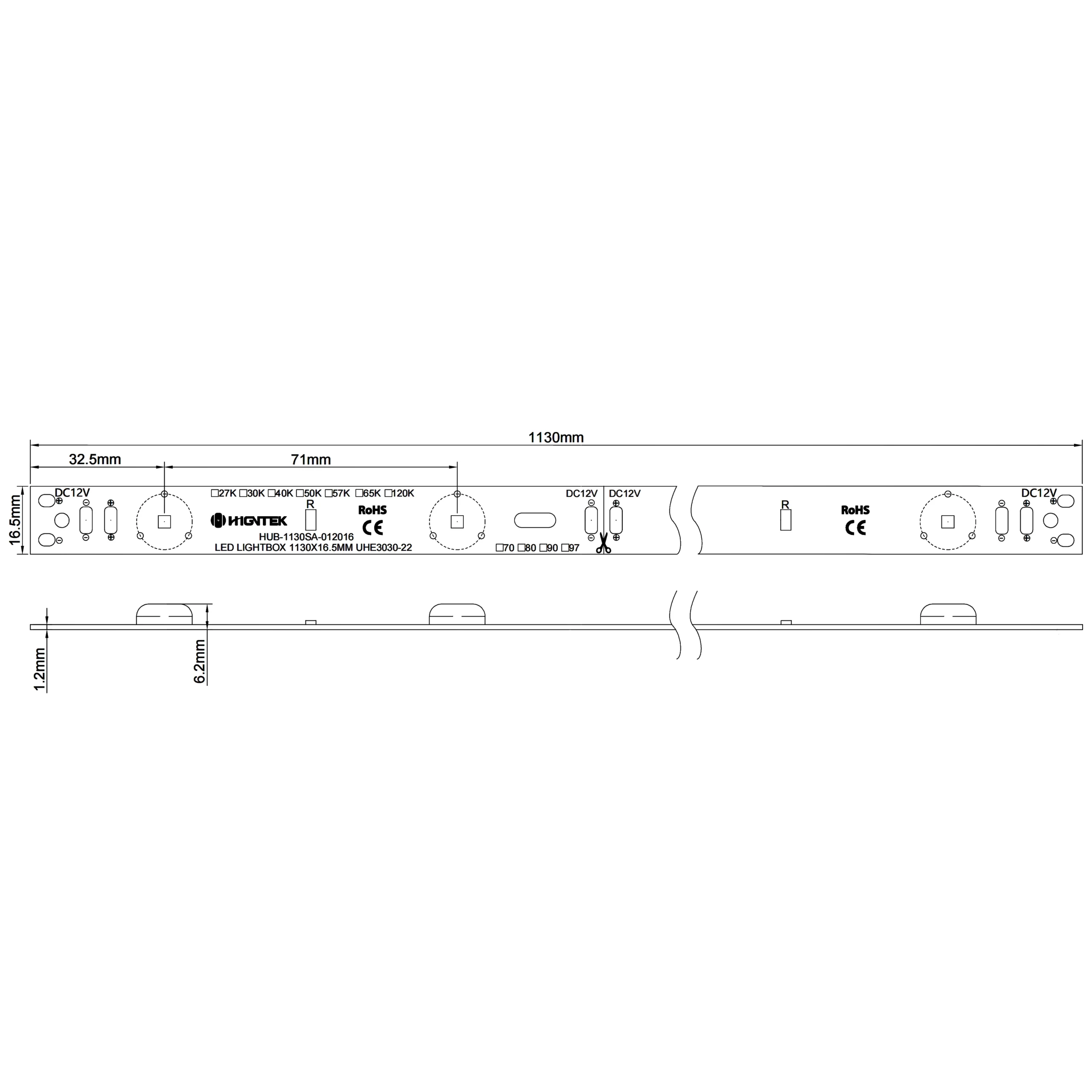

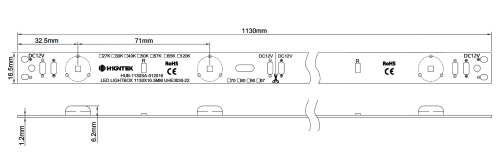

Dimensions (All Dimensions In Mm).
Product Performance
The performance of HIGNTEK HUB-1130SA-012016 is measured under the specified test current at Tj = 25 °C.
| Type | CCT（K） | CRI (Ra) | Current（mA） | Luminous Flux（lm） | Luminous Flux（LM/W） |
|---|---|---|---|---|---|
| HUB-1130SA-012016 | 2700K–6500K | 70 | 667 | 1524-1657 | 191–207 |
| HUB-1130SA-012016 | 2700K–6500K | 80 | 667 | 1420-1543 | 176–193 |
- Luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%.
- Expected luminous flux tolerance: -0% / +15%. Measurement uncertainty: ±10%. Based on calculation.
| Parameter | Rating |
|---|---|
| MAX Power | 8.5 W |
| MAX Forward Current | 680 mA |
| Operating Temperature | -40 to 65℃ |

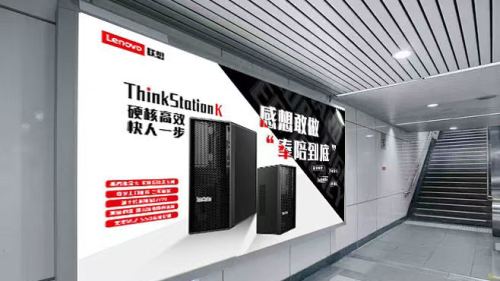

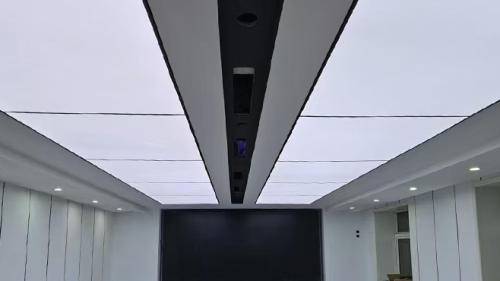

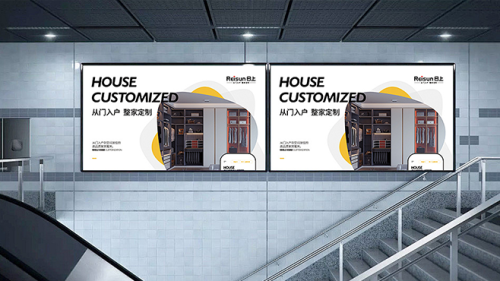

Primary Application
Overview of Services
Each Higntek LED module is designed from the customer’s perspective, based on specific application requirements. We provide fully customized solutions.
From optical performance to thermal management and system integration, every parameter can be precisely configured to ensure optimal efficiency, reliability, and lighting experience.
Size
Full size / Cut size
CCT Range
2200K – 6500K
CRI Options
80 / 90 / 95+
Thermal
Thermal design / structure
Luminous Efficiency
up to 225 lm/W
LEDs
Brand & Model
Electrical
Voltage & Power
PCB
Material/Copper thickness/Process
Connector
Type/Number of interfaces/Layout
Electronic components
Component type/Specification
Optical lens
Type/Brand/Model/Beam angle
Driver
Brand/Model/Dimming method/Electrical
