When selecting lighting sources for commercial, industrial, or residential projects, the choice between Linear LED Modules, LED Strips, and LED Light Bars directly impacts long-term operating costs, running stability and overall lighting effect. Most purchasers only focus on low initial price while ignoring core performance and service life, resulting in frequent maintenance, severe lumen depreciation and higher total cost of ownership in the long run. We compared their test data and provided practical selection tips to help you make accurate project decisions.

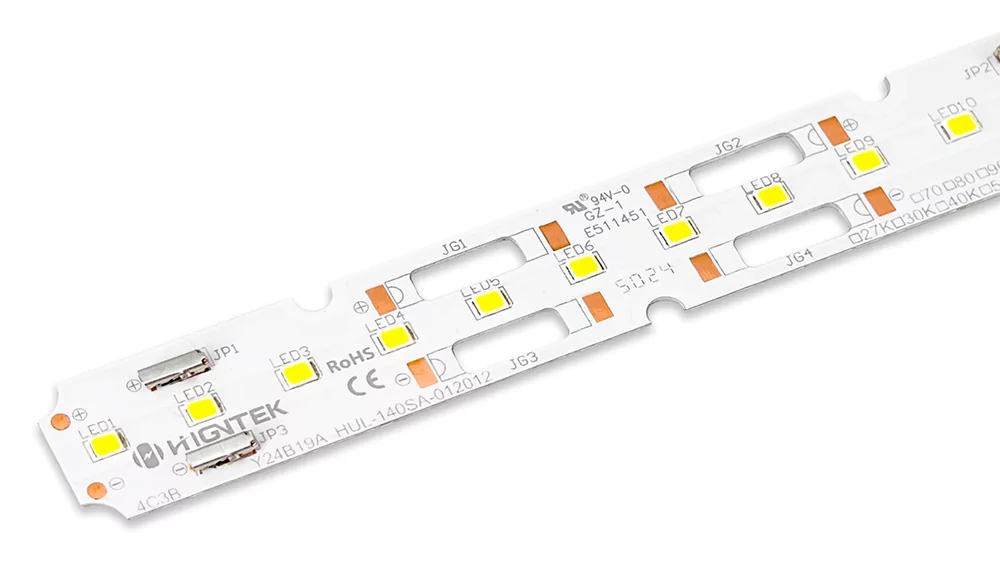

What Is a Linear LED Module?
Linear LED modules are lighting components specifically designed for linear luminaires and the retrofitting of existing lighting systems. They consist of an LED light source, a PCB circuit board, an optional optical lens, and necessary electrical interfaces. They typically use LED diodes connected in series on a rigid aluminum-based circuit board to produce continuous, smooth, and uniform light.
Unlike flexible LED strips and fully enclosed LED light bars, linear modules have standardized dimensions and interfaces, making them easier to integrate into various lighting fixtures. Linear LED modules can also be customized in size and optical requirements to meet specific project needs. Professionally manufactured, they achieve high luminous efficiency, stable and uniform brightness, and an ultra-long lifespan, making them a mainstream lighting solution for offices, retail stores, warehouses, and large-scale indoor lighting projects.
Advantages and disadvantages of Linear LED Module.
In terms of core advantages, linear LED modules deliver excellent luminous efficiency from 150 to 190 lumens per watt, and high-end models can reach over 200 lumens per watt. They feature standard L70 lifespan of 50000 to 100000 hours, which can steadily work for 11 to 23 years under 12-hour daily working mode. Optimized lamp bead layout and matched optical lenses ensure light uniformity above 90%. Equipped with tool-free quick connection structure and strict color consistency within 3 SDCM, a single damaged module can be replaced separately without disassembling the whole lighting fixture, greatly lowering maintenance difficulty.
Besides efficient lighting, another reason for the popularity of linear LED modules is their extensive color tuning options, including different color temperatures, RGB or RGBW versions, and even the ability to adjust brightness, color, or the activation status of individual LEDs via a single LED controller. This versatility allows a single product category to meet a wide range of application needs, from decorative accent lighting to complex smart lighting systems.
The upfront procurement cost is 3 to 5 times higher than ordinary LED strips. Installation requires close contact with heat-conductive mounting base; working environments over 45℃ without effective heat dissipation will shorten product service life by 30% to 50%. Besides, on-site cutting is limited, only 12V and 24V constant voltage versions support fixed-point cutting every 50 to 100 millimeters.
A full range of linear LED modules types can meet diverse engineering demands, including 350-1050mA constant current modules for ultra-long distance layout, ultra-thin edge-lit modules within 5mm thickness, cuttable constant voltage modules for old lamp renovation, multi-protocol dimmable modules, UGR≤19 anti-glare backlight modules for classroom and medical lighting, high-power industrial modules and 100-277V direct AC modules for traditional fluorescent lamp replacement.

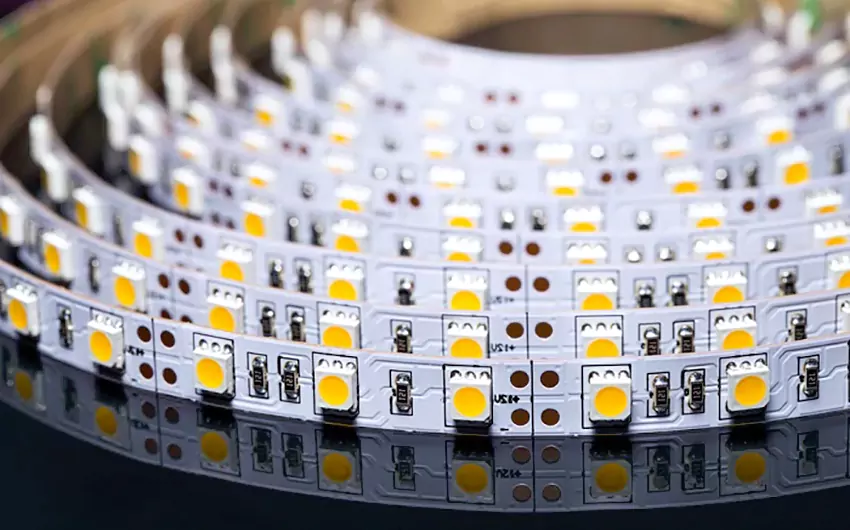

What Is an LED Strip?
If you’ve ever seen soft lighting under kitchen cabinets, behind a TV wall, on a hotel ceiling, or around retail shelves, you’ve likely seen LED light strips. LED light strips are thin and flexible. Their core is a **flexible printed circuit board (FPC)**, on which multiple **light-emitting diodes (LEDs)** and other components are directly arranged and embedded to form a continuous linear light source. The brightness and energy consumption of the light strip vary depending on the LED model specifications, width, length, LED density, and output power of the LEDs.
Modern LED light strips have evolved into lighting products with a rich variety of specifications and functions, offering countless configurations. From monochrome lighting to RGB dynamic color changing, from 12V and 24V low-voltage power supplies to 220V high-voltage solutions, from optical lens designs that improve light uniformity to waterproof structures that meet outdoor environment requirements, different color types, voltage schemes, optical designs, and protection levels collectively determine their performance and applicable scenarios in practical applications. Often, users think that choosing a light strip is simply a matter of “brightness,” but they only realize after implementation that these details are the key to a good user experience.
Advantages and disadvantages of LED Strips.
The true uniqueness of LED light strips lies in their flexibility. Unlike traditional lighting fixtures, because the flexible PCB substrate itself can be bent, cut, and extended, light strips can conform to curved walls, wrap around corners, be installed in narrow gaps, and even integrate into architectural details—features impossible with traditional lighting. Most LED light strips are typically supplied in 5-meter or 10-meter rolls, usually with self-adhesive tape on the back for easy and quick installation. This is why LED light strips are now ubiquitous—in hotels, game rooms, shopping malls, restaurants, residences, exhibitions, and even car interiors.
Another reason people choose LED light strips is their energy efficiency. The main reason for the energy savings of LED light strips is their low power consumption and high lumen output. For example, in a retail shelf project we worked on that relied on fluorescent lighting, we upgraded it by using high-efficiency LED strip lights with an efficiency of over 130 lm/W. This resulted in nearly 40% energy savings compared to the old lighting solution, while maintaining the same level of illumination. High-quality LED light strips have a longer continuous lifespan (up to 50,000 hours), making their energy-saving effect particularly significant for projects requiring long-term operation, such as retail displays, hotel environments, commercial buildings, or residential lighting. This high energy efficiency also leads to cost savings.
However, LED light strips are not without their flaws, one of the biggest issues being heat dissipation. Although LED technology is more efficient than traditional lighting, LEDs still generate heat during operation, and overheating is one of the main causes of luminous flux decay, color shift, and premature failure. Because flexible PCB LED strips are based on flexible PCBs, the substrate’s thermal conductivity is not as good as rigid metal plates, and they lack independent heat dissipation structures, thus their heat dissipation capacity is usually limited. Overly dense and high-power strips, or those placed in enclosed troughs or poorly ventilated channels, can cause heat to accumulate rapidly, leading to overheating. Many strips may continue to operate for several years, but noticeable brightness decline may occur much sooner than expected.
Voltage drop in LED strips is another very common problem. As current flows along the conductive lines of the strip, the voltage gradually decreases, especially in long-distance installations. 12V LED strips typically experience a significant brightness drop after about 5 meters, while 24V strips often exhibit uneven brightness after 10 meters. To maintain stable lighting, additional power injection points are usually required, increasing installation costs by 30% to 50%.
LED light strips, with their slim FPC structure and high-density LED chips, are a top choice for ambient art lighting. Their value lies in integrating light naturally into the building and interior space, but most LED light strips cannot be used to replace the main interior lighting. While LED light strips typically provide approximately 500 to 1500 lumens of luminous flux per meter, their heat dissipation limitations make it difficult to maintain stable illumination under prolonged high brightness.

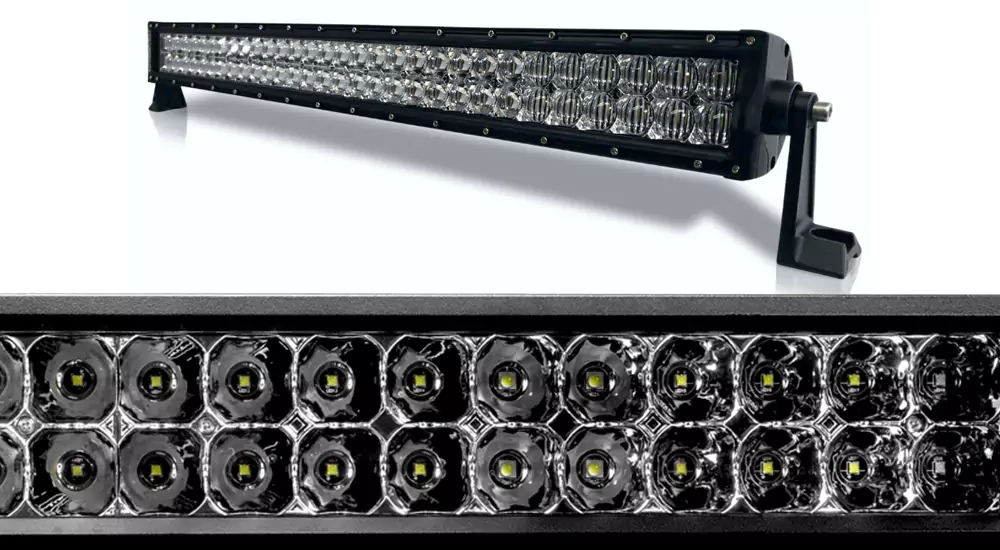

What Is an LED Light Bar?
LED light bar is a fully sealed rigid finished lighting fixture, consisting of thickened aluminum alloy shell, built-in LED light board and PC or glass light-transmitting cover. The built-in light panel contains multiple linearly arranged LEDs that produce a focused, powerful beam of light. It is completely assembled in a factory and only needs simple fixing and wiring on construction sites, mainly developed for harsh outdoor environments and mobile equipment lighting scenes. Higntek can customize internal LED modules to meet customers’ LED light bar lighting needs, achieving high-efficiency, high-brightness lighting effects through high-efficiency LED selection, appropriate driver configuration, and electrical design. Furthermore, we can tailor optical designs (lens control beam angle) to meet customers’ floodlighting and focusing requirements.
Core strengths include high IP rating up to IP67-IP69K, capable of resisting high-pressure water flushing and temporary shallow water immersion, as well as stable operation under long-term vibration conditions. It can reach full brightness instantly without preheating, perfectly fitting emergency lighting needs. Multiple optional beam angles cover long-distance concentrated lighting and large-area flood lighting demands, and standardized bracket installation unifies construction processes suitable for mass outdoor projects.
LED light bars are typically available in fixed sizes, such as 0.3 meters, 0.5 meters, and 1 meter, and cannot be adjusted on-site, thus offering limited adaptability to irregularly shaped installation spaces. Their unit price is also relatively high, with basic models typically starting at $40 and high-power models exceeding $300.
Differences between Linear LED Module, LED Strip, and LED Light Bar.
To help customers clearly distinguish three mainstream linear lighting products and make data-supported purchasing decisions, we conduct in-depth comparative analysis from eight core dimensions including structure design, constant current & constant voltage driving mode, thermal management performance, overall use cost, brightness and luminous efficiency, field installation mode, actual service life and applicable scenarios. All reference data comes from our past project site measurements and authoritative industry standards, including LM-80, TM-21, and IESNA, providing direct and effective decision-making references for engineering projects.
- Structure Design.
Linear LED modules adopt 1.2-2.0mm thick rigid aluminum-core PCB plus integrated extrusion heat dissipation fins, with 15-25 square centimeters effective heat dissipation area per meter, built-in quick wiring terminals and complete optical matching accessories. LED strips apply 0.3-0.5mm ultra-thin flexible circuit board without any heat dissipation structure, and the back adhesive only plays a fixing role. LED light bars take a sealed aluminum shell as the main structure with internal LED light board, realizing heat dissipation only through the external shell, resulting in poor internal heat circulation efficiency. - Constant Current & Constant Voltage Driving Mode.
Linear LED modules support three main driving schemes: constant current, constant voltage, and DOB. 350-1050mA constant current driving is applicable for laying length over 10 meters, controlling overall brightness deviation within ±5% within 50 meters. 12V/24V constant voltage driving suits short-distance arrangement and fixed-point cutting. Direct AC 100-277V models can be connected to commercial power directly without external driving power supply. LED strips only support single 12V/24V constant voltage power supply matched with PWM dimming function, lacking constant current stabilization design, which easily causes brightness attenuation due to voltage drop in long-distance wiring. Most LED light bars adopt built-in constant voltage stabilizers, and only partial high-power versions are equipped with simple constant current chips with a single applicable scene. Temperature Resistance.
Any lighting module or luminaire requires good thermal management; otherwise, hot spots will directly affect light stability and lifespan. Higintek has a dedicated page for detailed explanations of thermal management in the LED module development process. Here, we share the ideal operating temperature ranges for Linear LED Modules, LED Strips, and LED Light Bars under the same good thermal management conditions.
A well-designed linear LED module can achieve stable continuous operation for 12 hours in a temperature range of -40°C to 85°C, with an L90 lifespan exceeding 60,000 hours. LED Light Bars, due to their use of a rigid metal-based PCB, have an operating temperature range basically the same as linear LED modules. LED strips are more prone to heat buildup and accelerated aging; they can withstand outdoor temperatures up to 60°C, but a fully sealed structure would further limit their heat dissipation efficiency.
| Comparison Factor | Linear LED Module | LED Strip | LED Light Bar |
|---|---|---|---|
| Overall Structure | Rigid linear PCB module with integrated LEDs and engineered thermal layout | Flexible PCB with surface-mounted LEDs and adhesive backing | Complete lighting assembly with housing, optics, heat sink, and mounting structure |
| Typical PCB Material | Aluminum PCB or FR4 with thermal management design | Flexible copper PCB | Aluminum housing with internal PCB assembly |
| Mechanical Rigidity | Rigid structure for stable installation | Flexible and bendable | Fully enclosed rigid fixture |
| Driver Method | External driver, integrated driver, or DOB solution | Usually low-voltage constant voltage driver | External or built-in constant current driver |
| Common Input Voltage | 12V / 24V / AC DOB / customized solutions | 5V / 12V / 24V DC | AC100-277V or low-voltage DC |
| Operating Temperature Range | Typically -40°C to 85°C depending on thermal design | Typically -20°C to 60°C | Typically -40°C to 85°C |
| Thermal Management | Strong thermal dissipation through aluminum PCB or heat sink integration | Limited thermal dissipation due to flexible substrate | Excellent thermal management with dedicated heat sink housing |
| Luminous Efficacy Range | Typically 120–210 lm/W depending on LED package and drive current | Typically 70–140 lm/W | Typically 90–180 lm/W |
| Brightness Stability | High long-term lumen stability | Moderate, affected by heat buildup | High stability for long-hour operation |
| Beam Distribution | Customizable optical layout and beam angle | Wide diffuse lighting | Directional or focused lighting with optics |
| Waterproof Capability | IP20 to IP68 depending on encapsulation structure | IP20 to IP67 with silicone coating | Commonly IP65/IP67/IP68 |
| Typical Lifespan | 50,000–100,000 hours with proper thermal control | 20,000–50,000 hours | 50,000–80,000 hours |
| Maintenance Difficulty | Moderate, modular replacement possible | Easy replacement but adhesive aging can occur | Higher due to integrated fixture structure |
| Energy Efficiency | High efficiency optimized for commercial and industrial projects | Moderate efficiency for decorative lighting | High efficiency for outdoor and architectural lighting |
| Customization Flexibility | Very high customization for PCB layout, optics, voltage, connectors, and drivers | Limited mainly to length, density, and color options | Moderate customization depending on housing structure |
| Installation Method | Screws, clips, channels, magnetic fixing, or integrated assembly | Adhesive mounting or aluminum profile | Brackets, mounting rails, or fixed structural installation |
| Main Design Priority | Performance, thermal reliability, and scalable integration | Flexibility and low-cost decorative lighting | High-output durable illumination |
| Common Application Scenarios | Commercial lighting, linear fixtures, signage, office lighting, industrial systems, OEM projects | Accent lighting, retail decoration, cabinet lighting, ambient lighting | Outdoor lighting, architectural lighting, vehicle lighting, industrial lighting |
| Core Engineering Advantage | Strong balance between efficiency, thermal control, lifespan, and customization | Fast installation and flexible shaping | High brightness and environmental durability |
| Main Limitation | Requires engineered thermal and driver matching | Heat buildup reduces lifespan in demanding environments | Larger size and higher structural cost |
| Relative Product Cost | Medium | Low | Medium to high |
| Typical OEM/ODM Suitability | Excellent for engineering customization and scalable manufacturing | Moderate | Good for branded fixture projects |
| Best Fit For | B2B lighting manufacturers needing reliable modular solutions | Decorative and low-power flexible lighting | Heavy-duty indoor/outdoor lighting systems |
From a practical manufacturing and project integration perspective, these three lighting formats solve very different problems.
LED strips focus on flexibility and low installation cost, but they usually struggle with heat management and long-term lumen stability in demanding applications. LED light bars can be understood as near-finished luminaires, prioritizing durability and high-brightness illumination, especially suitable for outdoor or industrial environments, but typically increasing structural complexity and system cost.
Linear LED modules sit in the middle. In many OEM and commercial lighting projects, they provide the best balance between thermal performance, luminous efficiency, customization flexibility, and scalable production. That is why more lighting manufacturers now use linear LED modules as the core platform for office lighting, architectural systems, retail fixtures, and energy-efficient commercial products.
Can conventional linear LED modules be used directly outdoors?
Standard linear LED modules are only designed for indoor use with limited protection level. Outdoor application needs to be equipped with additional fully sealed protective shell, which will increase 30% to 50% comprehensive cost. Selecting professional high-protection LED light bars is more cost-effective for outdoor linear lighting projects.
How to correctly choose between constant current and constant voltage linear LED modules?
Select constant current linear LED modules when the laying distance is over 10 meters to ensure consistent overall brightness of the whole line. Select 12V/24V constant voltage linear LED modules within 10 meters, which support flexible on-site fixed-point cutting with stronger on-site construction adaptability.
