Dimming an LED is not the same as turning down an old incandescent bulb. An LED is a semiconductor that needs a constant, regulated current to run, so how it behaves — its brightness, and often its color temperature and color too — is set not by the lamp itself but by the driver behind it and the control signal that driver understands.
Dimming the brightness is the most common adjustment, but the same drivers and protocols often tune white light from warm to cool or mix RGB color, so dimming is one part of controlling a module’s light, not the whole of it. That is why LED dimming always depends on two things working together — the driver, and the dimming method or protocol it speaks. Get either wrong and the result is the flicker, buzz, or stunted range that gives dimmable LEDs a bad name; get both right and the light falls away smoothly to a fraction of full output. Those early problems came from wiring LEDs to dimmers built for incandescent loads; modern LED dimming technology has moved past that, delivering smooth output from full brightness down to 1% or lower.
What is the Principle of LED Light Dimming?
LED dimming works by changing the average current the driver feeds the LEDs, and there are three common principles for doing it: pulse-width (PWM) control, constant-current regulation, and grouping control. Where the driver sits — built into the light or supplied as a separate unit — then decides how the dim command actually reaches it. So the principle has two halves: how the current is controlled, and how the control signal gets to the driver.
- Pulse-width (PWM) control.
The most common principle, usually shortened to PWM. The driver turns the supply into a square wave and varies the duty cycle — the share of each cycle the current is switched on — so the average current, and the brightness, track that ratio. Because the LED still receives its full rated current during every “on” pulse, color temperature stays stable across the range, which is why PWM dominates quality dimming. - Constant-current regulation.
Also called analog or constant-current reduction, this principle leans on linear electronics to vary the size of the steady current instead of pulsing it. Lowering the current dims the light directly and silently, and the level can be set smoothly, even with a simple variable control. The trade-off is a possible slight color shift at the low end, since the LED no longer runs at its rated current. - Grouping control.
A coarser principle suited to large LED arrays: the LEDs are split into groups, and a grouping device regulates whole groups rather than every chip on its own. It needs the circuit mapped and the groups planned in advance, but it is a simple, robust way to set levels across many fixtures at once.
Built-in (integrated) driver.

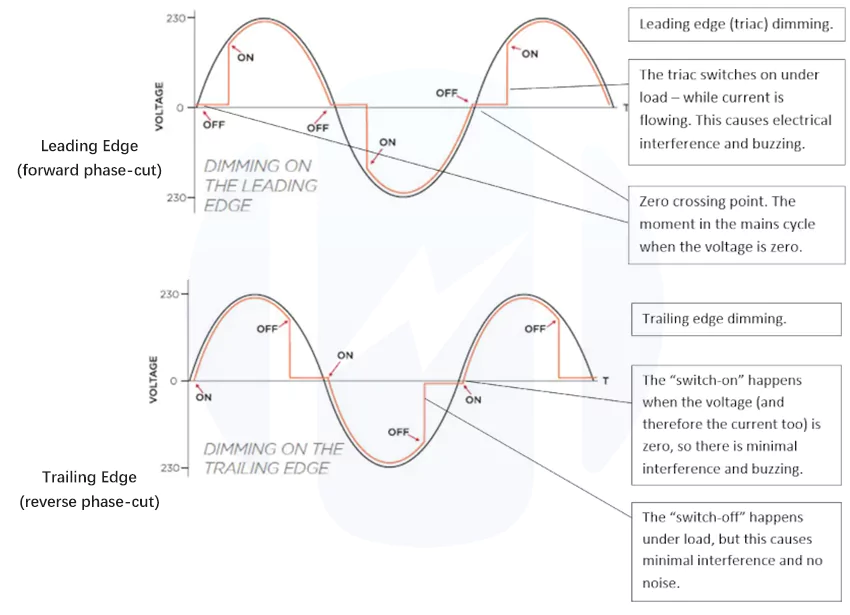

In an integrated design the driver is sealed inside the lamp or fixture, with no accessible control wires. The only way to dim it is an external wall dimmer on the AC line — usually phase-cut (TRIAC or ELV) — and the lamp itself has to be sold as “dimmable” for that to work. This is the arrangement in most retrofit bulbs and in driverless AC modules: convenient and compact, with nothing extra to wire, but limited to the dimming the lamp was built for, harder to service because a failed driver means replacing the whole unit, and warmer because the driver’s heat sits inside the fixture.

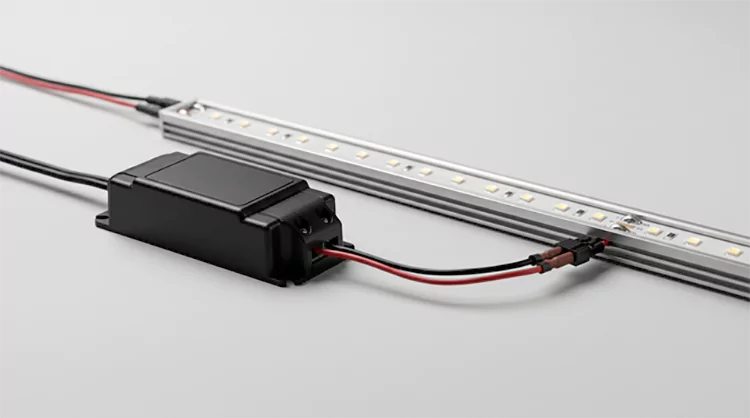

Separate (external) driver.
In a separate-driver design the dimmable LED driver is its own accessible unit between the mains and the LEDs, and it does two jobs at once: it powers the module and it reads a dimming signal to adjust output. That signal can be phase-cut on the AC line, a low-voltage analog line such as 0-10V, or a digital protocol such as DALI — so the dimming method and protocol are chosen at the driver, not fixed by the lamp. This is the standard in commercial, architectural, strip, and linear lighting: more control, deeper and smoother dimming, easier service because the driver swaps on its own, and better thermal behavior because the driver can sit where it runs cool. It is also where Higntek does most of its dimming work, matching the driver and control method to each project rather than shipping one fixed configuration.
| Aspect | Built-in (integrated) driver | Separate (external) driver |
|---|---|---|
| Where the driver sits | Sealed inside the lamp or module | Standalone, accessible unit |
| How it is dimmed | External wall dimmer on the AC line (phase-cut) | Driver reads a signal — phase-cut, 0-10V, or DALI |
| Dimming flexibility | Limited to what the lamp supports | Method and protocol chosen at the driver |
| Dimming depth | Typically ~10-100% | Down to 1%, 0.1% on premium drivers |
| Serviceability | Replace the whole unit if the driver fails | Swap the driver alone |
| Thermal | Driver heat builds inside the fixture | Driver can sit in a cooler location |
| Typical use | Retrofit bulbs, driverless AC modules | Commercial, architectural, strip, linear |
In short, the principle is the same current control in both cases, what changes is access. A built-in driver trades control for convenience, while a separate driver keeps the dimming method and protocol open — which is why most serious dimmable projects are built around an accessible dimming driver.
Why Do LEDs Need Special Dimming Methods?
LEDs need special dimming methods because they are current-driven semiconductors, not voltage-driven resistors. An incandescent bulb dims smoothly when you simply lower the voltage, but doing the same to an LED produces flicker, buzz, and sudden drop-out — which is why a dimmable LED driver, and a dimmer matched to it, are part of the design rather than an afterthought.
- Current-driven.
An incandescent or halogen bulb is a simple resistive load: lower the voltage and the filament glows proportionally dimmer, in a clean straight line. An LED is the opposite — a semiconductor whose brightness tracks current, not voltage, on a steep non-linear curve where a tiny voltage change swings the current hugely. Reducing the supply voltage therefore does not gently dim an LED; it makes the light output jump, flicker, or cut out. Brightness has to be set by controlling current instead. - Constant-current Driver.
Every LED runs behind a driver whose whole job is to hold a steady current to the chips for stable output. A basic non-dimmable driver resists any attempt to starve it of voltage, trying to maintain that current until it gives up and drops the light. Smooth dimming needs a dimmable driver designed to read a control signal and reduce current deliberately — by PWM or analog — rather than a wall dimmer simply chopping the voltage. This is exactly why a product has to be labeled “dimmable”: the difference lives in the driver, not the LED. - Low Pressure System.
LEDs also use a fraction of the power they replace — a 10W LED for a 60W incandescent — and that creates a minimum-load problem. Traditional dimmers need a certain current flowing to keep their switching element latched, so a handful of low-wattage LED fixtures can fall below that threshold and the light flickers, refuses to start, or “ghosts” with a faint glow when off. Old leading-edge triac dimmers, built for incandescent loads, also inject electrical noise that capacitive LED drivers dislike — which is why dedicated LED dimmers, usually trailing-edge and with low minimum loads, exist in the first place.
Put together, these three traits — current control, a dimmable driver, and low-load compatibility — are why LED dim technology became its own discipline rather than a carryover from halogen bulbs. Smooth and flicker-free output starts with the design of collaborative dimming of the module and its driver, which is why Higntek communicates the lamp dimming scheme with customers during the prototyping process. Fully considering the entire dimming system during the LED lighting module development stage, rather than relying on on-site installation, ensures that the lighting module meets the target dimming performance.
What are the Protocols for LED Dimming?
A dimming protocol is the digital language a control system uses to tell fixtures what to do — address them, group them, and set brightness, color, and scenes — across a network. It is not how the light physically dims; that is the driver’s job. The protocol only decides how the command travels and how much control and feedback the system has. The five that matter for LED dimming are DALI, DMX, KNX, Modbus, and the wireless protocols.
DALI
DALI, the Digital Addressable Lighting Interface, is the digital language built specifically for lighting, and its appeal is individual control. Every driver gets its own address, so any single light can be dimmed, grouped, or switched on its own. The lights also talk back, reporting faults, hours, and energy use, which makes monitoring and maintenance simple. Reconfiguring which switch or sensor runs which fixture is a software change rather than a rewire, and many DALI devices handle color temperature and full color, not just brightness. Underneath, it is the lighting-specific standard defined in IEC 62386, so certified gear from different makers works together. It runs on two polarity-free wires that carry both data and bus power. The dimming is logarithmic across 254 steps, from 0.1% at the bottom to 100% at the top, which gives smooth, natural fades that match how the eye sees light. A single line addresses up to 64 control gear and supports 16 groups and 16 scenes with two-way feedback. DALI-2 certifies sensors and controllers for cross-brand interoperability, while the D4i subset adds in-luminaire energy and diagnostic data. That combination makes DALI the default for commercial and architectural dimming where individual control and scenes matter.
DMX (DMX512)
DMX512 is the worldwide language of light shows. From a single console it gives real-time control over the intensity, color, movement, and strobe of many fixtures at once, all synchronized to within milliseconds, which is what lets one operator run a whole concert, club, or theater rig. Each function of a fixture is a separate channel, so a plain dimmer uses one channel while an RGB light or a moving head uses several, and favorite looks can be saved as scenes and cues. Under the hood it is the high-speed protocol born in stage lighting and standardized as ANSI E1.11. It streams up to 512 channels per universe over a shielded RS-485 daisy chain at 250 kbps, each channel an 8-bit value with 256 levels, refreshing the whole universe around 44 times a second. At the fixture a DMX decoder turns that channel data into the PWM that actually drives the LEDs, setting intensity and color from the values it receives. A single-color light uses one channel while an RGB fixture uses three, which is why one universe addresses up to 512 single-color or about 170 RGB fixtures, and a decoder can even add DMX control to an ordinary strip that does not support it natively. It is one-way by default, with no fault feedback unless RDM is added, and the chain needs a 120-ohm terminator and must not branch into a star. That speed and channel-level control over intensity and color are why DMX dominates entertainment, moving lights, and RGB or pixel-mapped facades rather than steady architectural dimming.
KNX
KNX is a decentralized smart-building control system, and in lighting it does far more than switch a fixture on and off. Through KNX dimming actuators and LED controllers it sets the brightness, the color temperature, and full RGB color, with colors mixed freely and levels chosen at will. Because it is one universally compatible network, the same system ties that lighting to keypads, sensors, schedules, and phone apps, so a scene can react to occupancy, daylight, or time of day, and it runs HVAC, blinds, and security on the same bus. Underneath, KNX is an open international standard (ISO/IEC 14543, EN 50090), formed in the 1990s by merging three earlier European bus systems, with certified devices from hundreds of makers sharing one decentralized bus. That bus is most often a twisted pair carrying both power and data, though powerline, RF, and IP variants exist, and it is set up with common ETS software and scales to very large installations. For the dimming itself, a KNX LED controller can drive low-voltage LEDs directly with PWM, or a KNX-to-DALI gateway can hand luminaire-level dimming to DALI while KNX handles the high-level logic.
Modbus
Modbus is an industrial communication protocol used to remotely control LED dimmers. It is a common language in the field of building and industrial automation. Its value in the lighting field is reflected in its integration. A central controller (or BMS) sends digital commands over the network to communicate with the Modbus dimming module, which then converts these instructions into specific electrical signals (such as PWM or phase cut) to adjust LED brightness.
Modbus itself is an open industrial standard, created by Modicon in 1979 and still everywhere in building and factory automation. It runs over RS-485 (Modbus RTU) or Ethernet (Modbus TCP) in a simple master-slave, register-and-coil structure that any vendor can implement freely. Because it is open and vendor-neutral, gear from different makers works together, and new devices drop onto the same wire as the building grows. In practice a lighting controller exposes registers that the management system reads and writes to set levels, which is why Modbus shows up in industrial and BMS-driven projects rather than standalone lighting jobs.
Wireless protocols
Wireless protocols let you dim and control lights with no control cabling at all, and that is their whole appeal. Because only mains power is needed and the signal travels by radio, a space can be made smart without tearing open walls, so retrofits go in fast and cheaply, often in a single day. Control then comes from a phone app, a keypad, a voice assistant, or a schedule, and occupancy or daylight sensors and scenes can be added later without pulling new wire. The radio sits inside the driver, and in a mesh each fixture relays for its neighbors, so the network self-heals and scales from a few lights to a whole building.
Zigbee (IEEE 802.15.4) and Bluetooth mesh are the mainstays. Zigbee is the proven choice for large commercial meshes but needs a hub, while Bluetooth mesh can be driven straight from a phone with no gateway. Thread adds IP-level networking and sits under the cross-ecosystem Matter standard, and Wi-Fi connects each fixture directly at the cost of higher power draw. The trade for losing the control wiring is that range, interference, and network reliability now matter as much as the dimming itself.
| Protocol | Type | Wiring | Scale / addressing | Best for |
|---|---|---|---|---|
| DALI | Digital, lighting-specific (IEC 62386) | 2-wire polarity-free bus | Up to 64 per line; groups, scenes, two-way | Commercial & architectural dimming |
| DMX512 | Digital, high-speed real-time | RS-485 daisy chain | 512 channels per universe | Stage, entertainment, RGB / pixel facades |
| KNX | Open whole-building standard | Twisted-pair bus (also IP / RF) | Thousands of devices, multi-system | Large building automation |
| Modbus | Industrial / BMS protocol | RS-485 or Ethernet (TCP) | Master-slave, BMS integration | Tying lighting into a management system |
| Wireless | Digital RF (Zigbee, BLE mesh, Thread) | None — RF mesh | Per-node addressing | Retrofit, smart buildings, no new wiring |
The thread through all five LED dimming protocols is that a protocol is the LED dimming control network, not a dimming technique: it decides who gets told what, while the driver still does the dimming underneath. Higntek builds its dimmable LED modules to the protocol a project specifies — DALI being the most common request — so the control layer the building already runs is the one the lighting answers to.

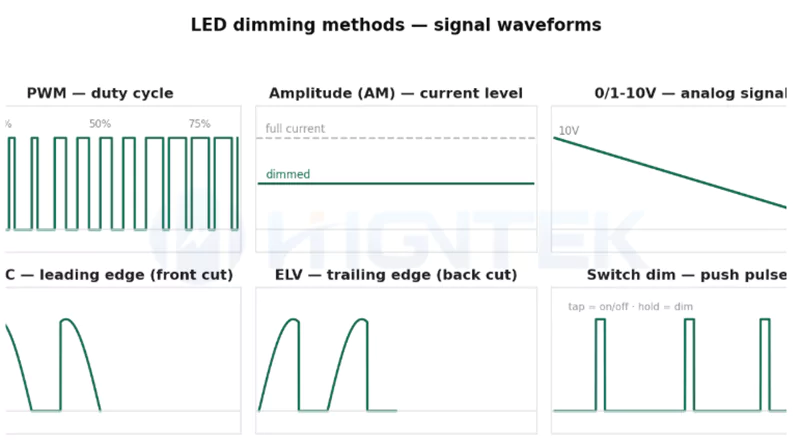

What Are the Types of LED Module Dimming Technology Methods?
Where a protocol decides how a command travels, a dimming method is how the driver actually turns that command into less light. Some methods modulate the current inside the driver (PWM and amplitude). Others are the control input the driver reads from outside — a chopped mains waveform (TRIAC, ELV), a low-voltage analog line (0-10V), a momentary switch, or a wireless signal. The seven below cover almost every dimmable LED module on the market, and they are the LED dimming methods specifiers actually choose between.
From basic phase-cut dimming to advanced control systems such as 0-10V, DALI, DMX, PWM, Switch, AM, TRIAC and smart lighting networks, each technology has its own advantages and limitations. The right choice depends on LED module design, driver compatibility, application requirements, and future control expectations.
Through our experience developing LED lighting modules, we have discovered that many dimming problems are not caused by the dimming protocol itself, but by poor system matching between the LED module, driver, control interface and application environment.
At Higntek, we look at LED dimming from a complete system perspective. Our engineering team helps customers evaluate LED module architecture, driver selection, dimming compatibility and control integration to create reliable lighting dimming solutions for commercial, industrial and specialty applications.
Whether you require high-efficiency LED modules, custom dimming solutions or optimized lighting system integration, we can support your project from design concept to volume production.
How does dimming affect LED lifespan?
Dimming generally extends or maintains LED life, because it lowers the drive current and operating temperature — the main causes of aging. Running cooler eases thermal stress on the chips and driver, so a dimmed module is under less strain than one at full output. The real risk is an incompatible dimmer or coarse low-frequency PWM, not dimming itself.
What is the difference between DALI and DALI-2?
DALI-2 is the newer, stricter version: it certifies control devices like sensors and push-buttons as well as drivers, and mandates third-party testing for cross-brand interoperability. Original DALI certified mainly the control gear and left room for vendor-specific behavior, so mixing brands was less reliable. DALI-2 is backward-compatible on the same bus and the safer pick for new projects.
